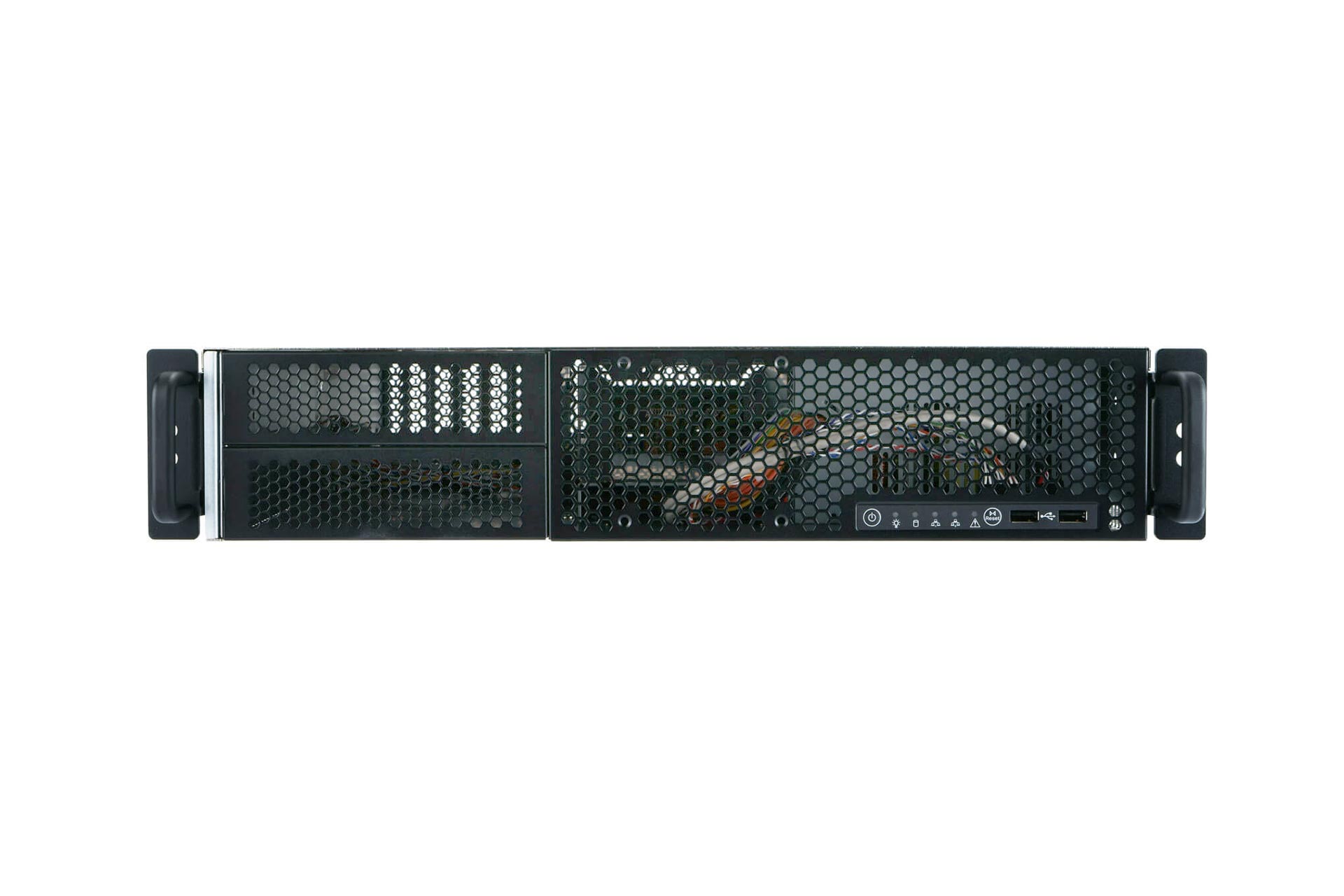

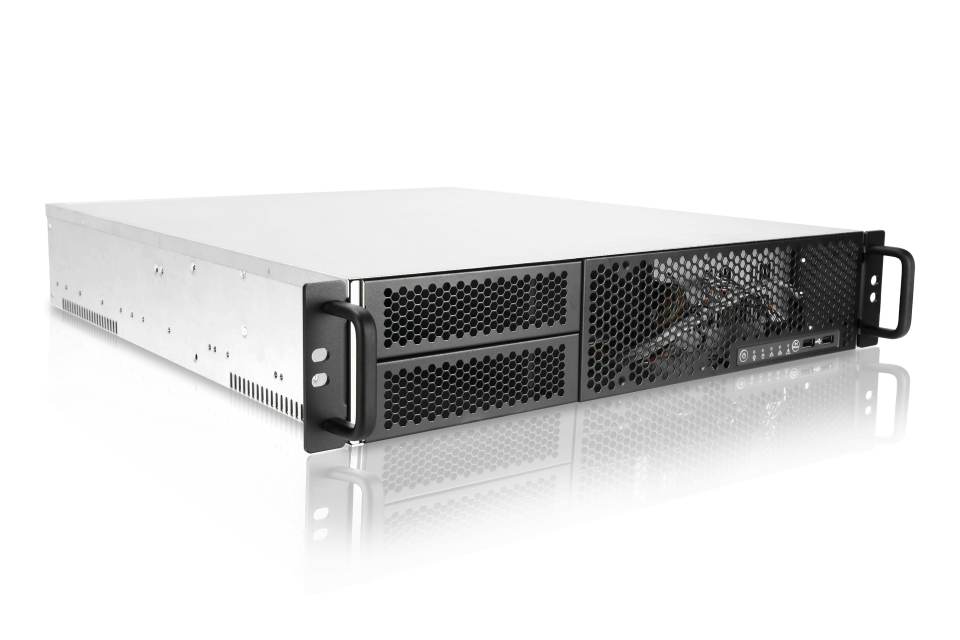

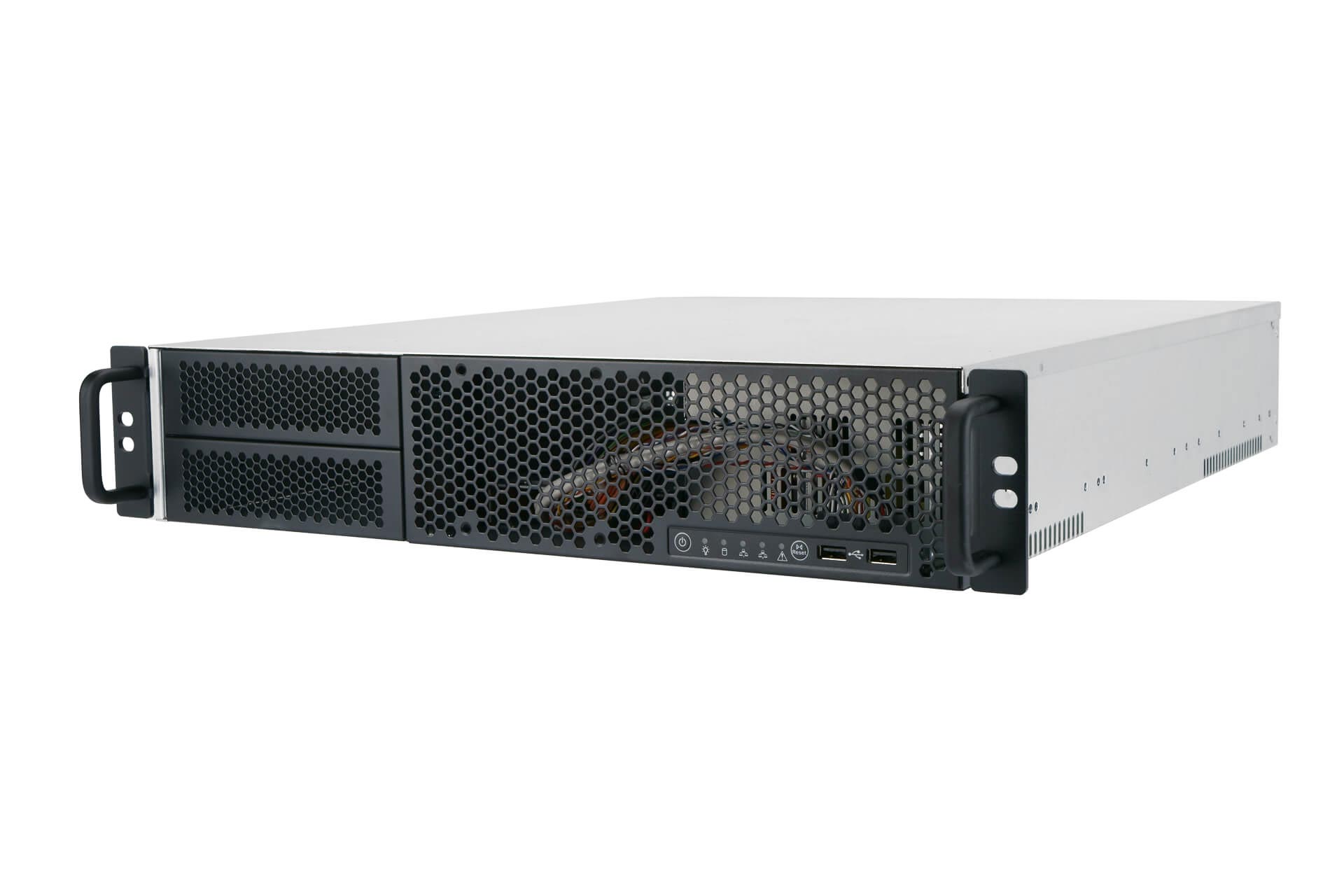

INWIN R200-02N

Open-Bay 2U Short Depth Server Chassis

．Compliance for AMD EPYC family

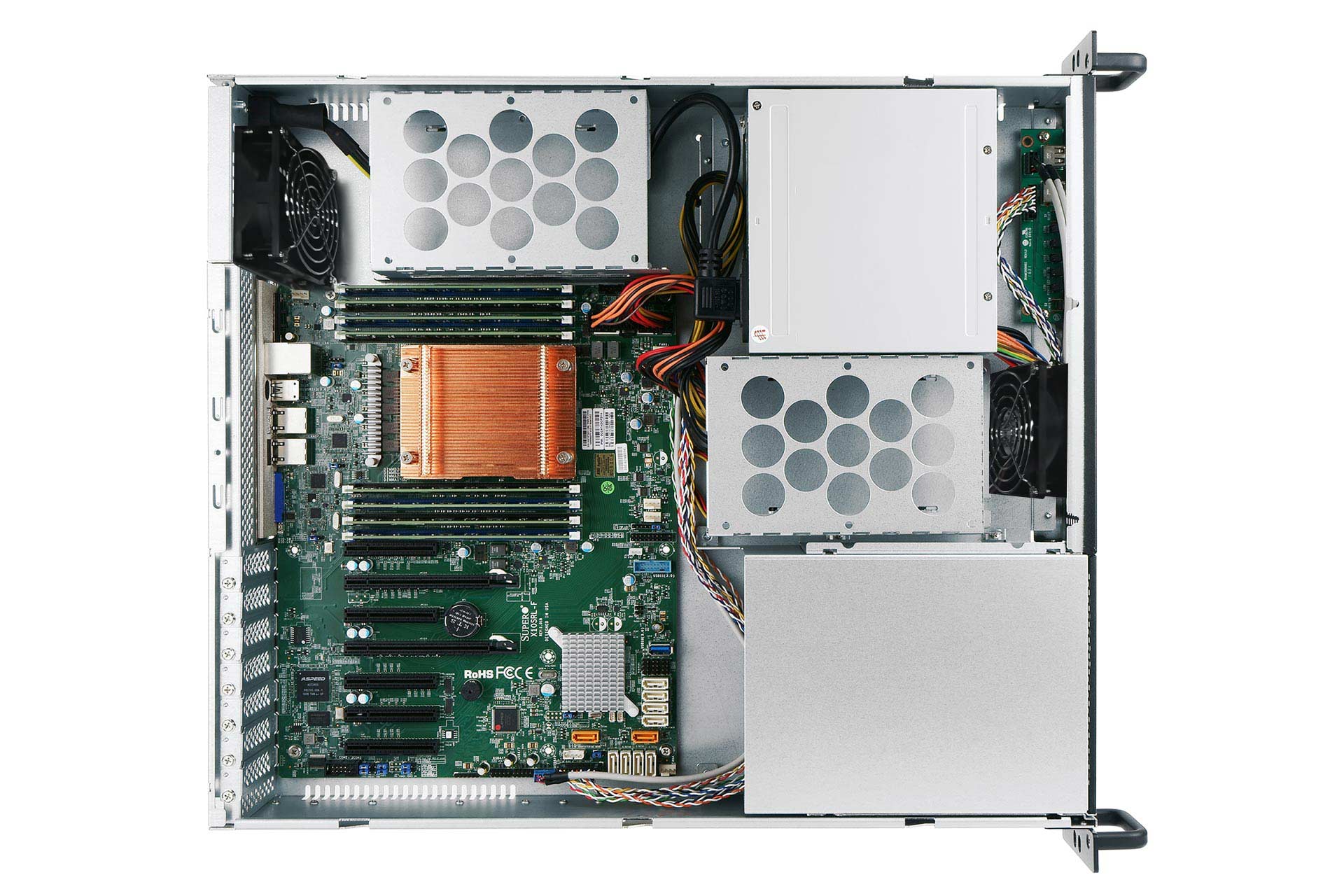

．2U rackmount supports ATX motherboard

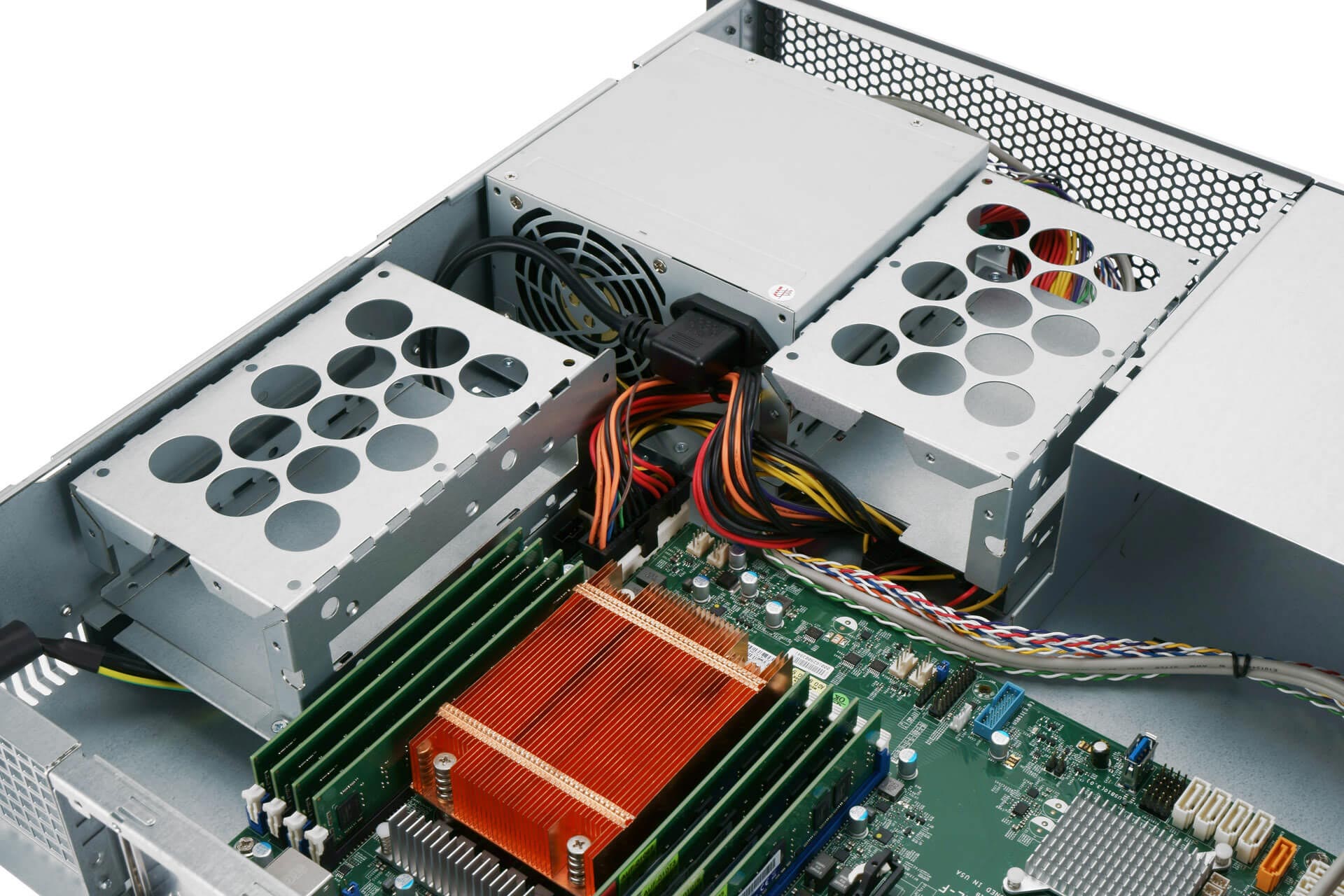

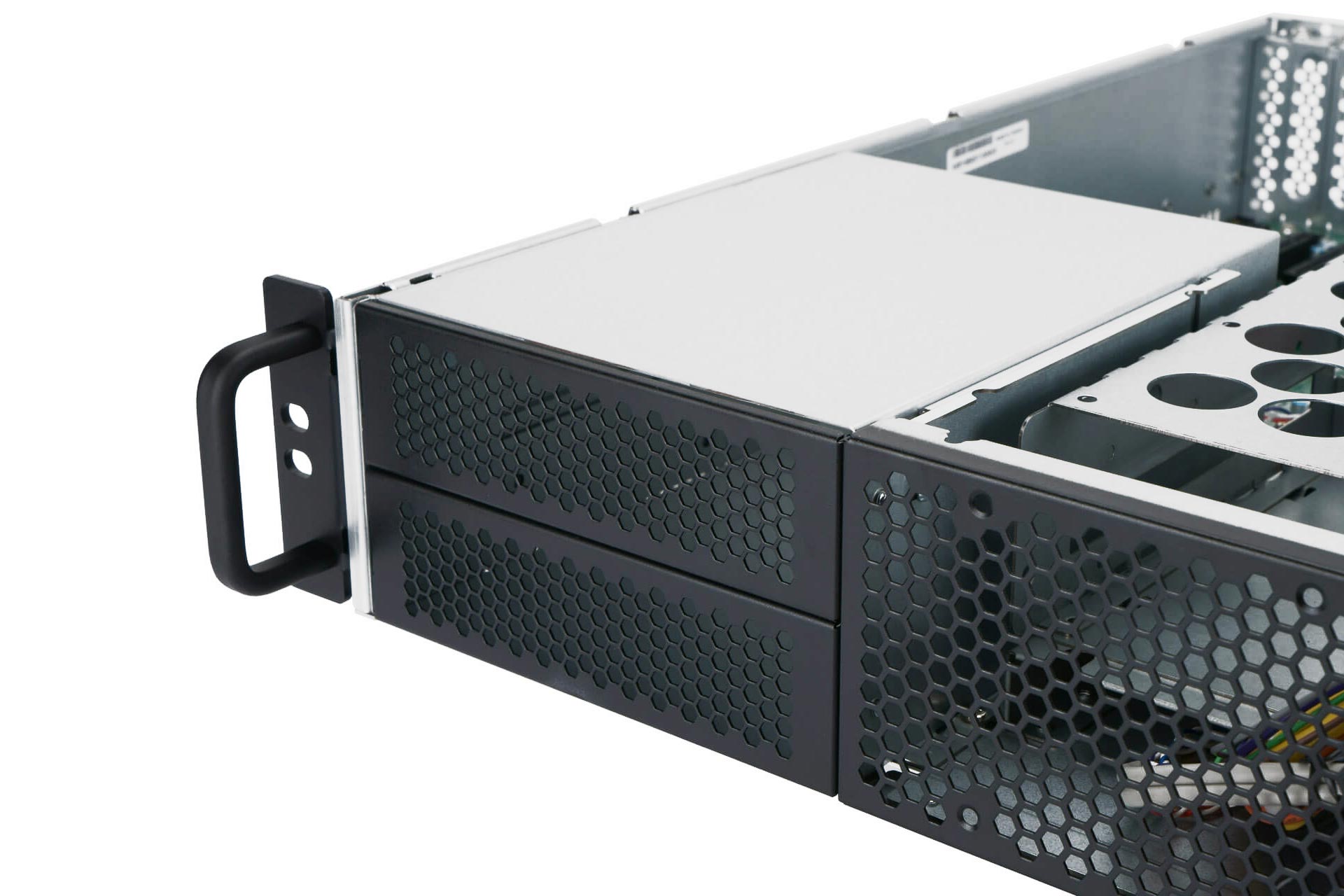

．Supporting external 5.25" x 2 and internal 3.5" HDD x 4
．Supports 80 x 25mm cooling fans x 2
．Compatible with single PSU 500W, redundant 500W or CRPS 550W/800W
．Expandable storage option with InWin storage kit
．Supporting 7 low-profile cards or optional full-height PCI slots x 3 with rear PCI card holder

Chi tiết sản phẩm
Thông số kỹ thuật

INWIN R200-02N

Features & Benefits
• Compliance for AMD EPYC family
• 2U rackmount supports ATX motherboard
• Supporting external 5.25" x 2 and internal 3.5" HDD x 4
• Supports 80 x 25mm cooling fans x 2
• Compatible with single PSU 500W, redundant 500W or CRPS 550W/800W
• Expandable storage option with InWin storage kit
• Supporting 7 low-profile cards or optional full-height PCI slots x 3 with rear PCI card holder

Optional Items:

Item	Part Number	Description	Support
Slide Rail	3RAMIS032202	20" friction slide rail	1 set
Slide Rail	3RAMIS144400	23" Slide Rail, Ball-Bearing, 600mm~914mm	1 set
Slide Rail	3RAMIS129500	28" tool-less & ball-bearing slide rails (weight capacity 35kg)	1 set
Power Supply	3RAMAP025400	1U SINGLE / 500W, Gold	1
Power Supply	3RAMAP025500	550W/800W	1
Power Supply	3RAMAP025101	550W, Platinum	1
Power Supply	3RAMAP044100	1U Single 500W, 80 Plus Gold	1
Power Supply	3RAMAP025102	CRPS 550W, 80 Plus Platinum	Max.2
Power Supply	3RAMAP025202	CRPS 800W, 80 Plus Platinum	Max.2
Power Supply	3RAMAP019900	2U 1+1 Redundant 500W, 80 Plus Silver	1
Power Supply	3RAMAP025502	PDB power cage for CRPS Max. 800W	1
Fan	3RAMFB008602	80 x 25mm, PWM, 4500RPM	2
Fan	2RAKFB003301	80*25, 4500R	Max.3
Fan	2RAKFB003401	80*25, 4500R	Max.3
Fan	2RAKIC023500	R Series 5.25" 404028mm	Max.3

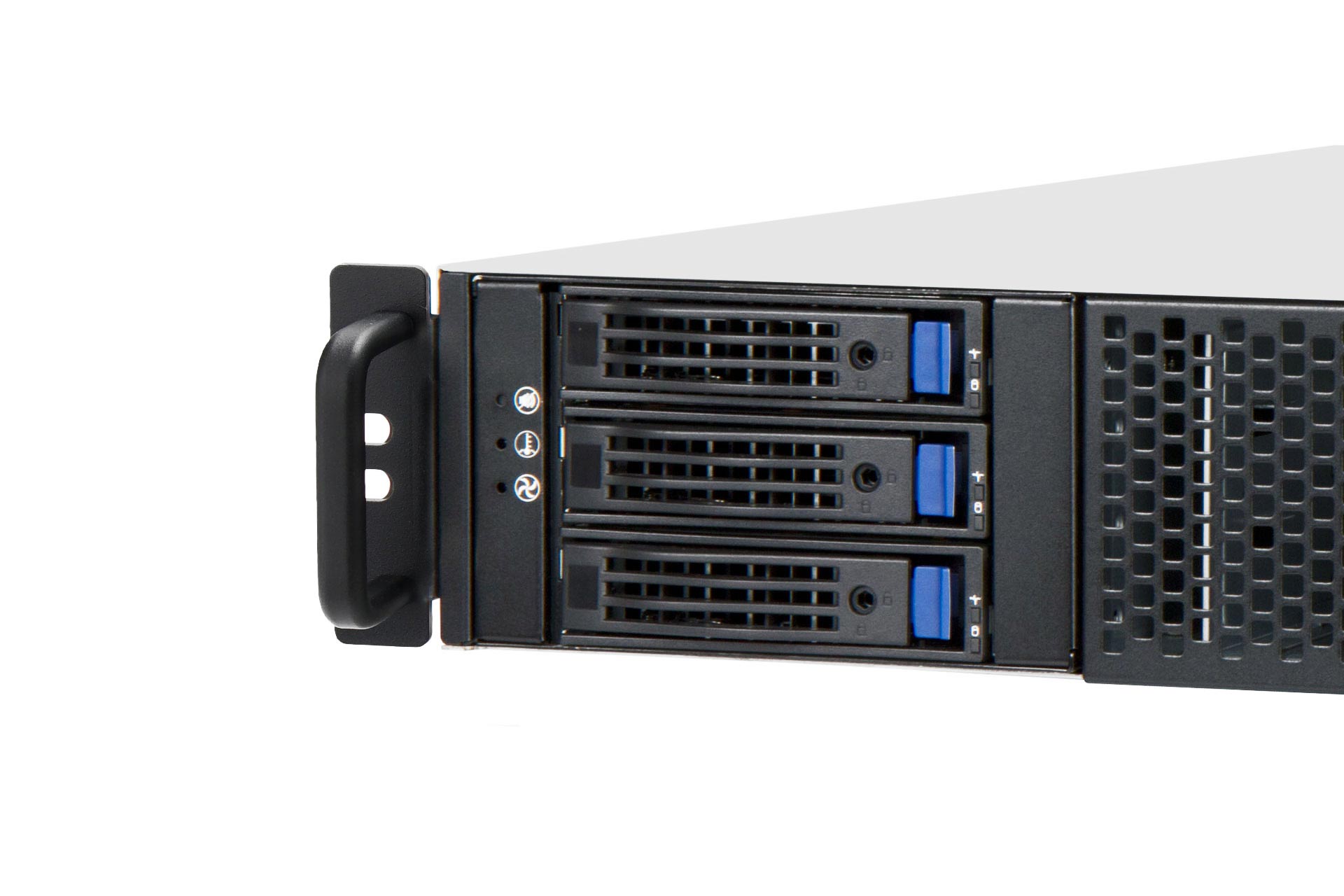

Storage Kit	2RAKID044201	IW-SK23-02, 3.5" hot-swap HDD x 3, SAS/SATA 12Gbps	1
Storage Kit	2RAKID088302	IW-SK23-07, 3.5" hot-swap HDD x 3, SAS/SATA 12Gbps	1
Others	2RAKPD046403	Front I/O USB 3.0 module	1
Others	3RAMRW011300	Intrusion switch / 800mm	1
Others	2RAKIH012700	Full-height PCI slot x 3 with rear PCI card holder	1

Industry Standard	EIA-RS310D
M/B Form Factor	ATX (12" x 9.6")
Drive Bay	• External: 5.25" x 2 • Internal: 3.5" x 4
Power Supply	Supports: • Form factor: single, 2U redundant, CRPS • Watt: single 500W, 2U redundant 550W, CRPS 550W / 800W
Indicator	Power status, HDD, LAN activity LEDs
Front Control Panel	Power switch, system reset, USB 2.0 x 2
Chassis Security	Intrusion switch (optional)
Cooling Fan	• 80 x 25mm PWM front fan x 1 • 80 x 25mm PWM rear fan x 1

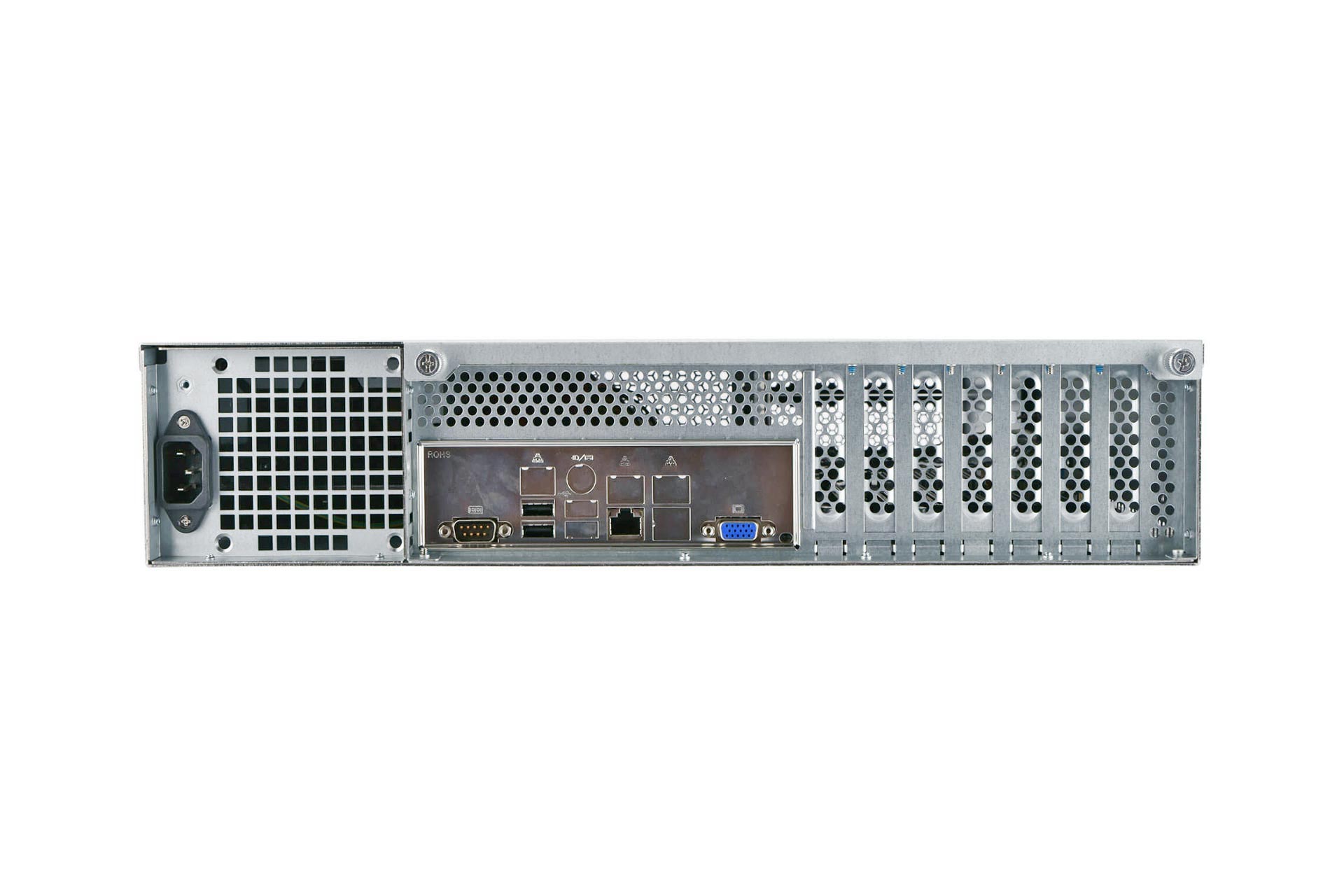

Expansion Slot	Low profile PCI slot x 7 or full-height PCI slot x 3 (via riser card)
Material	• Material: SGCC • Thickness: 1.2mm
Rail Kit	Supports 28" tool-less & ball-bearing slide rails
Product Dimensions (DxWxH; Chassis Only)	504 x 432.4 x 88mm (19.84" x 17.02" x 3.46")
Package Dimensions (DxWxH)	682 x 563 x 204mm

Weight (Chassis Only)	• Net weight: 7.18kg • Gross weight: 10.12kg
Cubic Feet	2.77
Container Information	Single packing with pallets: • 20': 270pcs • 40': 540pcs • 40' HQ: 600pcs
