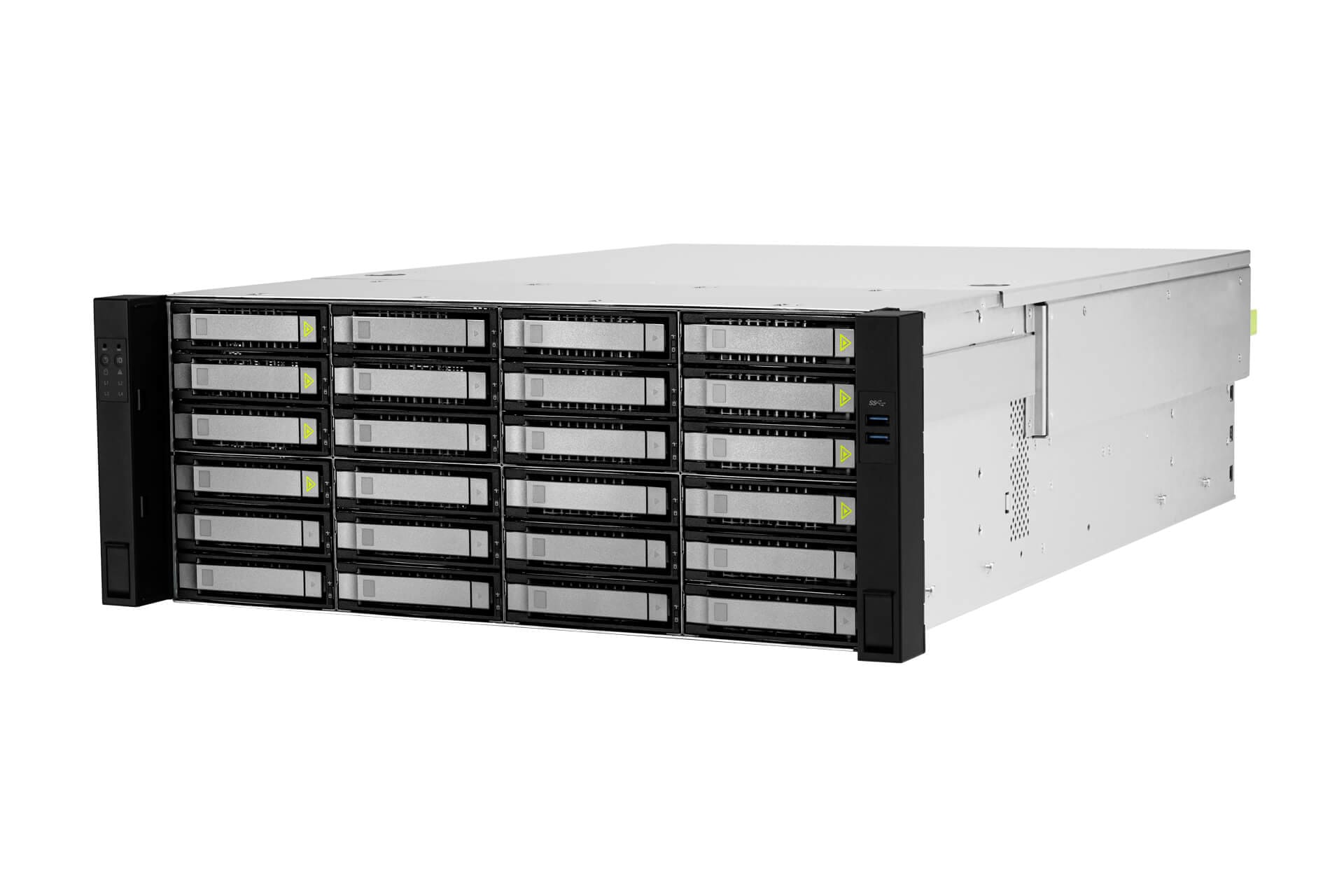

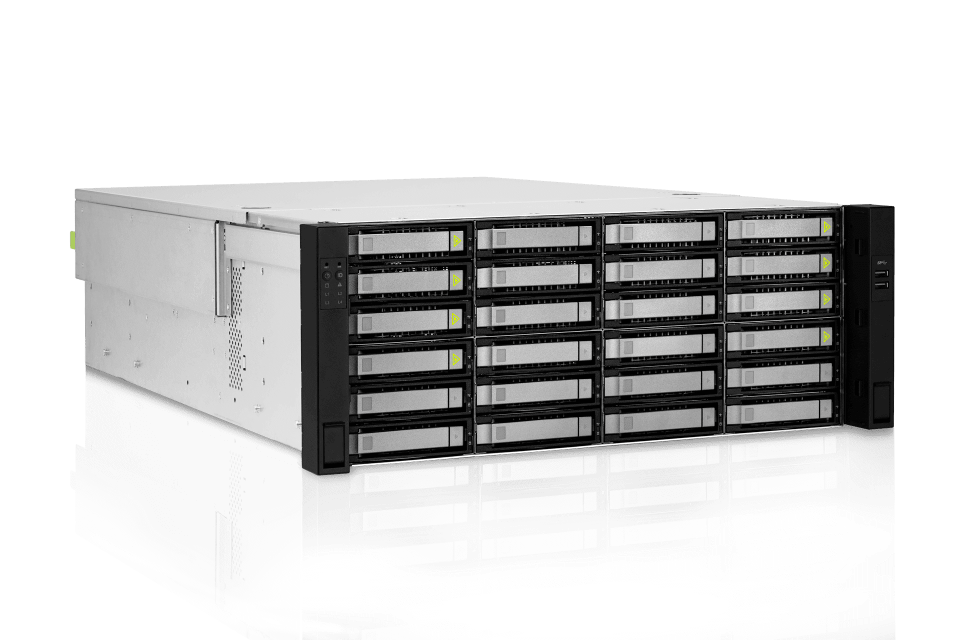

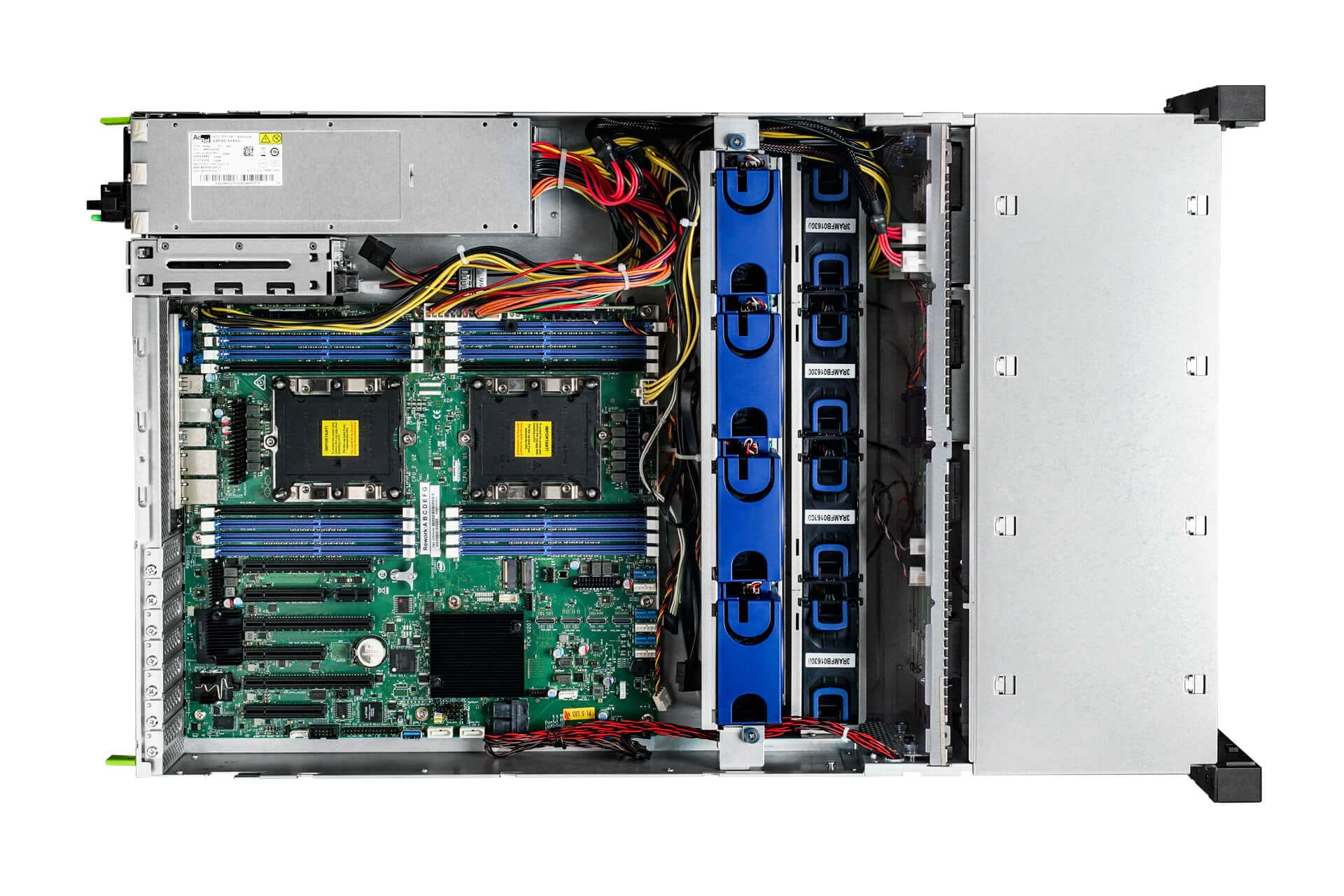

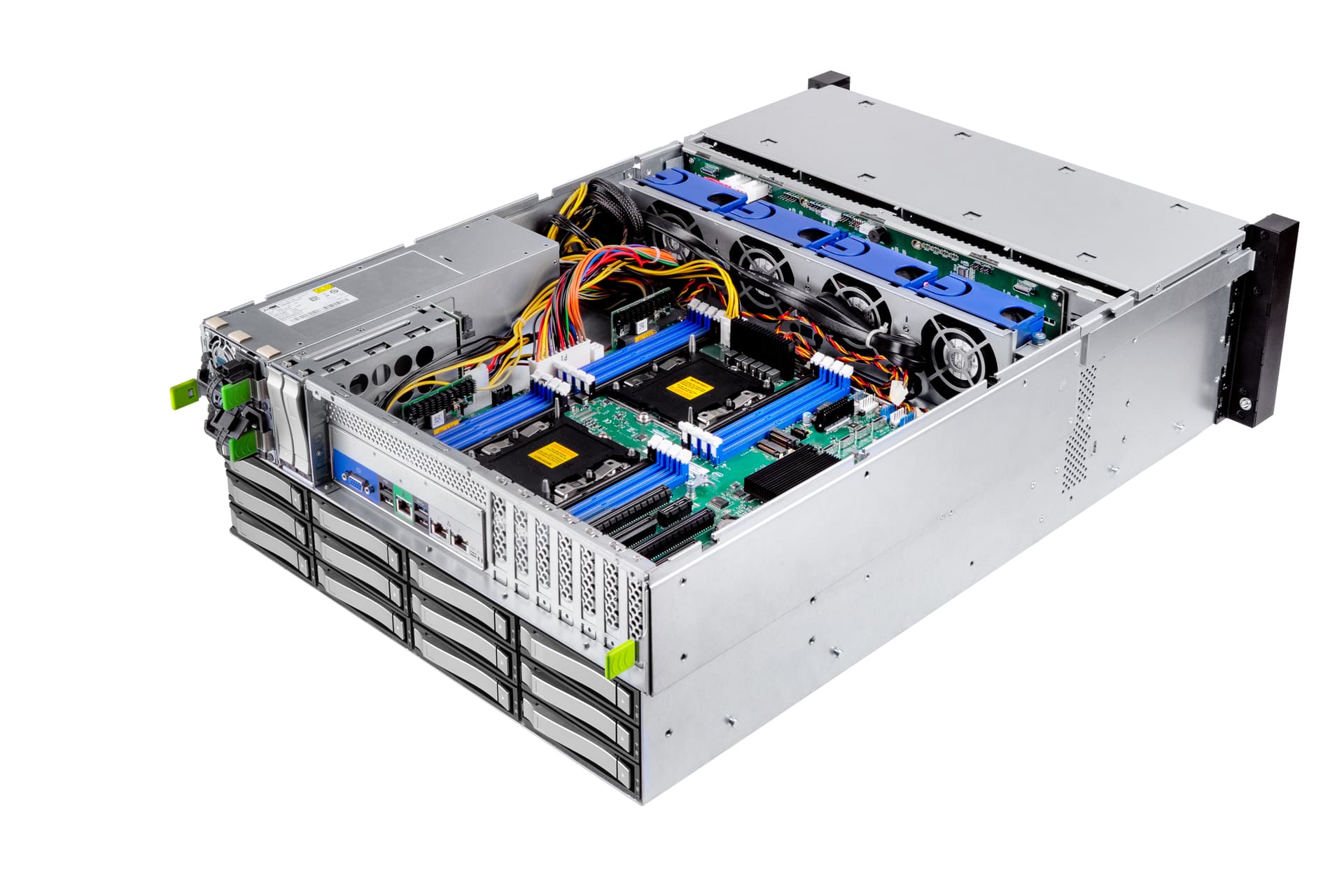

INWIN IW-RS436-07

4U NVMe Hybrid Storage Server

．Intel® Xeon Scalable & AMD EPYC family compliant
．Backplanes with Mini-SAS HD, OCuLink, or Slimline connectors (compatible with PCIe 4.0)
．End-to-end 12Gbps SAS host, expander, and disk support

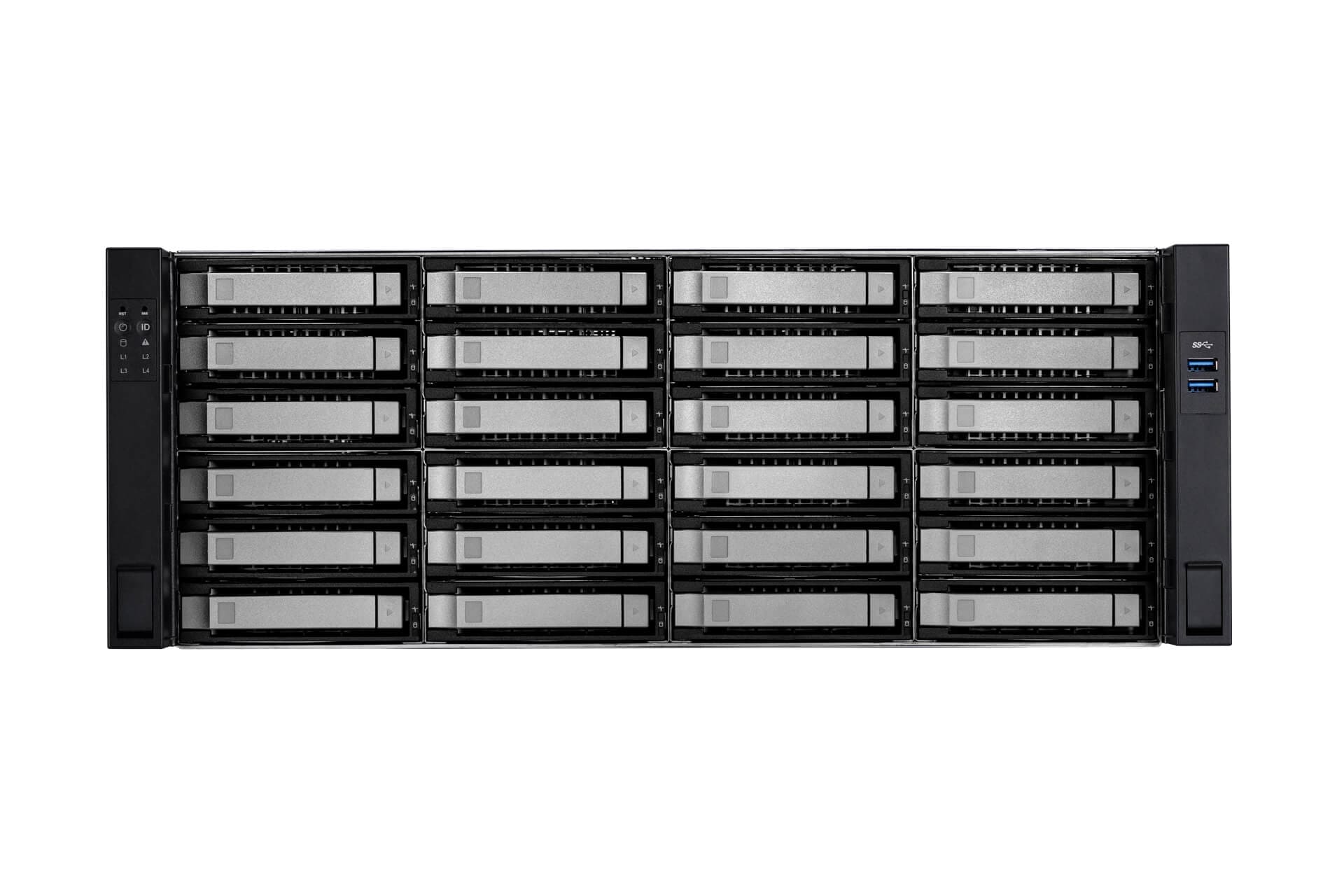

．2.5"/3.5" HDD trays x 36 (optional NVMe trays x 12, distinguishes U.2 NVMe SSDs)

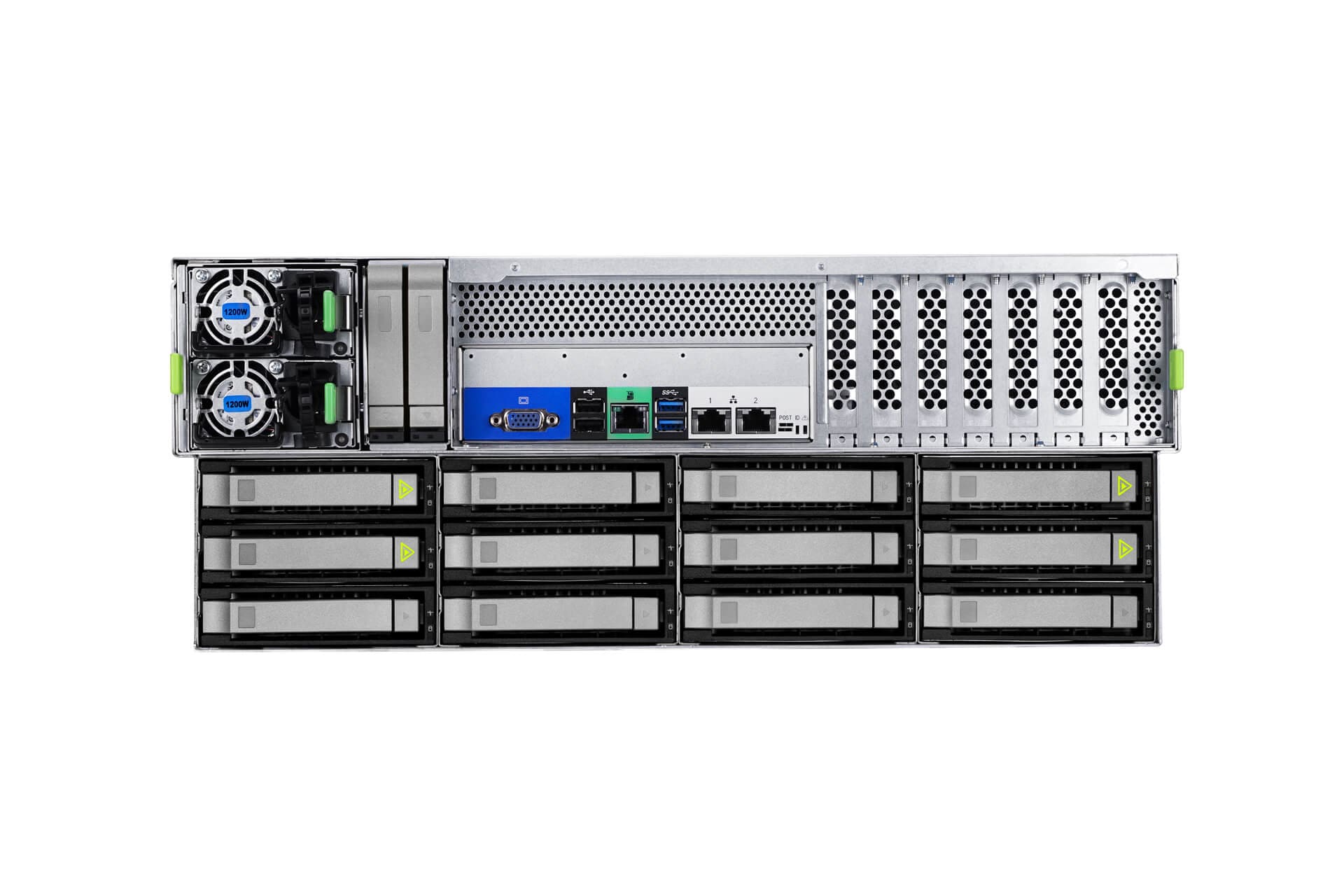

．2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis
．Highly efficient 1200W, 80 Plus® Platinum CRPS (optional)
．High-speed cooling fans for excellent thermal performance
．4U High-density drawer configuration design for space-saving

Chi tiết sản phẩm
Thông số kỹ thuật

INWIN IW-RS436-07

Features & Benefits
• Intel® Xeon Scalable & AMD EPYC family compliant
• Backplanes with Mini-SAS HD, OCuLink, or Slimline connectors (compatible with PCIe 4.0)
• End-to-end 12Gbps SAS host, expander, and disk support
• 2.5"/3.5" HDD trays x 36 (optional NVMe trays x 12, distinguishes U.2 NVMe SSDs)
• 2 x 2.5" SAS/SATA SSDs for system disks at the rear of the chassis
• Highly efficient 1200W, 80 Plus® Platinum CRPS (optional)
• High-speed cooling fans for excellent thermal performance

Optional Items:

Item	Part Number	Description	Support
Case	RS436-07_OCULINK	RS436-07 case with USB3.0, & including -- 80 x 38mm PWM hot-swap bottom fans x 4, 12000RPM -- 80 x 38mm PWM hot-swap top fans x 4, 8300RPM -- RS424-07 HYBRID OCULINK8 BP Module -- RS212-07 HYBRID OCULINK4 BP Module -- Rear 2.5" hot-swap HDD module (supports SAS 12G)	1
Slide Rail	3RAMIS152700	28" tool-less & ball-bearing slide rails (weight capacity 60kg)	1 set
Cable	3RAMW4031700	Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm	Max.6
Cable		InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/Slimline connectors requirements.	Max.12
Power Supply	3RAMAP026501	80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.)	Max. 2
Power Supply	3RAMAP039402	CRPS PDB	1
Backplane	2RBTVI009700	Mini-SAS HD & Slimline front backplane	1
Backplane	2RBTVI005500	Mini-SAS HD & OCuLink front backplane	1
Backplane	2RBTVI009500	Mini-SAS HD & Slimline rear backplane	1
Backplane	2RBTVI005300	Mini-SAS HD & OCuLink rear backplane	1
HDD Tray	2RAKPH057702	2.5"/3.5" hot-swap HDD tray (gray color)	Max. 36
HDD Tray	2RAKPH038002	2.5" /3.5" hot-swap HDD tray (black color)	Max. 36
HDD Tray	2RAKPH063701	2.5"/3.5" hot-swap HDD tray (gray color with NVMe symbol)	Max. 12
HDD Tray	2RAKPH038102	2.5"/3.5" hot-swap HDD tray (black color with NVMe symbol)	Max. 12
HDD Tray	2RAKPH057800	2.5" screwless hot-swap SSD rear tray (gray color)	Max. 2
HDD Tray	2RAKPH038200	2.5" screwless hot-swap SSD rear tray (gold color)	Max. 2
Fan	3RAMFB015400	80 x 38mm PWM hot-swap top fan, 8300RPM, 4pin	Max. 4
Fan	2RAKFB010200	80 x 38mm PWM hot-swap top fan & fan bracket, 8300RPM, 4pin	Max. 4
Fan	3RAMFB016301	80 x 38mm PWM hot-swap bottom fan, 12000RPM, 6pin	Max. 4
Fan	2RAKFB011601	80 x 38mm PWM hot-swap bottom fan & fan bracket, 12000RPM, 6pin	Max. 4

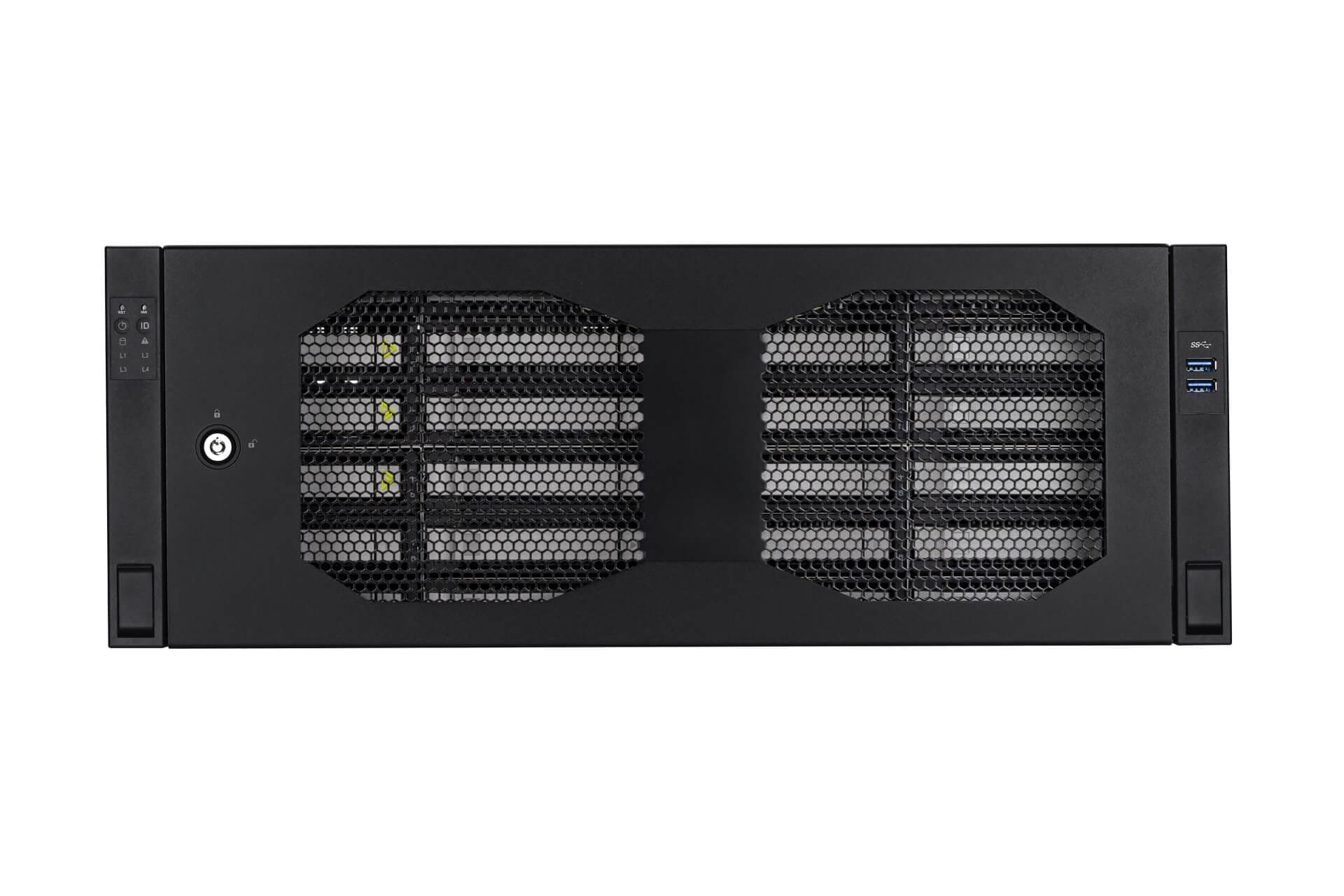

Other	2RAKIP023300	Mesh front panel	1

VDO Distributor is the official authorized distributor of InWin products in Vietnam. For corporate and project clients who want to invest and purchase InWin server products, please contact hotline 1900 0366 or email: info@vdo.vn to receive the best price.
🏢 Hanoi: Detech Tower, No. 8 Ton That Thuyet, My Dinh 2, Nam Tu Liem, Hanoi
🏢 Ho Chi Minh City: SCREC Building (Block B 10.1), 974A Truong Sa, Ward 12, District 3, Ho Chi Minh City
☎️ 1900 0366
#VDO #VDODistributor #Alwaysforyou #Luônvìbạn
#server #máychủ #giảiphápmáychủ #giảiphápmáychủ #InWin#máychủInWin

Industry Standard	EIA-RS310D
M/B Form Factor	ATX(12" x 9.6"), CEB(12" x 10.5"), EEB(12" x 13")

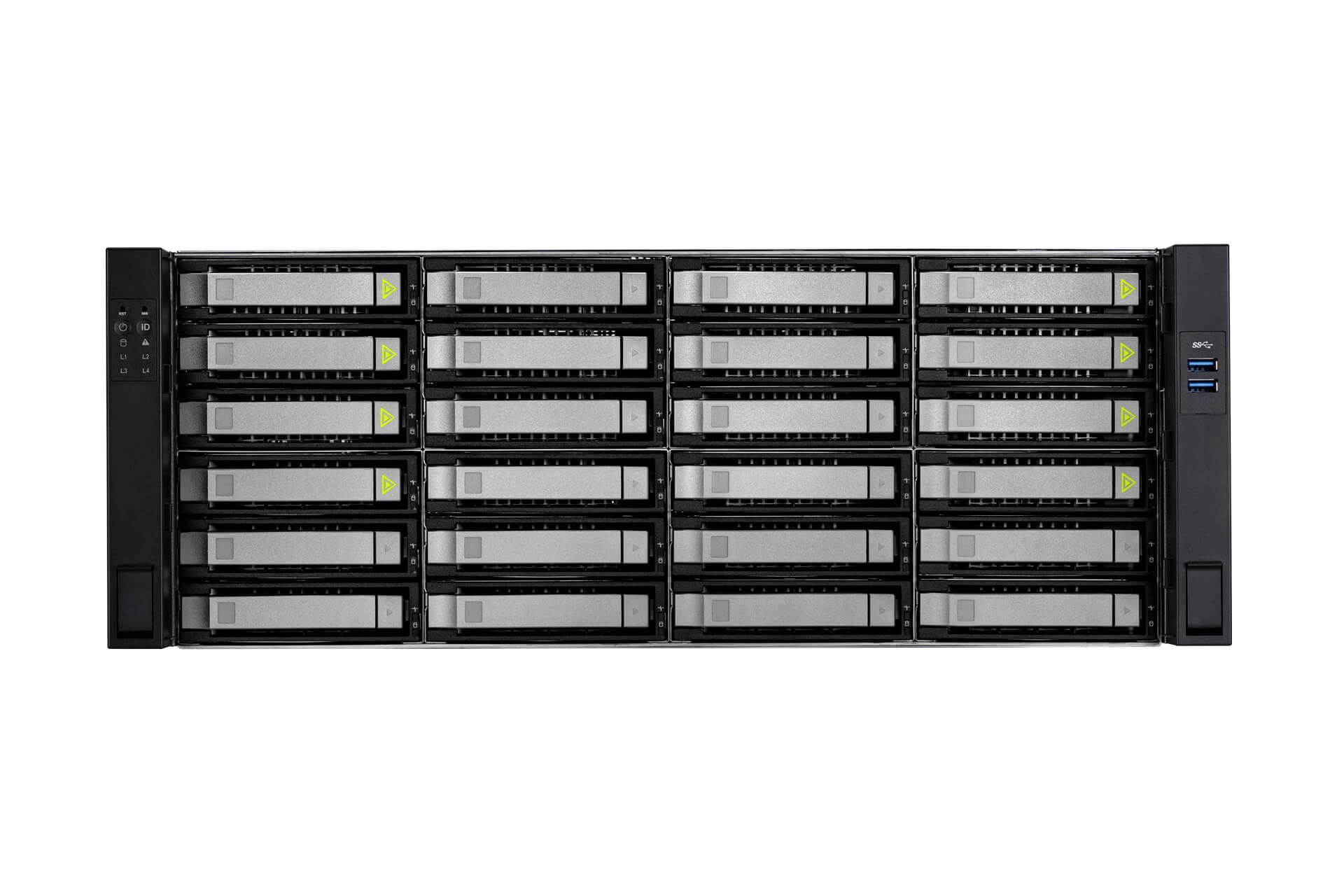

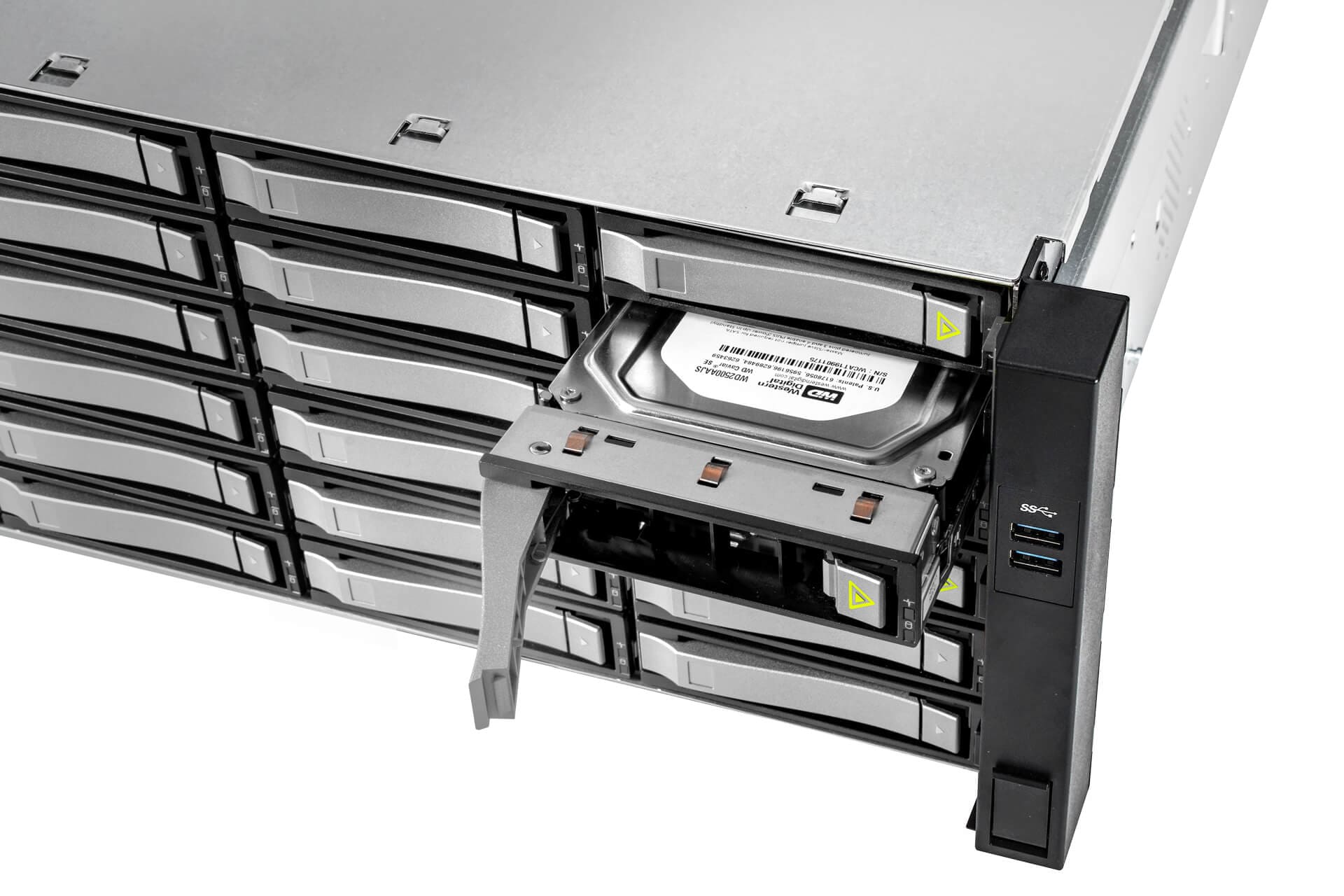

Drive Bay	• External 2.5"/3.5" hot-swap trays x 36 (optional U.2 NVMe SSD tray x 12) • Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps)

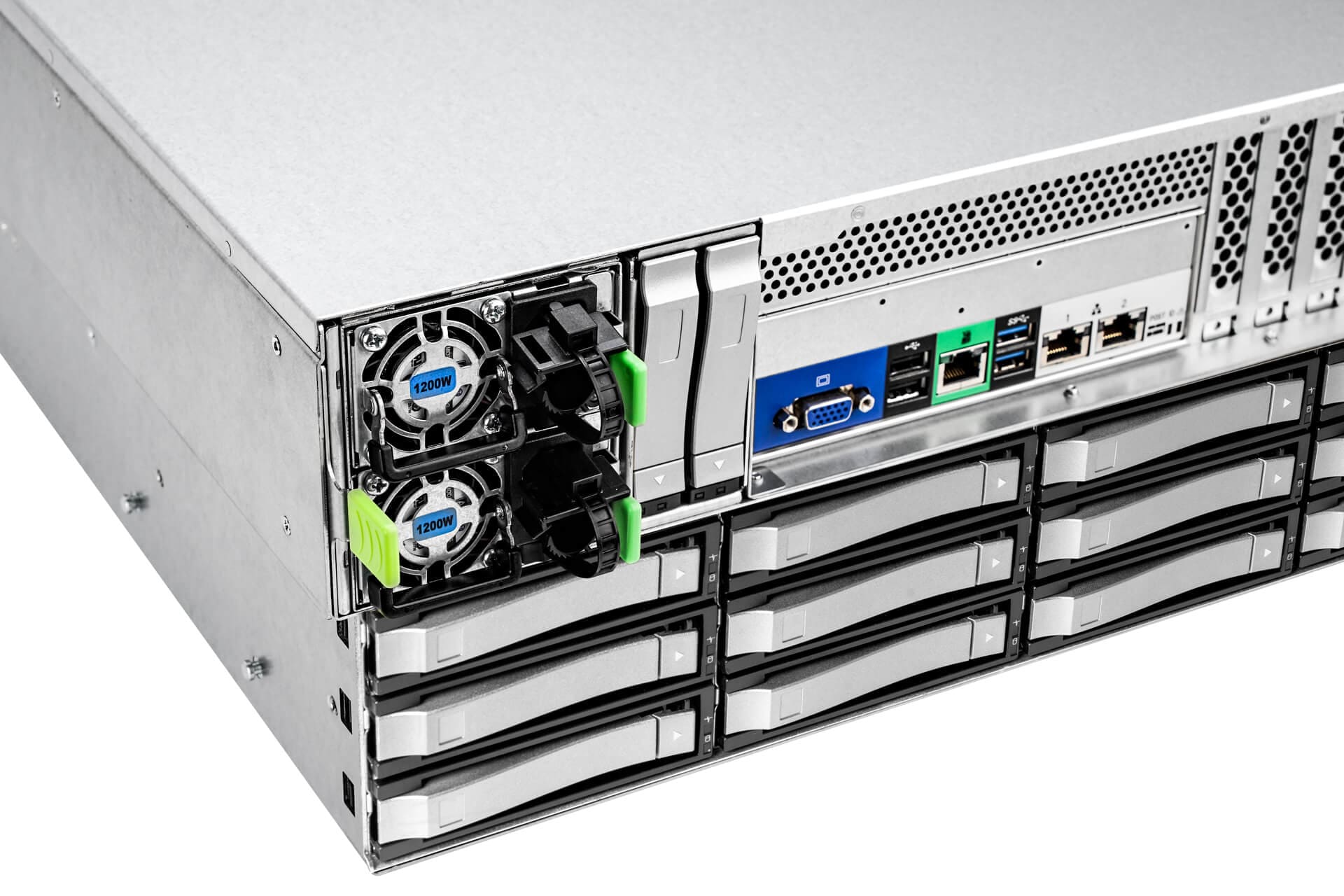

Power Supply	Supports: • Form factor: 80 Plus Platinum CRPS • Watt: 1200W
Indicator	Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED
Front Control Panel	Power on/off, reset, NMI, ID SW, USB3.0x2
Backplane Type-1	• Front host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 • Front HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 • Rear Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4 • Rear HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
Backplane Type-2	• Front Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 • Front HDD: SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8 • Rear Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4 • Rear HDD: SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
12Gbps Expander Module	Broadcom SAS 35 x 36R expander

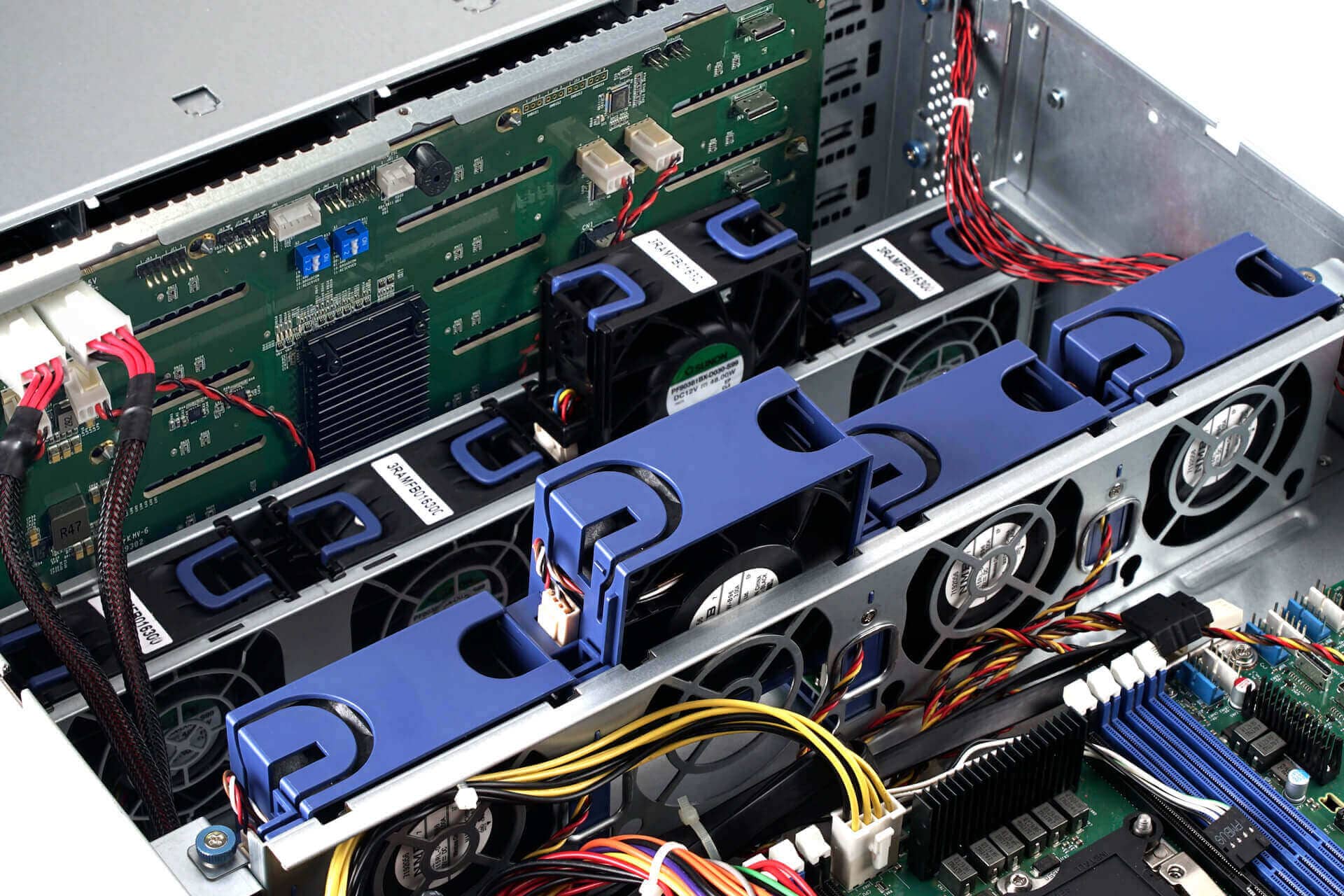

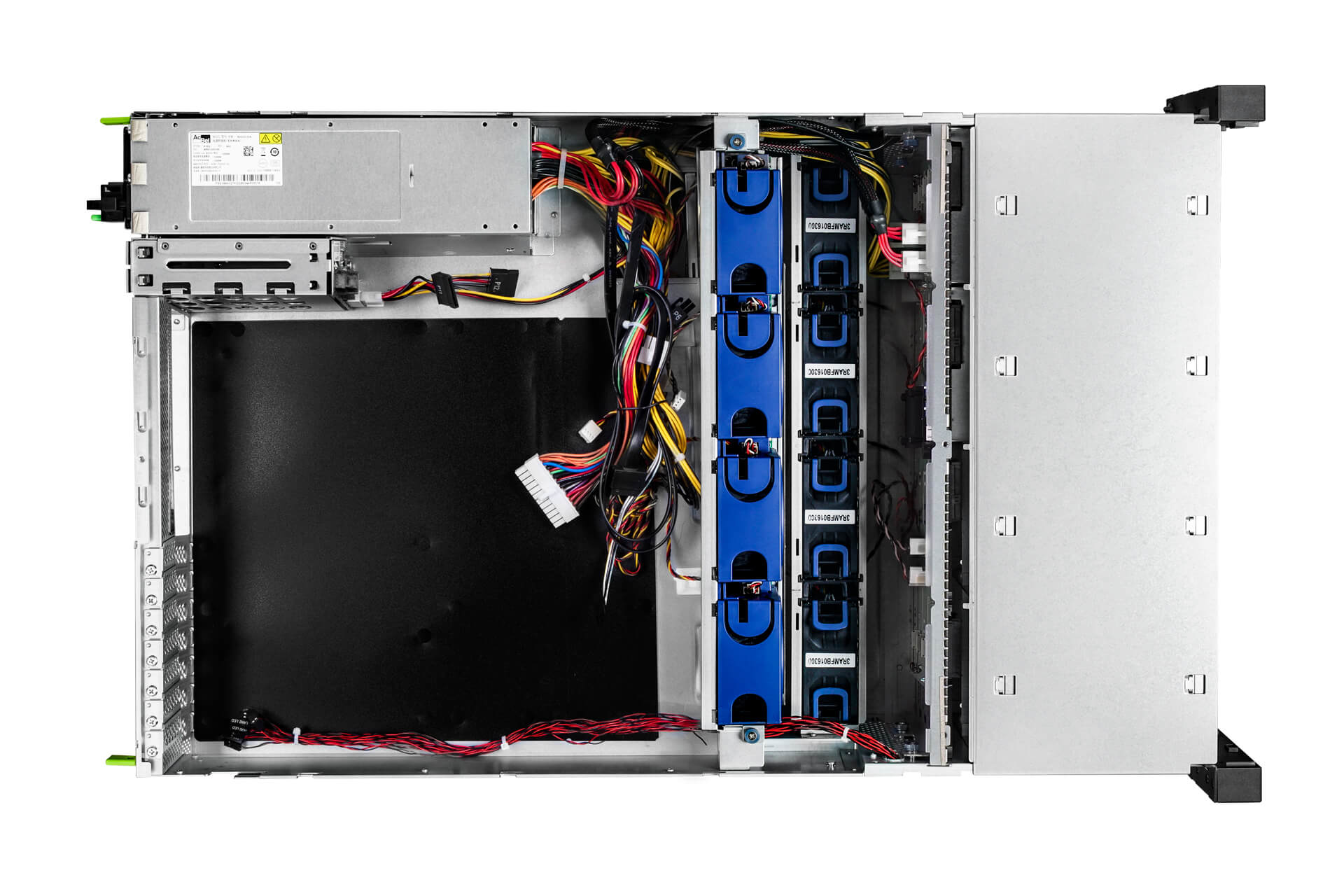

Cooling Fan	80 x 38mm PWM hot-swap top fans x 4, 8300RPM 80 x 38mm PWM hot-swap bottom fans x 4, 12000RPM Modular design with anti-vibration

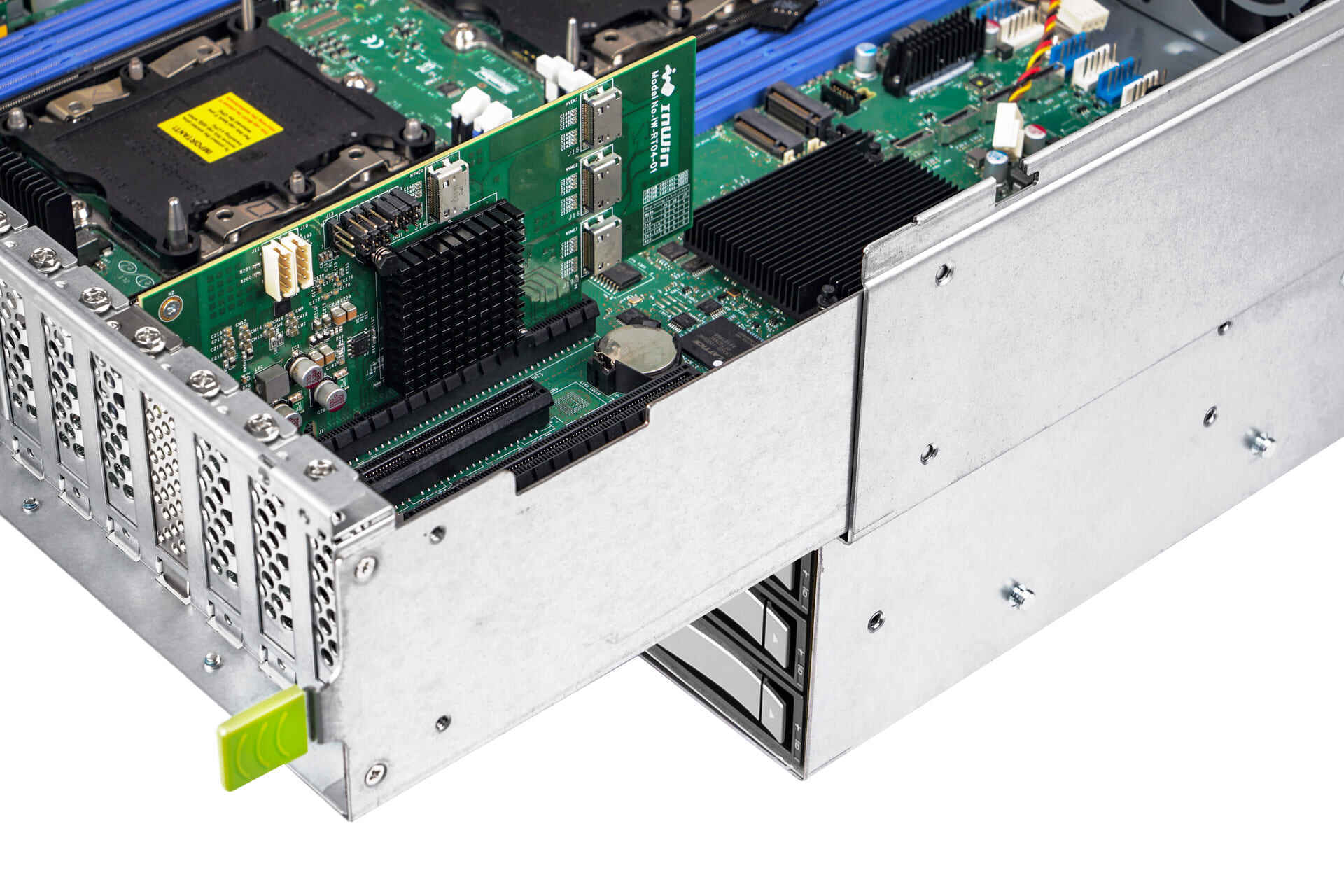

Expansion Slot	Low-profile PCI slots x 7
Material	• Material: SGCC • Thickness: 1.2mm
Rail Kit	Supports 28" ball-bearing slide rail
Product Dimensions (DxWxH; Chassis Only)	659.3 x 448.5 x 174.5mm (26" x 17.7" x 6.9")
Package Dimensions (DxWxH)	920 x 610 x 315mm
Weight (Chassis Only)	• Net weight: 26.56kg • Gross weight: 30.51kg
Cubic Feet	6.24
Container Information	Single packing with pallets: • 20': 120pcs • 40': 252pcs • 40'HQ: 294pcs

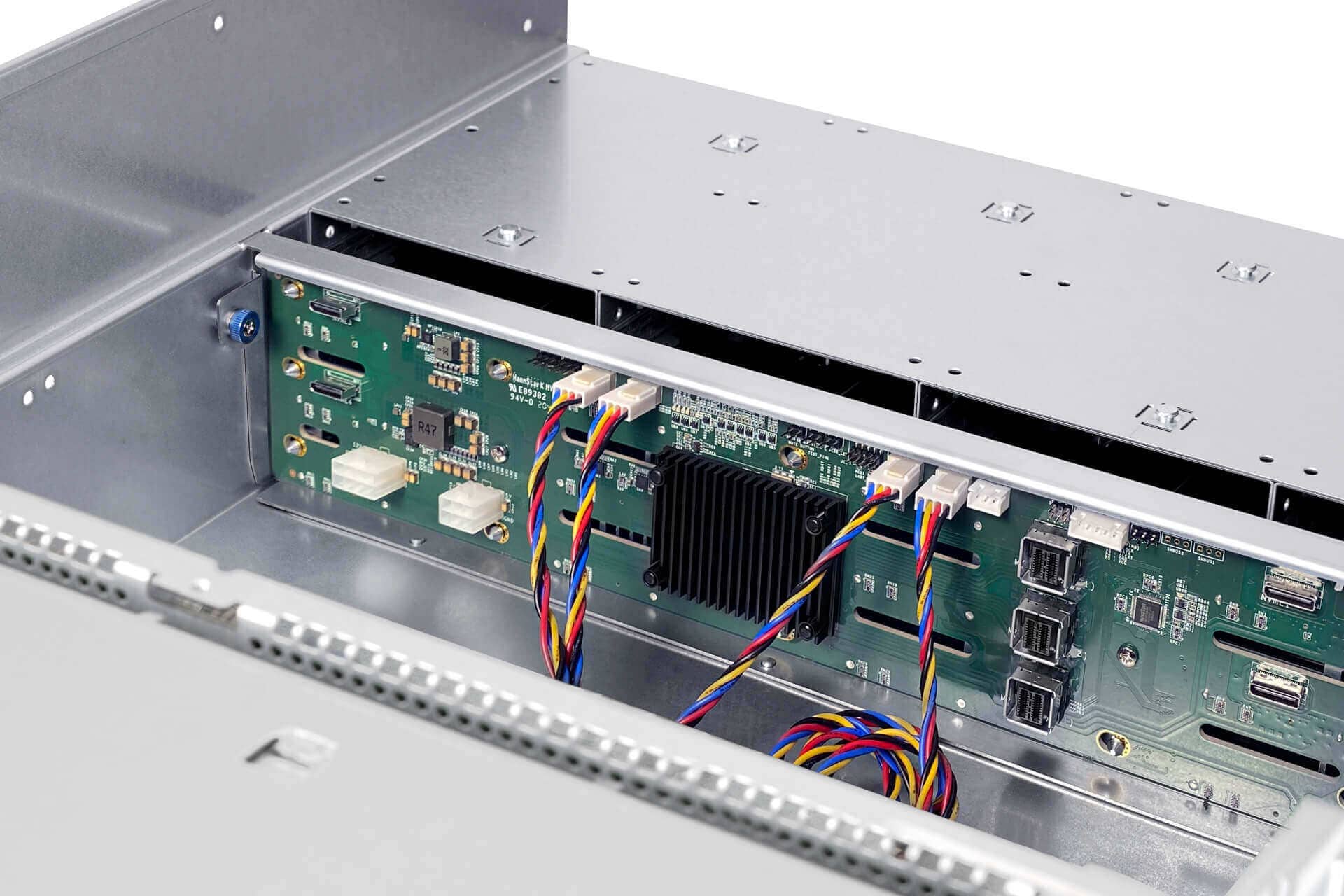

12Gbps Backplane Specifications

Front Backplane Type-1	Mini-SAS HD & Slimline front backplane
Dimension (W x H)	386 x 162mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8
HDD Interface	SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8

Rear Backplane Type-1	Mini-SAS HD & Slimline rear backplane
Dimension (W x H)	405mm x 72.3mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 4
HDD Interface	SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4

Front Backplane Type-2	Mini-SAS HD & OCuLink front backplane
Dimension (W x H)	386 x 162mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8
HDD Interface	SAS/SATA x 24 or SAS/SATA x 16 and NVMe SSD x 8

Rear Backplane Type-2	Mini-SAS HD & OCuLink rear backplane
Dimension (W x H)	405mm x 72.3mm
Backplane Type	Active with expander onboard
Host Interface	Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 4
HDD Interface	SAS/SATA x 12 or SAS/SATA x 8 and NVMe SSD x 4
