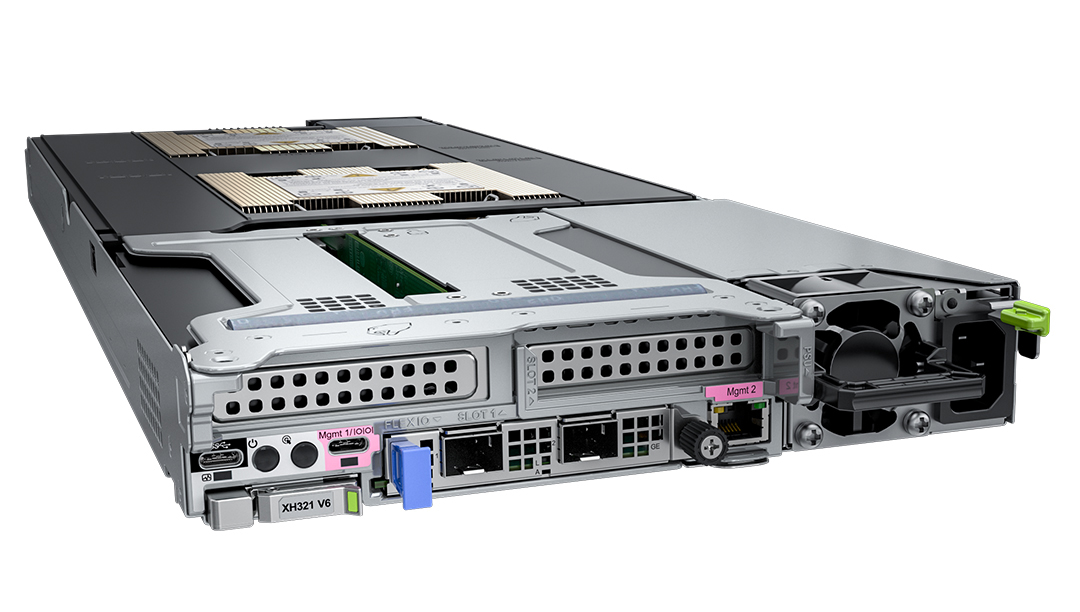

FusionServer XH321 V6

Form: 1U half-width, 2-socket
CPU: 1/2× Intel® Xeon® Scalable Gen3 (6300/8300, 270W)
Memory: 16 DDR4 DIMMs, max 2TB, 3200 MT/s
Storage: Tối đa 6× 2.5" SAS/SATA/SSD/NVMe + 2× M.2 SATA SSD
RAID: 0,1,5,6,10,50,60 (hỗ trợ bảo vệ điện)
PCIe: 2× PCIe 4.0 x16 + 1 OCP slot
Management: BMC (Redfish, SNMP, IPMI 2.0), remote KVM, FusionDirector
Security: TPM 2.0, secure boot, password, panel bảo mật
OS: Windows Server, RHEL, SUSE, CentOS, XenServer, VMware ESXi
Kích thước: 40.7 × 218.7 × 632 mm

Chi tiết sản phẩm
Thông số kỹ thuật

Model

Form

1U half-width 2-socket server node

Processor

1/2 third-generation Intel^® Xeon^® Scalable processor (6300/8300 series) with 270 W TDP per processor

Memory Slots

16 DDR4 DIMM slots, up to 3200 MT/s, up to 2 TB memory capacity (configured with 128 GB memory)

Local Storage

A maximum of six 2.5-inch SAS/SATA/SSD/NVMe drives, and NVMe 2+4 balance

Up to two M.2 2280 or 2242 SATA SSDs

Hybrid configuration of different drive types

RAID

RAID 0, 1, 5, 6, 10, 50, 60, and supercapacitor power failure protection

RAID 0 and 1 for M.2 SSDs

PCIe

2 standard PCIe 4.0×16 half-height half-length expansion slots

OCP

1 OCP expansion slot

Management

· The BMC chip integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

· The BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. CD-free deployment and agentless features simplify management.

· Aggregates four compute nodes to any node management interface, simplifying management.

· FusionDirector management software is optional. It provides advanced management features, such as stateless computing, batch OS deployment, and automatic firmware upgrade, implementing intelligent and automatic management throughout the lifecycle.

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi

Security Features

Such as power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection

Operating Temperature

5°C to 45°C (41°F to 113°F)

Certifications

CE、UL、FCC、CCC、RoHS etc

Dimensions (H x W x D)

40.7 mm x 218.7 mm x 632 mm (1.60 in. x 8.61 in. x 24.88 in.)
