GIGABYTE XH23-VG0-AAJ1

Stepping Further into the Era of AI and GPU-Accelerated HPC

Moving beyond pure CPU applications, the NVIDIA GH200 Grace Hopper Superchip is built on a combination of an NVIDIA Grace™ CPU and an NVIDIA H100 Tensor Core GPU for giant-scale AI and HPC applications. Utilizing the same NVIDIA^® NVLink^®-C2C technology, combining the heart of computing on a single superchip, forming the most powerful computational module. The coherent memory design leverages both high-speed HBM3 or HBM3e GPU memory and the large-storage LPDDR5X CPU memory. The superchip also inherits the capability of scaling out with InfiniBand networking by adopting NVIDIA BlueField^®-3 DPUs or NICs, forming a system connected with a speed of 100GB/s for ML and HPC workloads. The upcoming NVIDIA GH200 NVL32 can further improve deep learning and HPC workloads by connecting up to 32 superchips through the NVLink Switch System, a system built on NVLink switches with 900GB/s bandwidth between any two superchips, making the most use of the powerful computing chips and extended GPU memory.

NVIDIA GH200 Grace Hopper Superchip

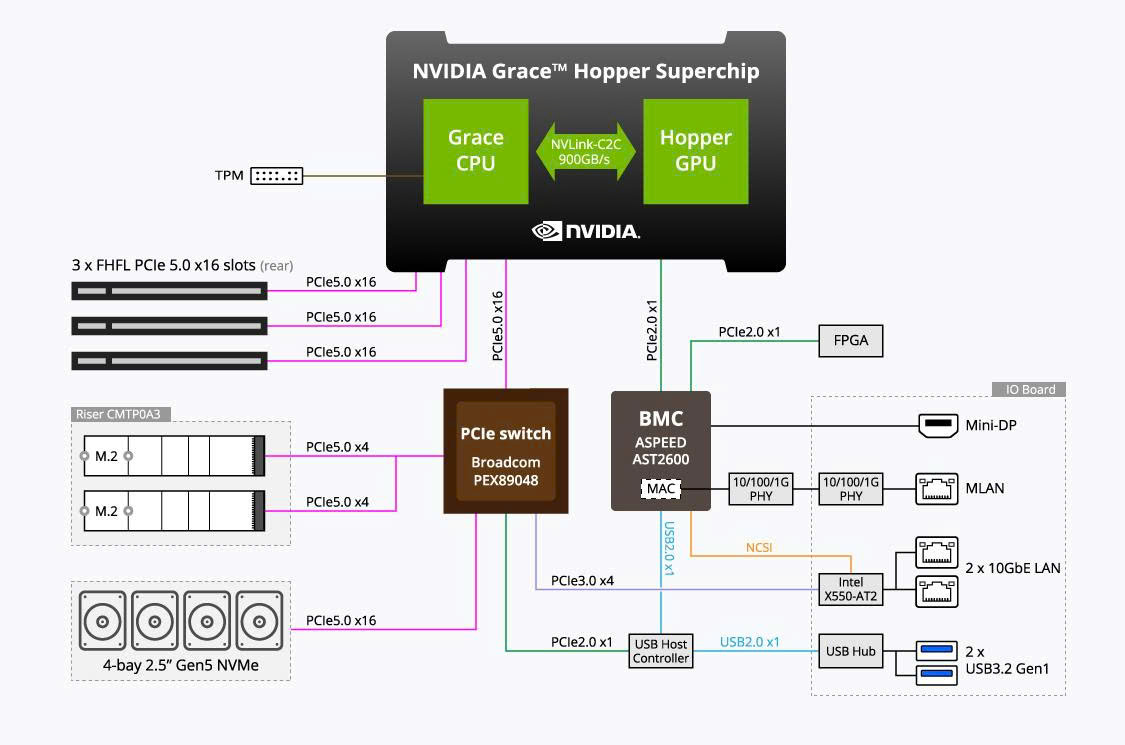

XH23-VG0-AAJ1 Block Diagram

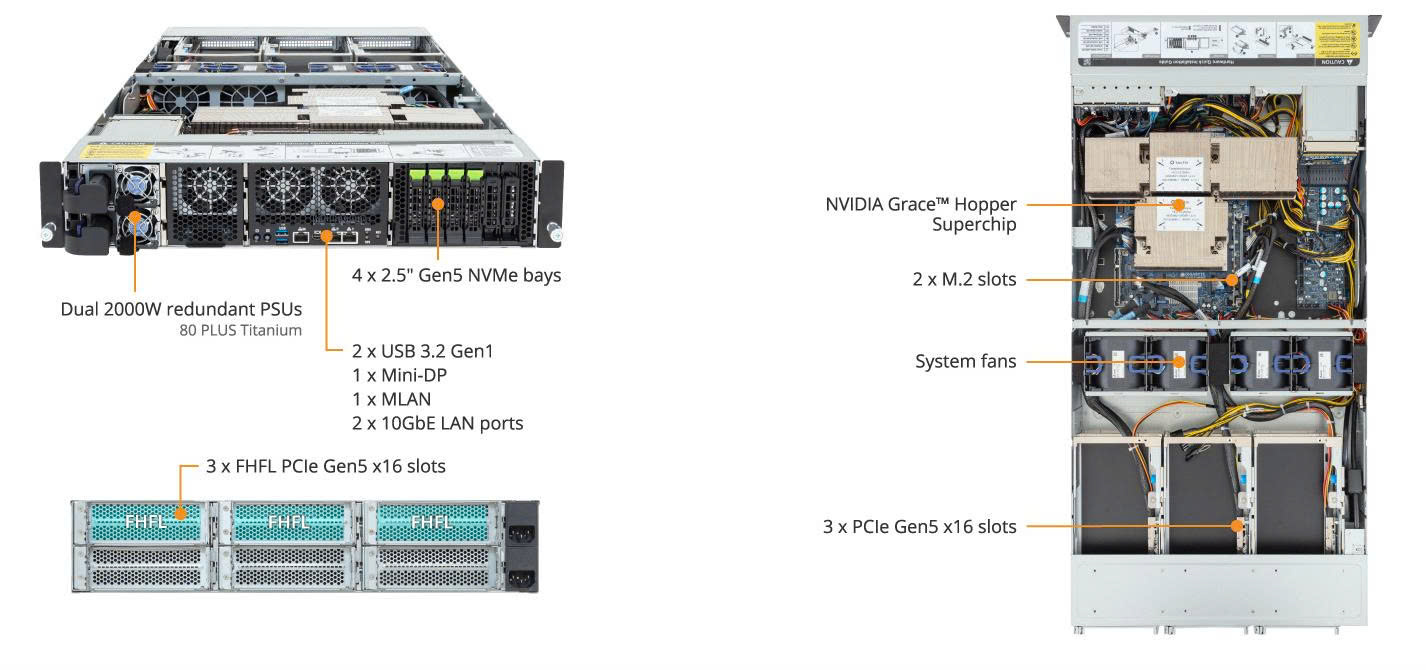

XH23-VG0-AAJ1 Product Overview

NVIDIA-Certified Systems™

Today's enterprise IT computing infrastructure requires performance, reliability, and scalability to deliver cutting-edge products and services while improving operational efficiency. GIGABYTE servers not only support NVIDIA accelerators, but also are certified by NVIDIA-Certified Systems™ to perform modern accelerated workloads in data centers and edge systems where security matters, giving users confidence when deploying solutions with GIGABYTE servers and NVIDIA products.

Power Efficiency

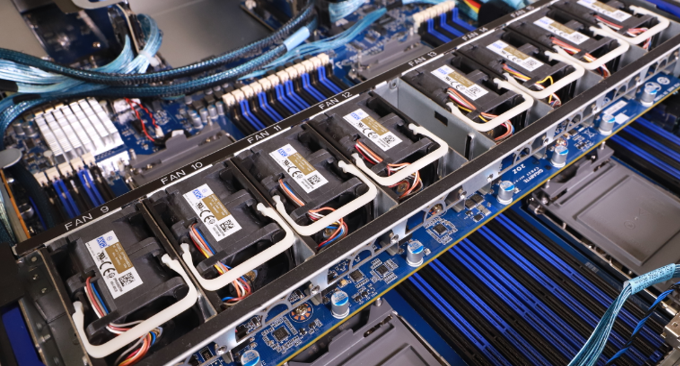

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

High Availability

Smart Ride Through (SmaRT)

To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.

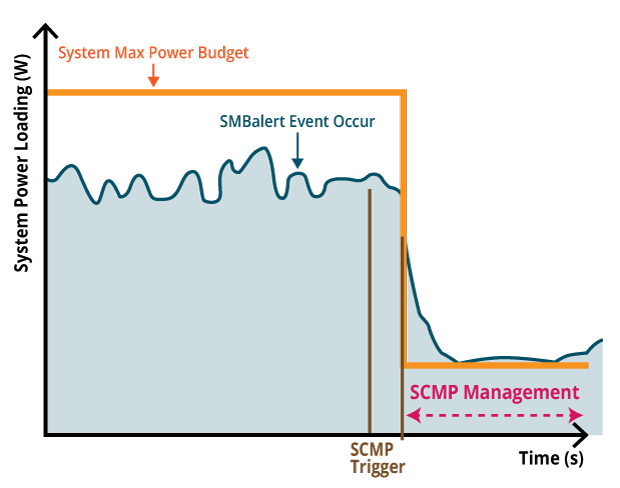

Smart Crises Management and Protection (SCMP)

SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.

Hardware Security

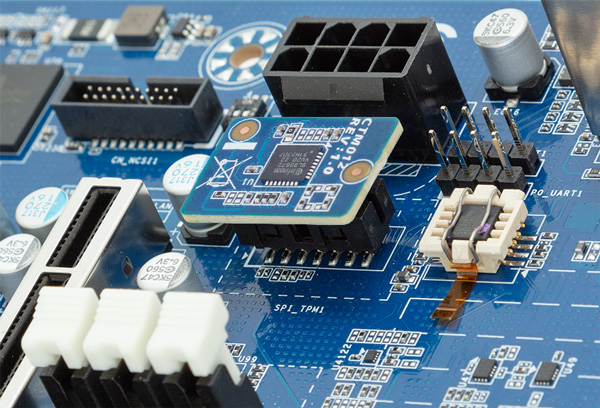

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

User Friendly

Tool-less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

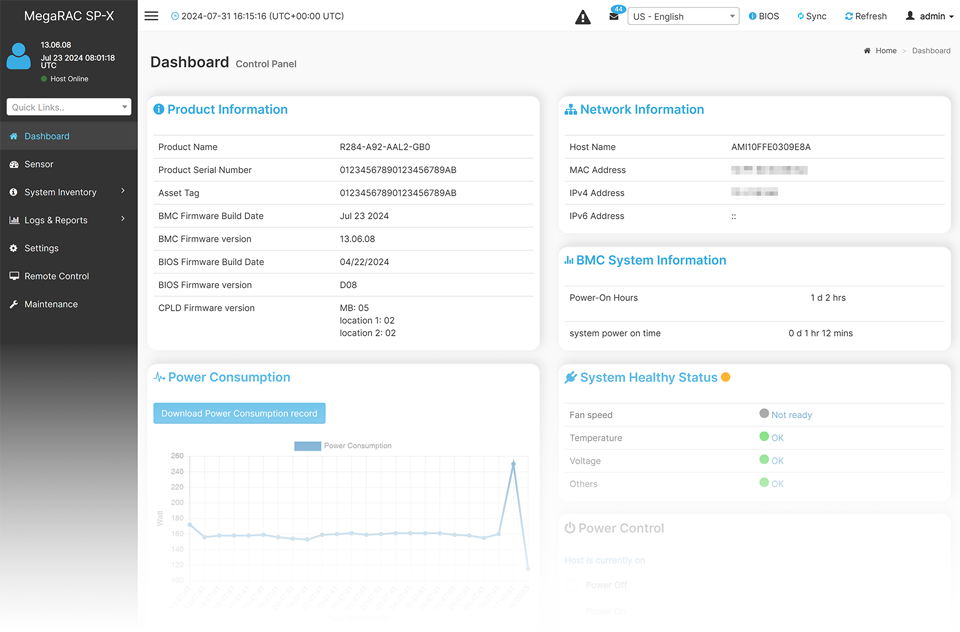

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

• Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
• Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
• Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom^® MegaRAID adapters.

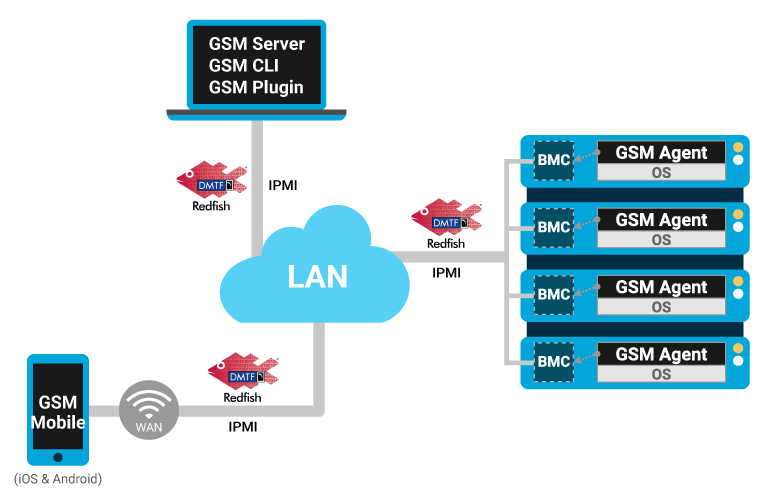

GIGABYTE Server Management (GSM)

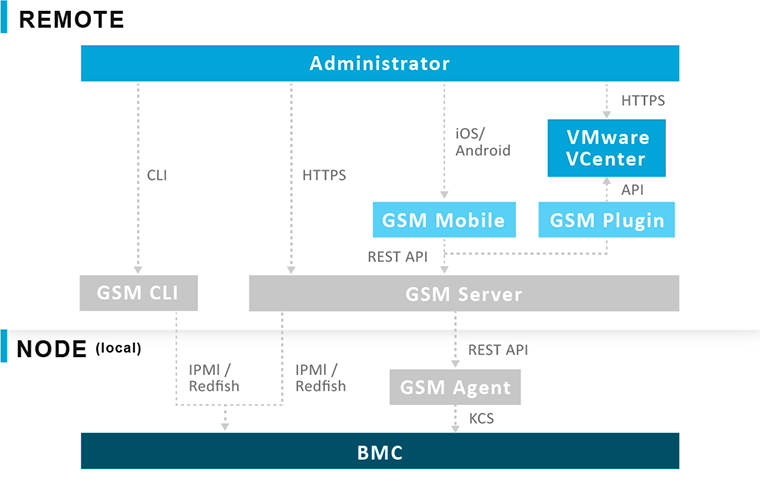

GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

• GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
• GSM CLI: A command-line interface for monitoring and managing remotely.
• GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
• GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
• GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
