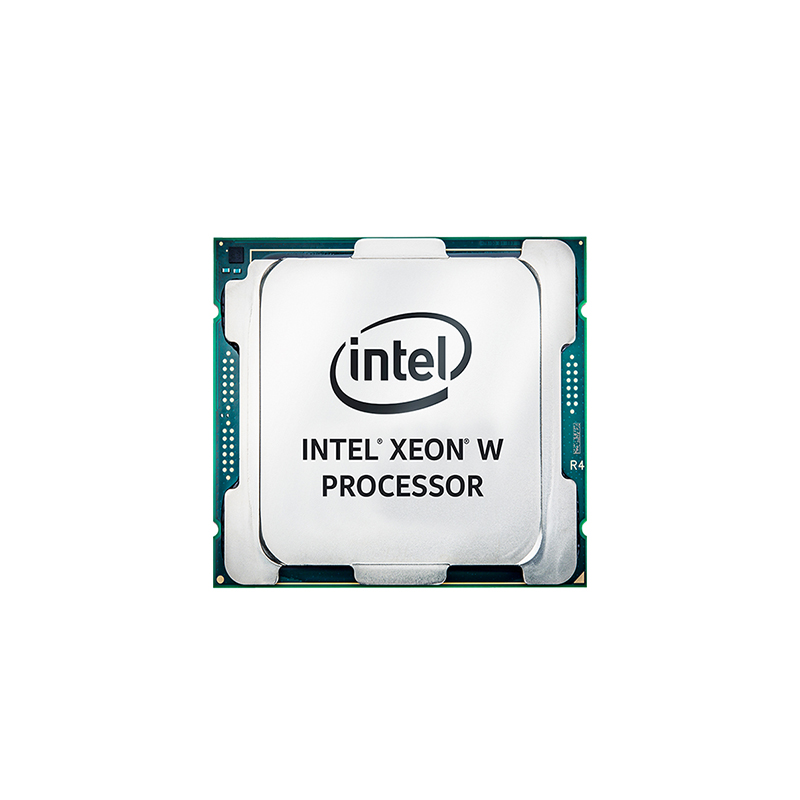

Intel Xeon W-11155MLE Processor

Essentials
Product Collection	Intel® Xeon® W Processor
Code Name	Products formerly Tiger Lake
Vertical Segment	Embedded
Processor Number	W-11155MLE
Lithography	10 nm SuperFin

Chi tiết sản phẩm
Thông số kỹ thuật

Intel Xeon W-11155MLE Processor

Essentials
Product Collection	Intel® Xeon® W Processor
Code Name	Products formerly Tiger Lake
Vertical Segment	Embedded
Processor Number	W-11155MLE
Lithography	10 nm SuperFin

CPU Specifications
Total Cores	4
Total Threads	8
Max Turbo Frequency	3.10 GHz
Processor Base Frequency	1.80 GHz
Cache	8 MB Intel® Smart Cache
TDP	25 W

Supplemental Information
Marketing Status	Launched
Launch Date	Q3'21
Embedded Options Available	Yes
Use Conditions	Embedded Broad Market Commercial Temp \| Industrial Commercial Temp

Memory Specifications
Max Memory Size (dependent on memory type)	128 GB
Memory Types	DDR4-3200
Max # of Memory Channels	2
ECC Memory Supported ‡	Yes

GPU Specifications
GPU Name‡	Intel® UHD Graphics for 11th Gen Intel® Processors
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.25 GHz
Graphics Output	eDP 1.4b \| MIPI-DSI 2.0 \| DP 1.4 \| HDMI 2.0b
Execution Units	16
Max Resolution (HDMI)‡	4096x2304@60Hz
Max Resolution (DP)‡	7680x4320@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡	4096x2304@60Hz
DirectX* Support	12.1
OpenGL* Support	4.6
OpenCL* Support	3
Intel® Quick Sync Video	Yes
# of Displays Supported ‡	4
Device ID	0x9A68

Expansion Options
Intel® Thunderbolt™ 4	Yes
Microprocessor PCIe Revision	Gen 4
Chipset / PCH PCIe Revision	Gen 3
PCI Express Configurations ‡	Up to 1x16+1x4 \| 2x8+1x4 \| 1x8+3x4
Max # of PCI Express Lanes	20

Package Specifications
Sockets Supported	FCBGA1787
Max CPU Configuration	1
TJUNCTION	100°C
Package Size	50 x 26.5
Max Operating Temperature	100 °C
Minimum Operating Temperature	0 °C

Advanced Technologies
Intel® Time Coordinated Computing (Intel® TCC)‡	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Gaussian & Neural Accelerator	2
Intel® Smart Sound Technology	Yes
Intel® High Definition Audio	Yes
MIPI SoundWire*	1.1
Intel® Deep Learning Boost (Intel® DL Boost) on CPU	Yes
Intel® Speed Shift Technology	Yes
Intel® Turbo Boost Technology ‡	2
Intel® Hyper-Threading Technology ‡	Yes
Instruction Set	64-bit
Instruction Set Extensions	Intel® SSE4.1 \| Intel® SSE4.2 \| Intel® AVX2 \| Intel® AVX-512
# of AVX-512 FMA Units	4
Thermal Monitoring Technologies	Yes

Security & Reliability
Intel® Software Guard Extensions (Intel® SGX)	No
Intel® Control-Flow Enforcement Technology	Yes
Intel® Total Memory Encryption	No
Intel® AES New Instructions	Yes
Intel® OS Guard	Yes
Intel® Trusted Execution Technology ‡	No
Intel® Boot Guard	Yes
Mode-based Execute Control (MBEC)	Yes
Intel® Virtualization Technology (VT-x) ‡	Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡	Yes
Intel® VT-x with Extended Page Tables (EPT) ‡	Yes

Application Intel® Xeon® W-11155MLE Processor

The Intel® Xeon® W-11155MLE Processor is designed for specialized applications requiring reliability, energy efficiency, and compact performance. Here are its primary applications:

1. Embedded Systems:

Industrial automation
Medical devices
Network infrastructure (routers, switches)
IoT gateways

2. Edge Computing:

Data processing at the edge for reduced latency
Real-time analytics and AI inference
Smart city applications like traffic monitoring

3. Workstations:

Compact, high-performance desktops
Entry-level creative and engineering tasks
Small business servers

4. Military and Aerospace:

Rugged systems for defense applications
Avionics and mission-critical tasks

5. Healthcare and Imaging:

Diagnostic devices
Imaging systems like ultrasound or X-ray machines

Why Choose It:

Energy Efficiency: Designed for low-power systems with impressive performance per watt.
Reliability: Excellent for industrial applications requiring stable operation.
Compact Design: Ideal for use in edge computing, embedded systems, and small form-factor workstations.
