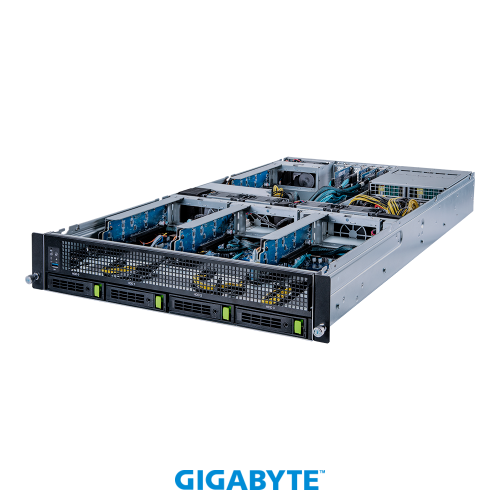

GIGABYTE G242-P35 (rev. 100)
Application: AI Platform
- Hardware-level root of trust support
- Up to 4 x NVIDIA® H100 PCIe Gen4 GPU cards
- Ampere® Altra® Max or Altra® Processors
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel® I350-AM2)
- 1 x Dedicated management port
- 4 x 2.5" Gen4 NVMe hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 4 x FHFL PCIe Gen4 x16 slots for GPUs
- 2 x LP PCIe Gen4 x8 slots on rear side
- Dual 1600W (240V) 80 PLUS Platinum power supply
GIGABYTE G242-P35 (rev. 100)
Ampere® Altra® Max Processor
Cloud Native Server Processors
Ampere’s Altra® family of processors are designed to deliver on predictable performance, high scalability and power efficiency. Ampere’s leadership on all these metrics deliver exceptional results and lower the TCO for Cloud Service Providers.
.png)
.jpg)
Why Ampere® Altra® Max based Server?

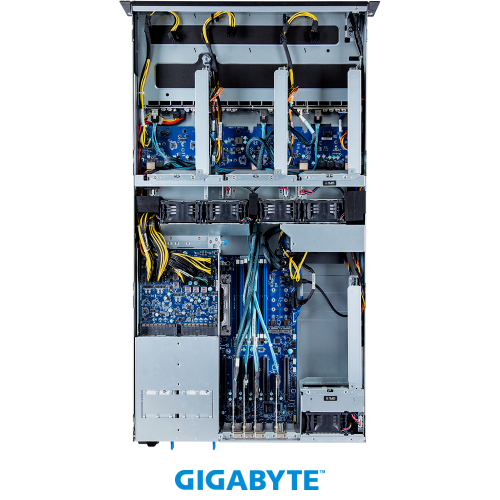

G242-P35 Product Overview
.png)
G242-P35 Block Diagram
Hardware Security
Hardware-level Root of Trust (RoT)
Protection is built in the silicon to ensure systems will not be vulnerable to security attacks or cyber threats. This ROT helps isolate the system as the boot process starts to verify cryptographic operations and ensures the firmware is not compromised by malware.
.png)
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
.png)
Power Efficiency
Automatic Fan Speed Control
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
.png)
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, GIGABYTE has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
.png)
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
Smart Crises Management and Protection (SCMP)
SCMP is a GIGABYTE patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
User Friendly
Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Server Management
GIGABYTE offers free-of-charge server management applications via small processor (BMC) built on the server.
Provides:
- Server health monitoring
- Remote troubleshooting
- Resource utilization monitoring
- Reduction in server downtimes
GIGABYTE Management Console
- Single server management
- Feature-rich and easy to use browser-based interface
- Integration of 3rd party applications
- Automatic recording function
- SAS / RAID controller monitoring function
GIGABYTE Server Management (GSM)
- Multiple server management platform
- Compatible w/ IPMI or Redfish
.png)
Qualified Component List
Software Ecosystem
