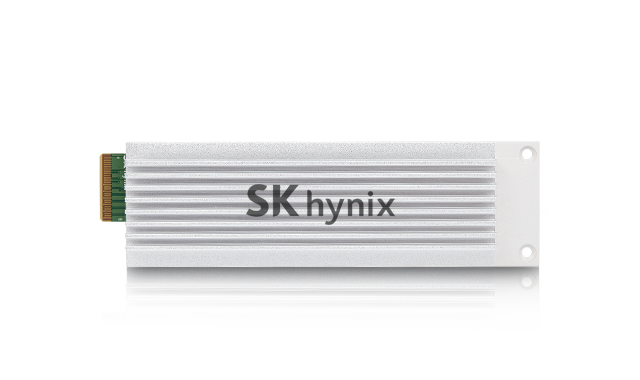

SK hynix - SSD - Enterprise SSD - PE8110 (E1.S)

Capacity: 1920-7680GB

Sequential R/W: Up to 6000 MB/s, Up to 4000 MB/s

Random R/W: Up to 1000K IOPS, Up to 155K IOPS

Power consumption: 20W @7680GB

SoC: In-house
Interface: PCIe Gen4 x4
NAND: 4D V6 TLC
Form Factor: E1.S 15mm
DWPD: 1

Chi tiết sản phẩm
Thông số kỹ thuật

SK hynix - SSD - Enterprise SSD - PE8110 (E1.S)

Newest and Strongest

SK hynix's PE8000 enterprise SSD series include PE8010/PE8030, our first-ever PCIe Gen4 NVMe SSDs with V5 4D NAND flash, and PE8110/PE8130/PE8111, our V6 4D NAND-based PCIe Gen4 NVMe drives. An in-house controller and firmware are equipped in all of the SSDs, which come in a diverse lineup with form factors ranging from U.2 and U.3 to M.2 and E1.L/S, as well as endurance specifications of 1-3 DWPD (Drive Writes Per Day).

Significant Performance Improvements with PCIe Gen4

Equipped with V5 TLC NAND and an in-house controller, PE8010 and PE8030 are our first NVMe SSDs to support the PCIe Gen4 interface. Both the read-intensive PE8010 and the mixed-use PE8030 are available in 1-8TB capacities, with twice the read/write performance over our previous drives. PE8110 and PE8130 succeed the lineup as PCIe Gen4 SSDs based on V6 TLC NAND with even further performance gains.

SK Hynix PE8000

Enterprise NVMe SSDs with Highest Performance at Lowest Power

The SK Hynix PE8010 and PE8030 PCIe Gen4 drives are designed to deliver robust performance with a maximum power budget of 16W (performance can be throttled to meet low-power 11W budget). With 6,500MB/s sequential reads and 3,700MB/s sequential writes, and 1,100K IOPS random reads and 320K IOPS random writes, the drives boast the strongest performance among low-power (<17W) PCIe Gen4 NVMe SSDs in today's market

SK Hynix SSD PE8000

Diverse form factors for your datacenter and enterprise environment

The SK Hynix PE8111, our first enterprise SSD with V6 4D NAND flash, can deliver higher capacities, stronger performance, and greater power efficiency at competitive costs. A 16TB model in the new E1.L (EDSFF 1U Long) enterprise SSD form factor has begun customer sampling. Adding to the portfolio is our PE8110 SSD, first launched as a compact M.2 drive and now available in the SK Hynix PE8111 E1.S form factor with up to 8TB in capacity, giving customers greater flexibility amid the ever-diversifying enterprise landscape

Application: Server

Part No.	Model Name	Interface	Form Factor	Capacity	DWPD	Product Status
HFS7T6GEEWX091N	PE8110	PCIe Gen4 x4	E1.S 15mm	7680GB	1	MP
HFS3T8GEEWX091N	PE8110	PCIe Gen4 x4	E1.S 15mm	3840GB	1	MP
HFS1T9GEEWX091N	PE8110	PCIe Gen4 x4	E1.S 15mm	1920GB	1	MP
HFS7T6GEETX070N	PE8110	PCIe Gen4 x4	U.3/2 15mm	7680GB	1	MP
HFS3T8GEETX070N	PE8110	PCIe Gen4 x4	U.3/2 15mm	3840GB	1	MP
HFS1T9GEETX070N	PE8110	PCIe Gen4 x4	U.3/2 15mm	1920GB	1	MP
HFS960GEETX070N	PE8110	PCIe Gen4 x4	U.3/2 15mm	960GB	1	MP
HFS3T8GDE0X089N	PE8110	PCIe Gen3 x4	M.2 22110	3840GB	1	MP
HFS1T9GDE0X089N	PE8110	PCIe Gen3 x4	M.2 22110	1920GB	1	MP
HFS960GDE0X089N	PE8110	PCIe Gen3 x4	M.2 22110	960GB	1	MP

Model Specs

Capacity	Sequential R/W	Random R/W	Power consumption	SoC	Interface	NAND	Form Factor	DWPD
1920-7680GB	Up to 6000 MB/s, Up to 4000 MB/s	Up to 1000K IOPS, Up to 155K IOPS	20W @7680GB	In-house	PCIe Gen4 x4	4D V6 TLC	E1.S 15mm	1
