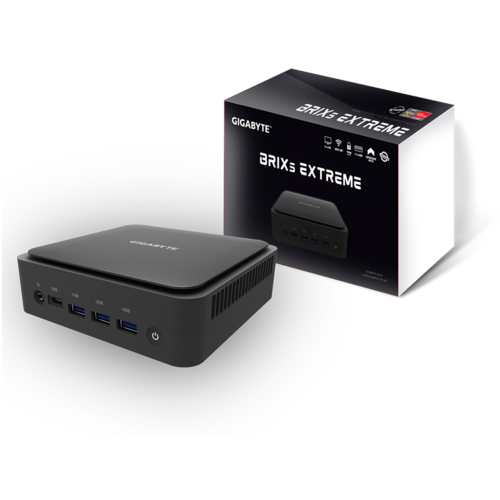

GB-BSRE-1505-BW (rev.1.0)

AMD^® Ryzen™ Embedded R1505G Dual Cores Processor
Integrated Graphics Processor – Radeon™ Vega 3 Graphics
Dual Channel DDR4 2400MHz, 2 x SO-DIMMs, Max. 32GB
3 x HDMI ports, supporting a maximum resolution of 4096x2160@60Hz
2 x GbE LAN ports, Wi-Fi 802.11ac / BT4.2
ALC 269 Audio Codec
2 x M.2 for SSD (1 x PCIe/SATA Mode, 1 x SATA Mode)
1 x Mini PCI slot
Infineon TPM onboard*
4 x USB 2.0 (Front), 2 x USB 3.2 (Back)
Headphone/microphone jack
Support VESA Mount
Onboard headers: 2 x RS232/422/485/5V/12V/RI COM ports; 2 x RS232 COM ports
GB-BSRE-1505-BW part number: 6BXWUDXXWMR-00

Chi tiết sản phẩm
Thông số kỹ thuật

GB-BSRE-1505-BW (rev.1.0)

Small Outside, Powerful Inside

The perfect choice for commercial workplaces.
Available now with the latest AMD’s Embedded Solution.

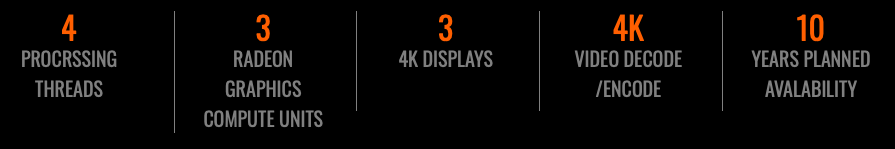

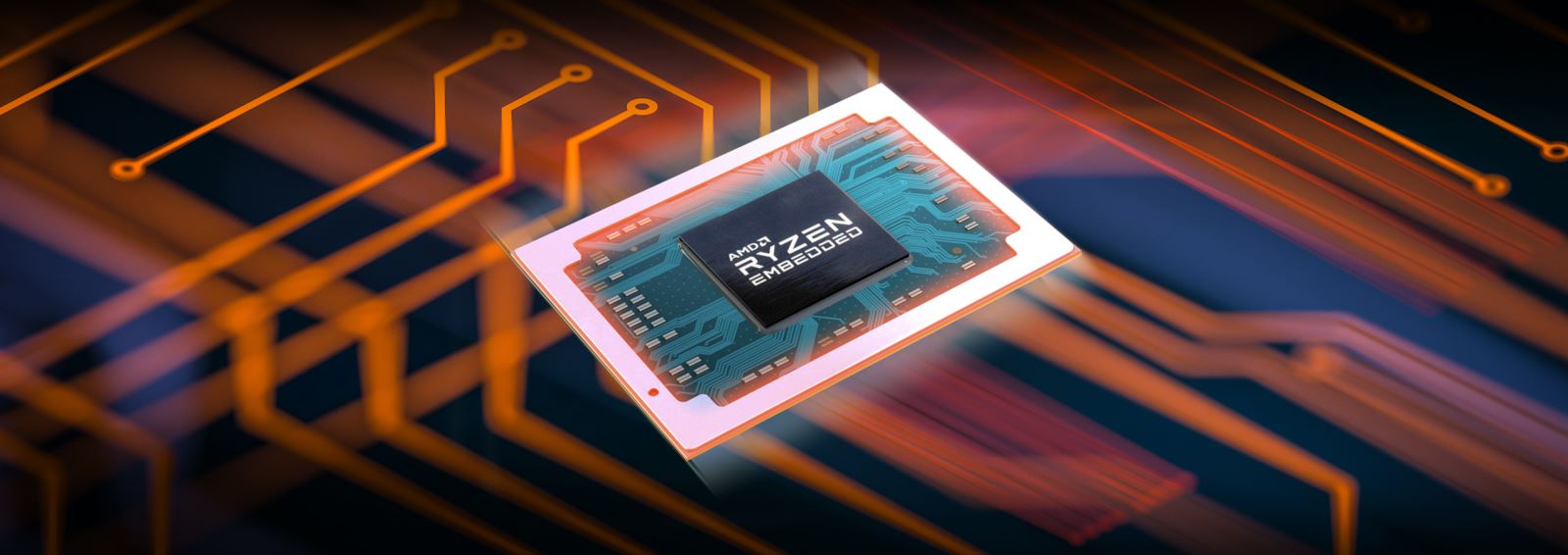

AMD Ryzen Embedded R1000 APU

The AMD Ryzen Embedded R1000 APU family offers ultra-high performance and class leading integration. The GB-BSRE-1505 BRIX PRO model sports the AMD Ryzen Embedded R1505G APU which combines “Zen” CPU and “Vega” GPU cores to achieve breakthrough SoC performance. Moreover, it supports up to three 4K display outputs. All these in a single device!

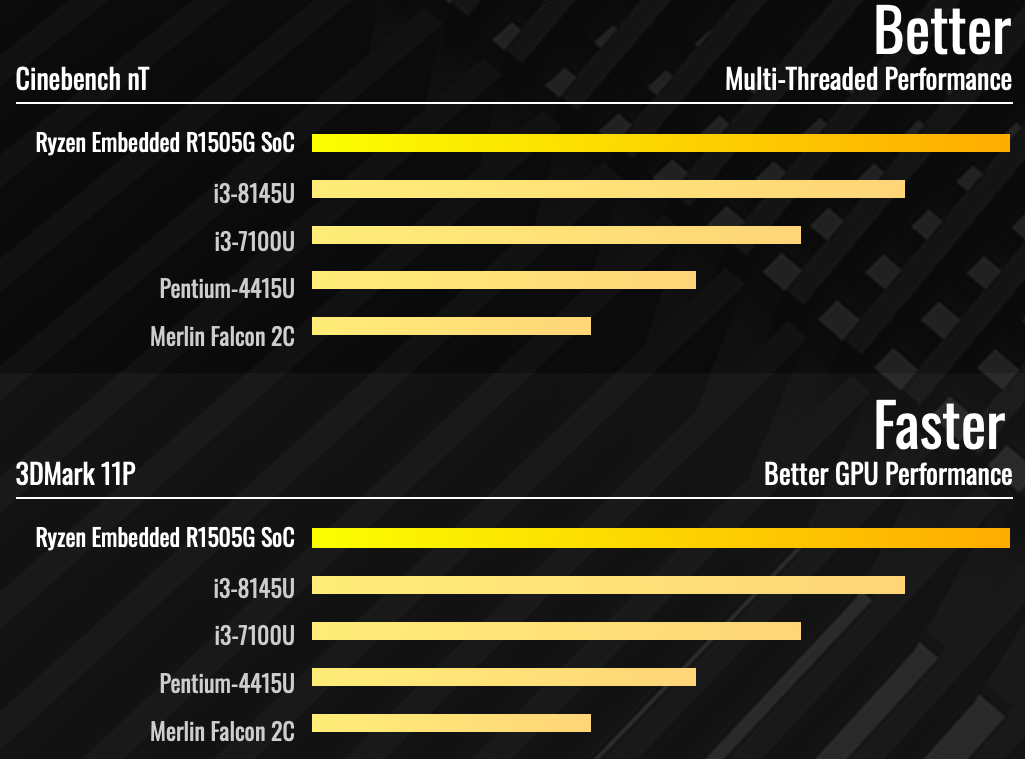

Performance

GB-BSRE-1505 features the AMD Ryzen Embedded R1505G APU. The R1505G is a 2-core/4-thread SoC that delivers an optimal balance of performance with up to 3x generational performance improvement per watt, and 4x better CPU and graphics performance per dollar than the competition.

Triple-Display Support

The GB-BSRE-1505 BRIX PRO model supports up to 3 independent displays through its 3x HDMI ports. Combining this with 4K resolution on each output gives users the flexibility to configure their working environment without any limitation.

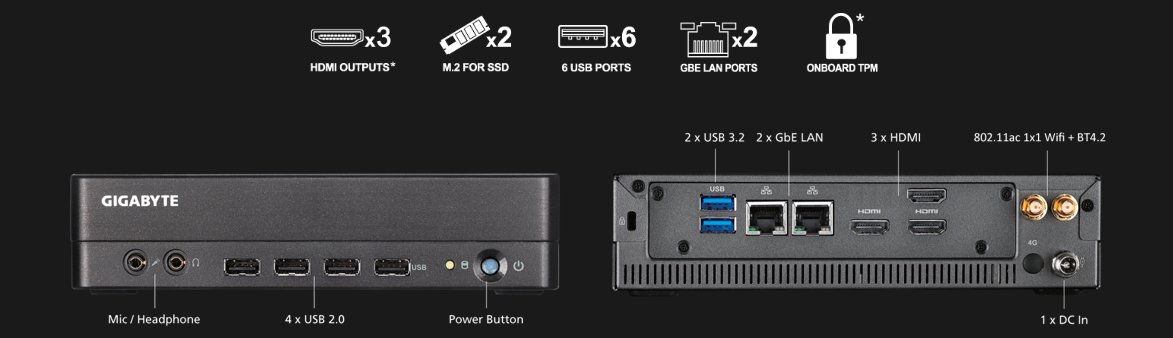

Connectivity

GB-BSRE-1505 offers a plethora of available connections. It provides multiple ports such as USB 3.2 ports, Wi-Fi connection, 3 x HDMI ports, legacy USB 2.0 ports and more. It is equipped with the most of the modern connectivity to be able to cover the needs of a business at all times.

The Perfect Fit for Any Space and Application

The mini pc BRIX PRO models are following a modern design with metal and plastic parts. Its compact size makes it to fit perfectly in any environment. The GB-BSRE-1505 can be placed horizontally or vertically depending of the use. Furthermore, it features a VESA mount making it flexible to be attached to the back of the display. The GB-BSRE-1505 BRIX PRO model can serve the most demanding applications with its high processing power and the multiple display support capability.

The Perfect Compact Home PC

．Living room
．Bedroom
．Kitchen
．Study

Vertical Markets

．School
．University computer labs
．Libraries
．Hospital / Medical equipment
．Governmental

An Ultimate Graphics Powerhouse

．Play the latest 3D game
．Multimedia production
．Video editing
．3D design

Powerful Commercial Applications

．Factory testing machine
．Bank ATM system
．Gaming equipment
．Vending machine
．Security system

At the Office

．Meeting room device
．Workstation
．Studio
．Freelance office space

Simpler and Smarter Digital Life

．Shopping mall signboard
．Scoreboard system
．Split-flap display
．Indoor / Outdoor LED Display

VDO is the official distributor of Gigabyte products in Vietnam. Enterprise customers and project clients who need to invest in or purchase MINIPC - BRIX, please contact us via hotline: 1900 0366 or email: info@vdo.vn to receive the best pricing policies. Our products are always in stock.

📩 info@vdo.vn
️🛒https://vdo.com.vn | https://vdoecommerce.com
☎️ 1900 0366

#vdo, #vdo-distributor, #mini-pc-gigabyte, #mini-pc-GB-BSRE-1505-BW-(rev.1.0), #gigabyte-GB-BSRE-1505-BW-(rev.1.0), #GB-BSRE-1505-BW-(rev.1.0)

Dimension: 196.2 x 44.4 x 140 mm, 1.16L
Motherboard Size: 3.5'' SBC, 146 x 102 mm
CPU: AMD Ryzen™ Embedded R1505G Dual Cores Processor
4 Threads / 5M Cache
2.4 – 3.3 GHz, 25W TDP
Memory: 2 x SO-DIMM DDR4 2400MHz, Max. 32GB
Dual channel memory architecture
LAN: Dual Realtek RTL8111H GbE LAN
Wifi Card: Intel^® Wi-Fi 802.11ac / BT4.2

Graphics: AMD Radeon VEGA 3 / 3 SIMD 1000MHz
Audio: ALC 269 Codec
HDMI Resolution (Max.): 3 x HDMI 2.0 @4K/60P
Max. Bandwidth 4K / 90P
Storage: 1 x M.2 PCIe x4/SATA Mode
1 x M.2 SATA Mode
Expansion Slots: Mini PCI slot
Front I/O: 4 x USB 2.0
1 x Headphone / Mic Jack
1 x Power Button
