FusionServer G5200 V7

Form factor: Máy chủ AI 4U
CPU: Intel Xeon Scalable Gen 4/5 (350 W mỗi CPU)
Memory: 32 DIMMs DDR5, tốc độ 5600 MT/s
GPU: 4 GPU dual-width hoặc 10 GPU single-width
Storage: 28 × 3.5″ SAS/SATA, 4 × NVMe SSD, 2 × M.2 SSD
PCIe: 10 khe PCIe 5.0 + 2 OCP 3.0 NICs hot-swap
Nguồn: 4 × PSU 1500/2000 W Platinum/Titanium, hỗ trợ 1+1 redundancy
Tản nhiệt: 8 quạt hot-swap N+1
Quản lý: iBMC + FusionDirector, hỗ trợ Redfish/SNMP/IPMI
OS: FusionOS, Windows Server, Linux, VMware ESXi, v.v.
Bảo mật: TPM 2.0, secure boot, chassis intrusion detection
Ứng dụng: AI, HPC, phân tích dữ liệu và điện toán hiệu năng cao

Chi tiết sản phẩm
Thông số kỹ thuật

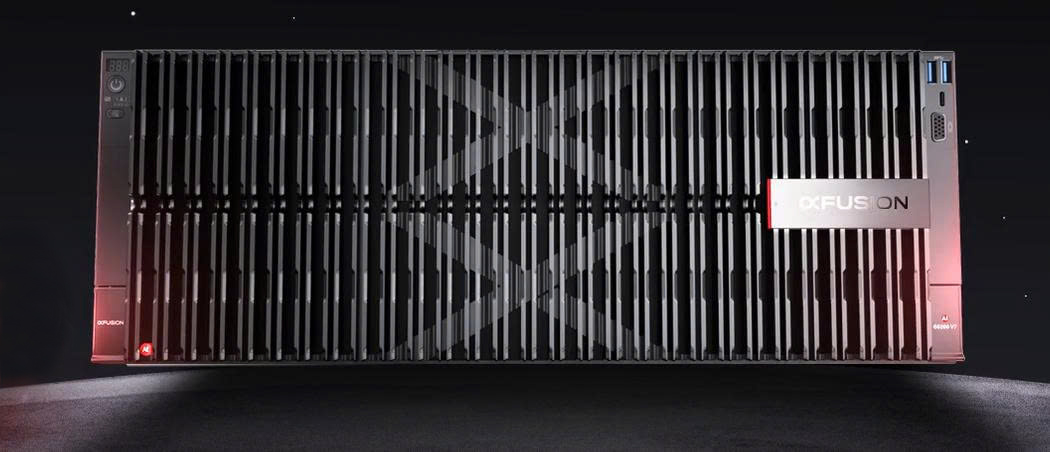

FusionServer G5200 V7

Robust Performance, High Reliability and Security, Efficient Energy Saving, Intelligent O&M

New-Generation 4U 2-Socket AI Server

• FusionServer G5200 V7 (G5200 V7) is a new-generation 4U 2-socket AI server that meets AI requirements
of large-capacity storage.

• Featuring robust performance, high reliability and security, efficient energy saving, simplified management
and easy deployment, it can be used for training and inference workloads and is suitable for voice, image,
and video analysis scenarios.

Robust Performance

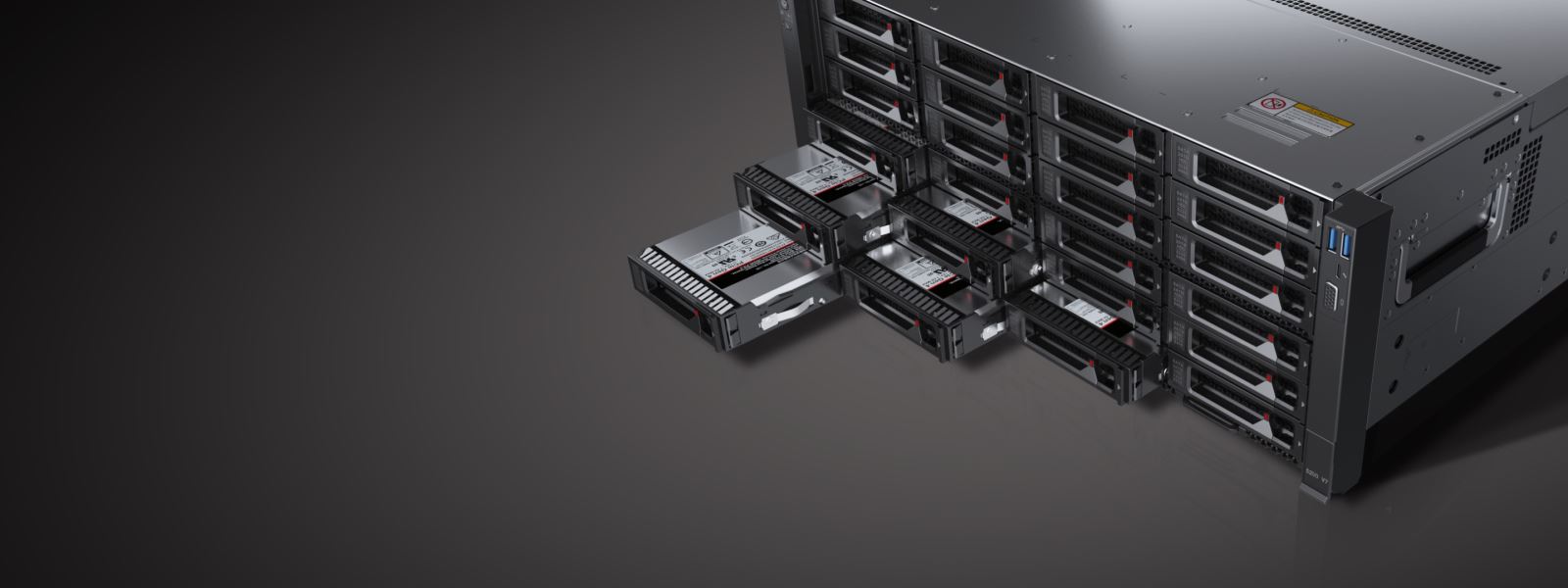

Ultra-large Storage

Up to 28 x 3.5" SAS/SATA drives
Up to 4 x NVMe SSDs
2 x M.2 SSDs

Flexible Expansion

Up to 10 x standard PCIe expansion slots
2 x OCP 3.0 NICs

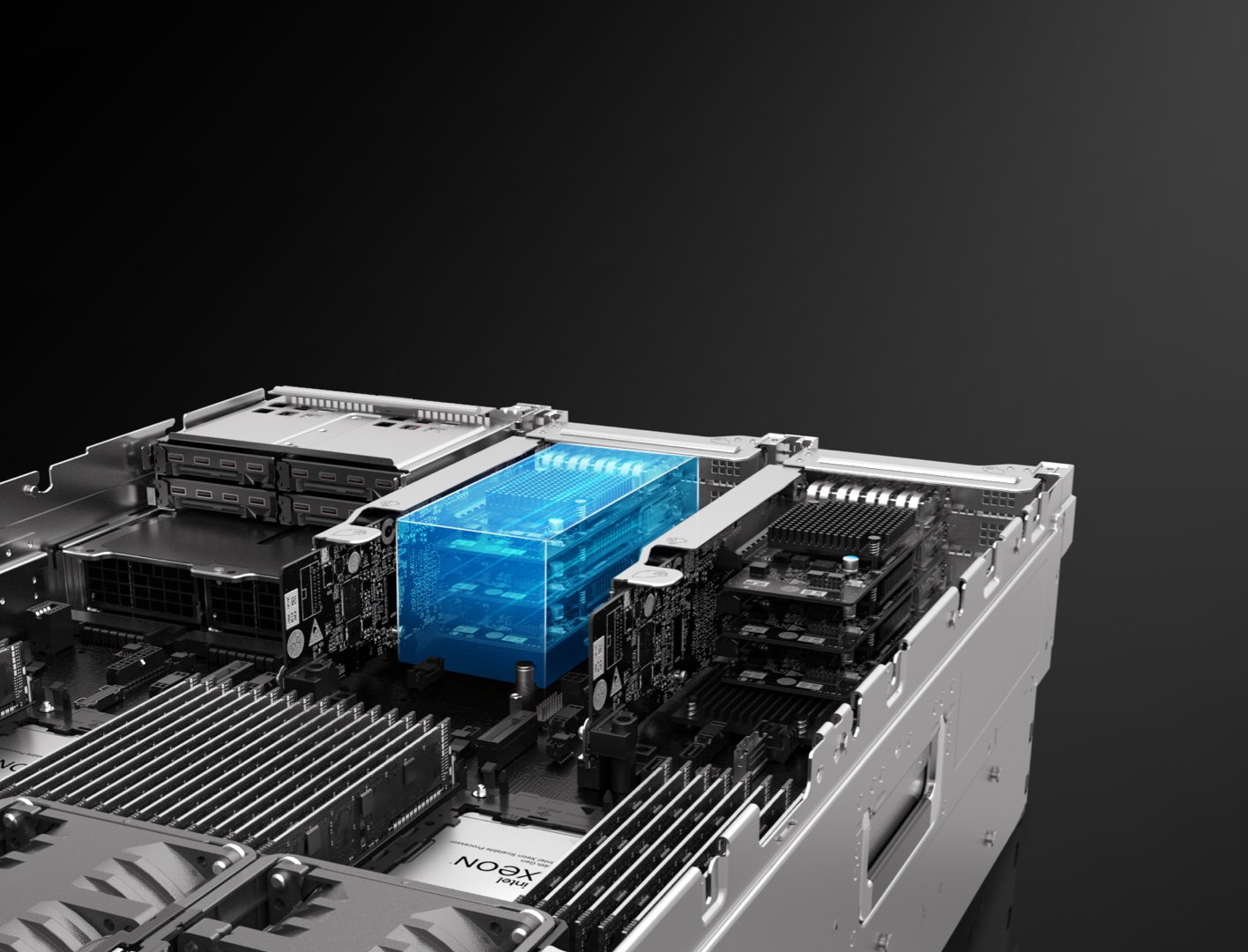

Supreme Computing Power

4th or 5th Gen Intel^® Xeon^® Scalable processors with 350 W TDP per processor
4 x FHFL dual-width GPU cards
GPU pass-through design, eliminating the need of PCIe switches for communication between CPUs and GPUs

High Reliability and Security

50% Better Heat Dissipation
Capability Than a Single Heat Sink

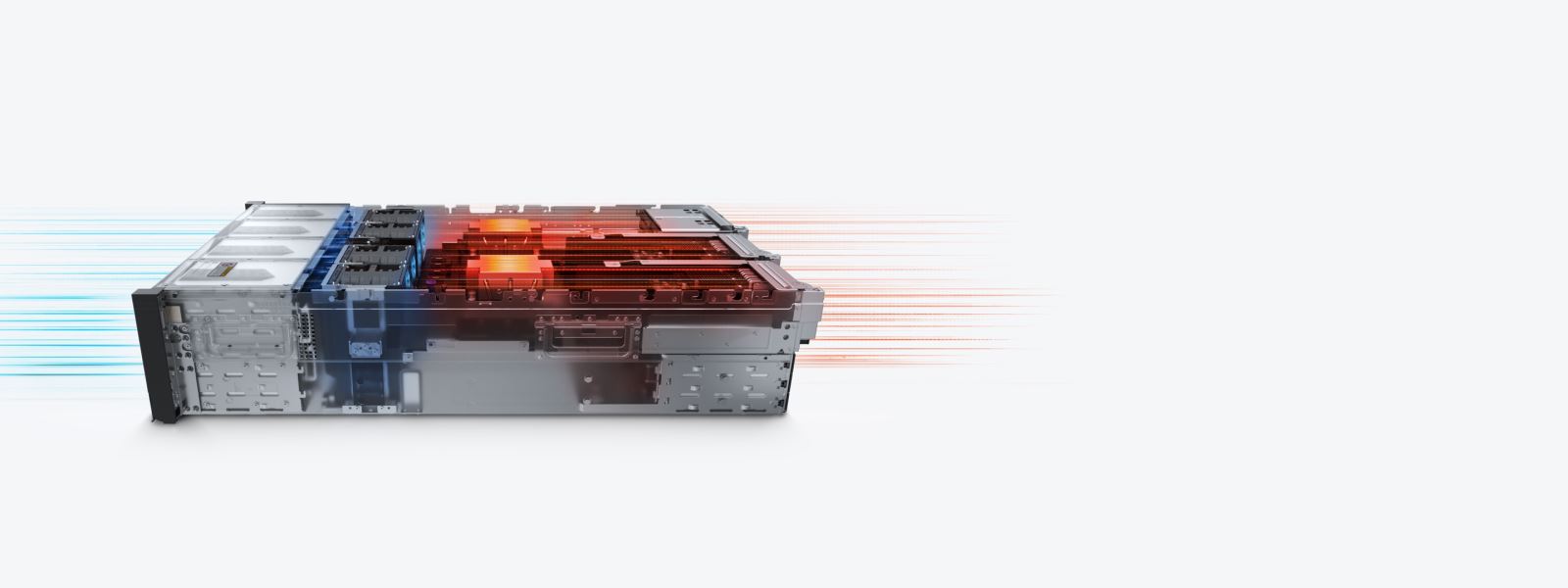

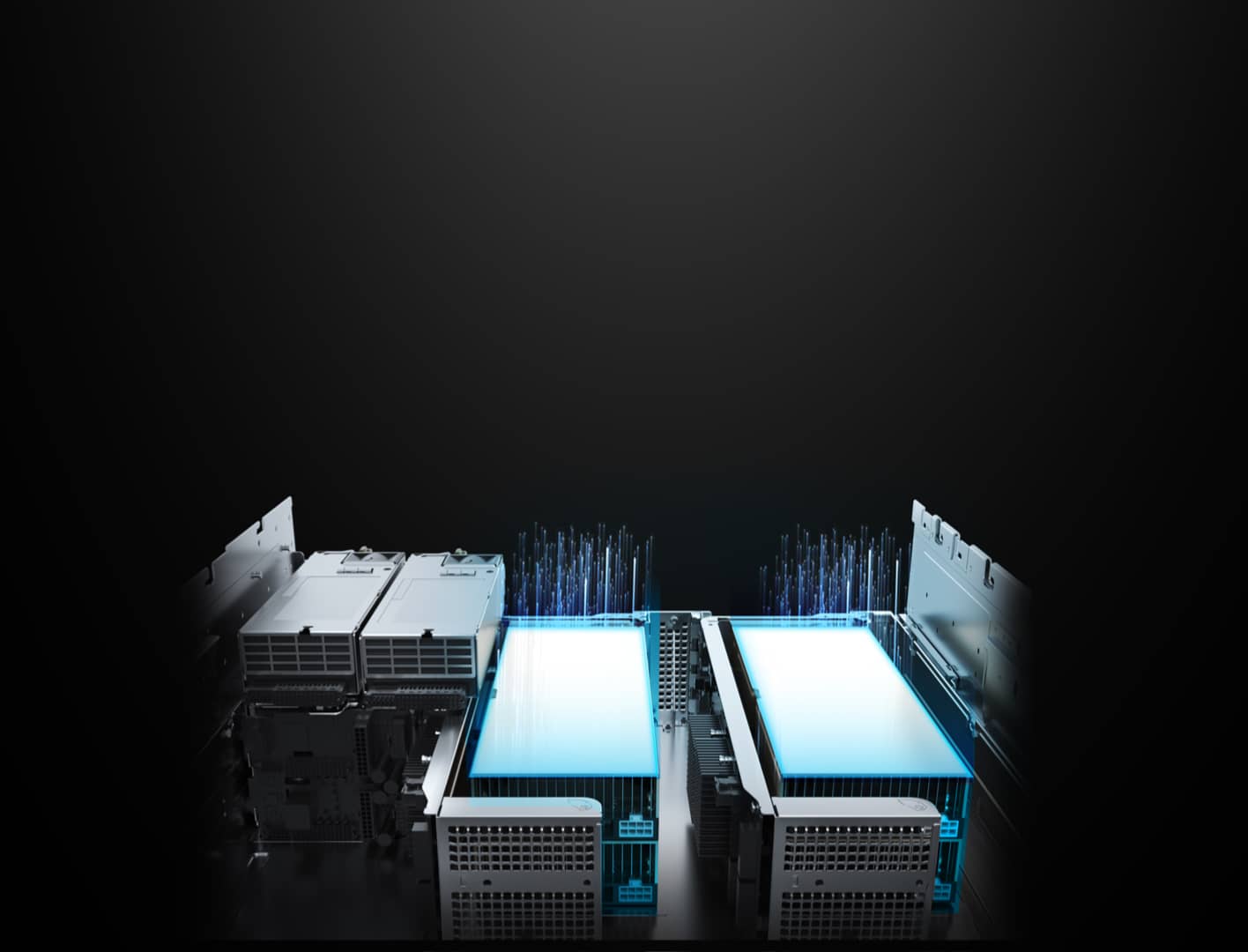

Advanced Extended Volume Air Cooling (EVAC), ensuring reliable heat dissipation and stronger temperature adaptation

66% Less System Downtime

Unique AI memory fault self-healing, ensuring stable system running

Efficient Energy Saving

Saving Energy by up to 8% Compared with the Industry Average

Unique algorithm for the lowest power consumption of fans and CPUs

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies for power and efficiency improvement, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

Intelligent Service Awareness and Dynamic Load Adjustment

Dynamic adjustment of the CPU working frequency based on the actual service load

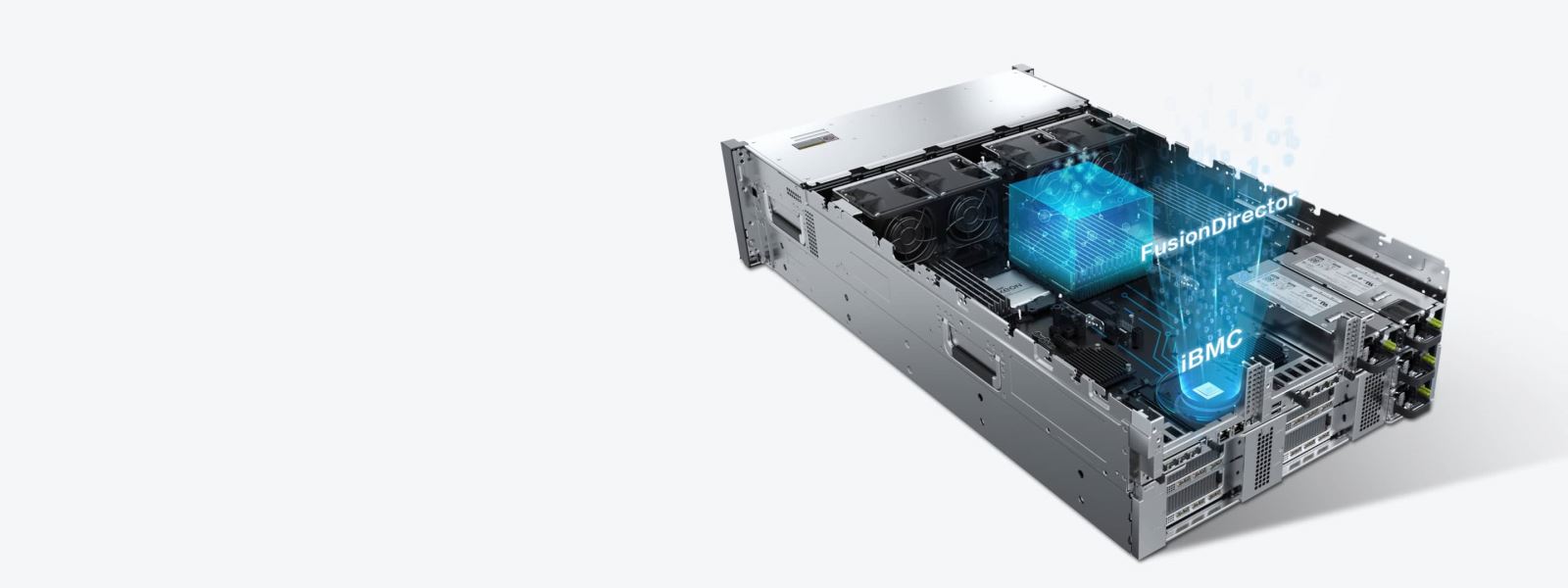

Intelligent O&M

20x Higher Upgrade Efficiency

Automatic version push and upgrades can be completed without onsite attendance

10x Higher Deployment Efficiency

75% streamlined deployment steps are performed by tools

100% Accuracy for Asset Stocktaking

Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking

Form Factor

4U AI server

Processor

4th or 5th Gen Intel^® Xeon^® Scalable processors with 350 W TDP per processor

Chipset

Emmitsburg PCH

Memory

32 x DDR5 DIMMs, with up to 5600 MT/s speed

Local Storage

Hot-swappable drives in the following configurations:
• Up to 28 x 3.5ʺ SAS/SATA drives
• Up to 4 x NVMe SSDs
Flash storage:
• 2 x M.2 SSDs

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

GPU Card

4 x dual-width or 10 x single-width GPU cards

Network

Multiple network expansion capabilities

2 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap and PCIe 5.0

PCIe Expansion

Up to 10 x standard PCIe slots; supporting PCIe 5.0

Fan Module

8 x hot-swappable counter-rotating fan modules in N+1 redundancy

PSU

4 x 1500 W Platinum, or 2000 W Platinum/Titanium hot-swappable PSUs with PSU1 and PSU2 in 1+1 redundancy and PSU3 and PSU4 in 1+1 redundancy

Management

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

• Can be configured with the FusionDirector management software to provide advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management through the lifecycle

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler . For more, click here

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Operating Temperature

5°C to 35°C (41°F to 95°F) (compliant with ASHRAE Class A1/A2)

Certification

CE, UL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

175 mm x 447 mm x 798 mm (6.89 in. x 17.60 in. x 31.42 in.)
