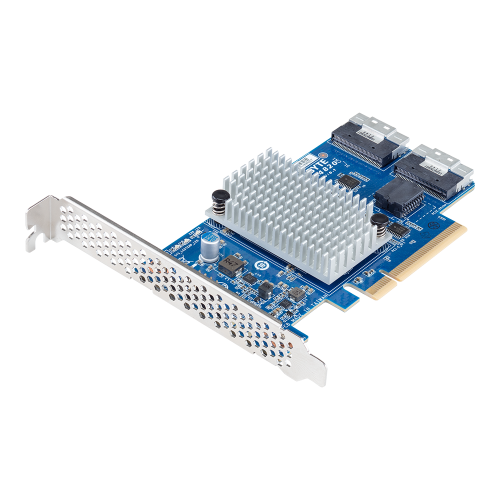

GIGABYTE CSA4820 (rev. 1.x)

Broadcom® SAS3816 controller
2 x SlimLine SAS 8i connectors
Supports up to 16 x SAS 12Gb/s or SATA 6Gb/s physical devices
Supports up to 4 x PCIe x4 NVMe physical devices
Max. 1024 x SAS/SATA or 32 x NVMe devices
PCIe x8 (Gen4 x8 bus)
Card dimensions: 68.9 x 120 mm

Chi tiết sản phẩm
Thông số kỹ thuật

Ports
2 x SlimLine SAS 8i connectors

Supports up to 16 x SAS 12Gb/s or SATA 6Gb/s physical devices
Supports up to 4 x PCIe x4 NVMe physical devices
Max. 1024 x SAS/SATA or 32 x NVMe devices

NOTE: Please select enterprise SATA devices

Controller
Broadcom® SAS3816, 16-port

RAID
Non-RAID supported

Interface
PCIe x8 (4.0 x8 bus)

Dimension
68.9 x 120 mm

Format
Low-profile card
Available with full-height or low-profile brackets

Includes
1 x Full-height bracket
1 x Low-profile bracket

Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/

Ordering Information
9CSA4820MR-00-1*
- Individual packaging, 6 PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm

9CSA4820NR-00-1*
- Bulk packaging, 15 PCS per carton
- Packaging dimensions: 305 x 251 x 220 mm

NOTE: This card is only compatible with GIGABYTE servers
