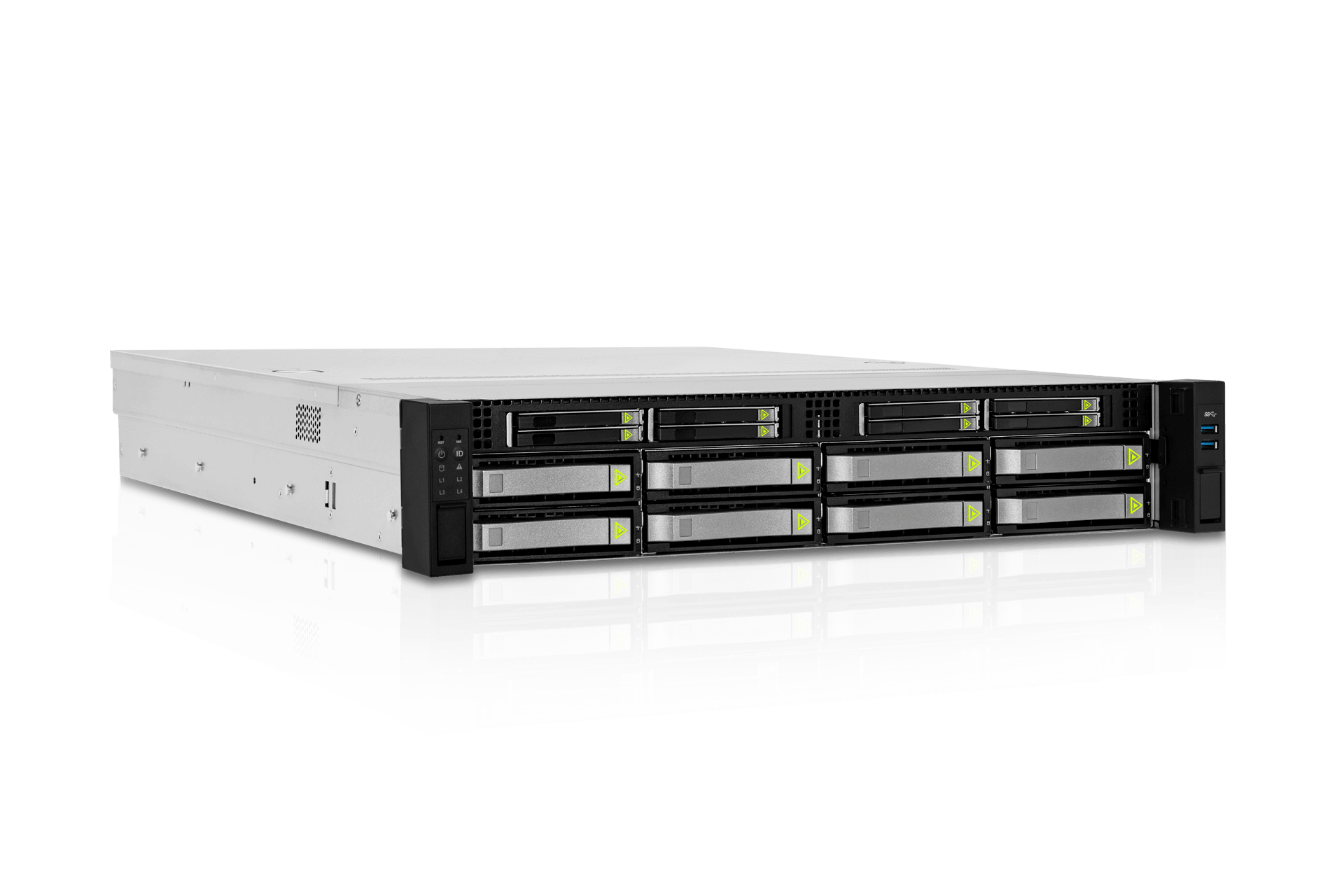

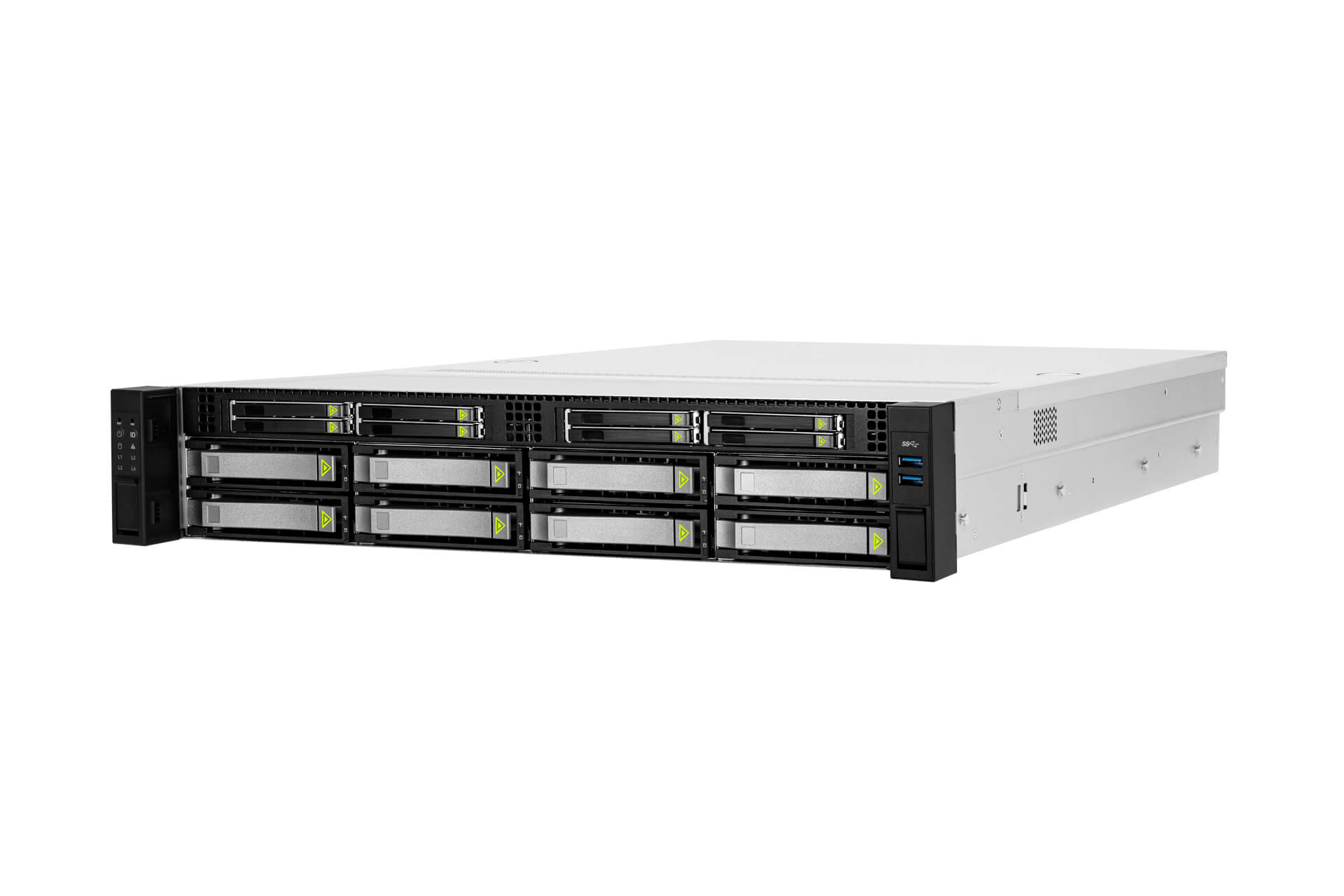

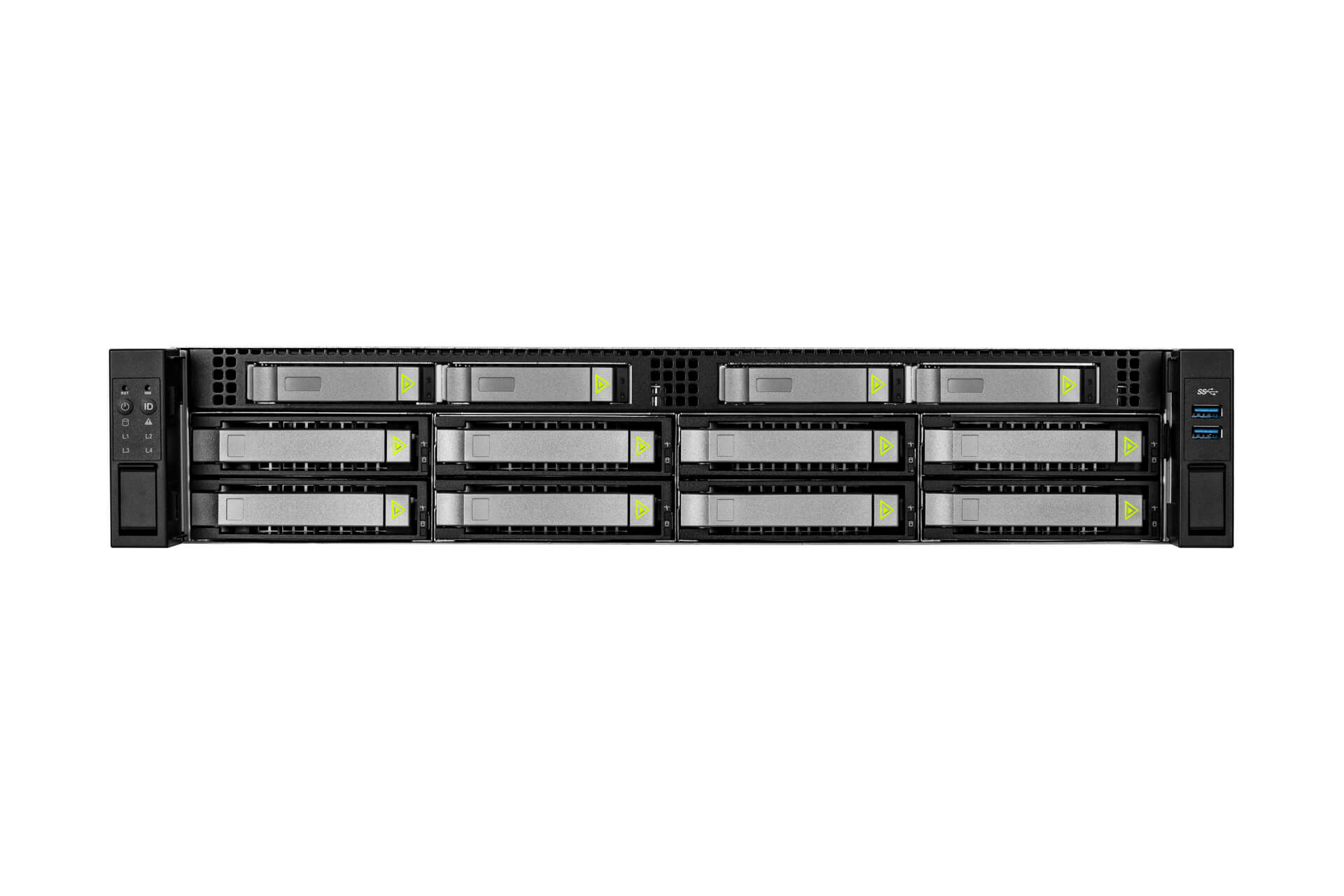

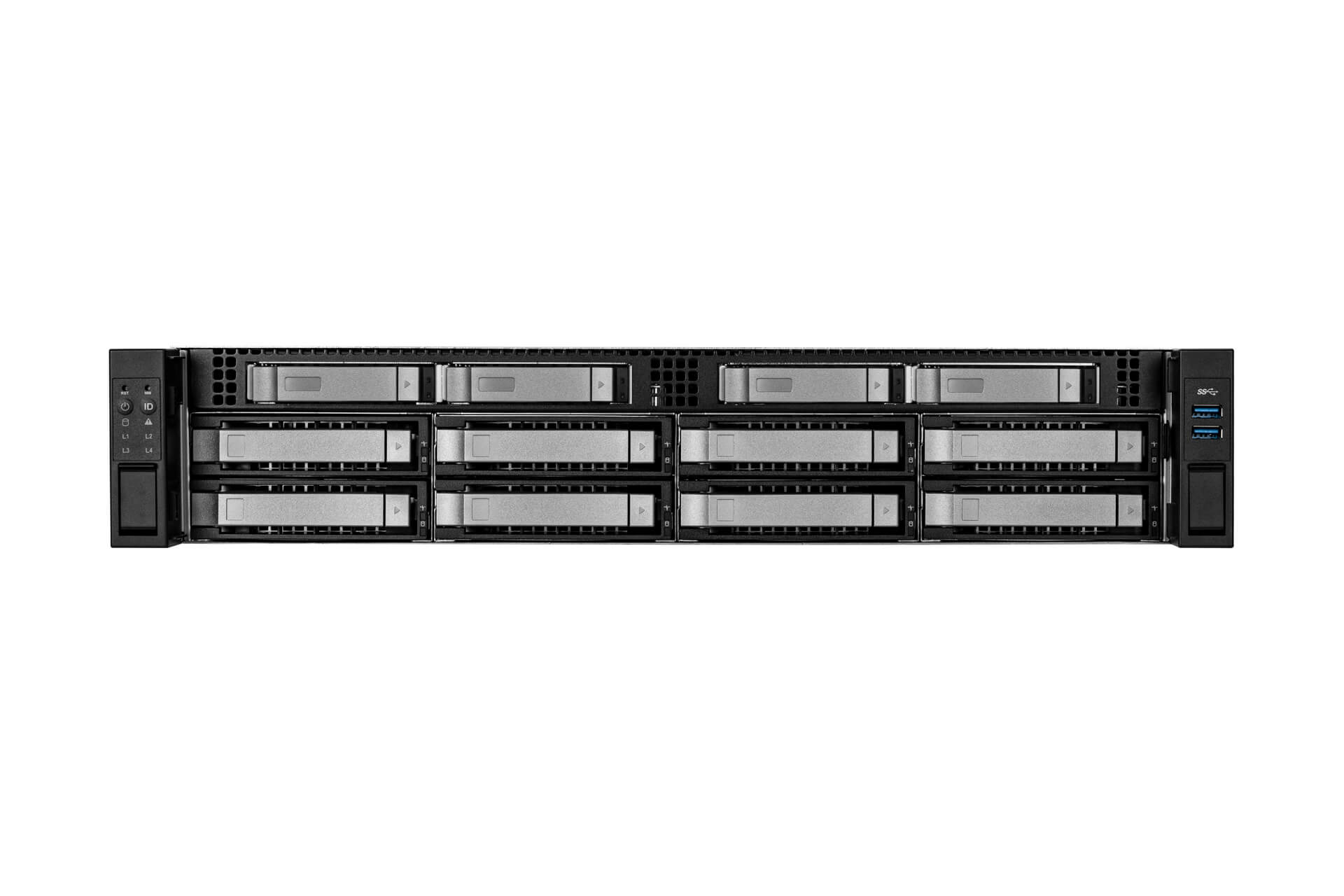

2U NVMe Hybrid Storage Server
．Intel® Xeon Scalable & AMD EPYC family compliant
．Backplanes with Mini-SAS HD or OCuLink connectors (compatible with PCIe 4.0)
．Full range of storage configurations: 3.5" HDDs and 2.5" SSDs (15mm, 7mm)

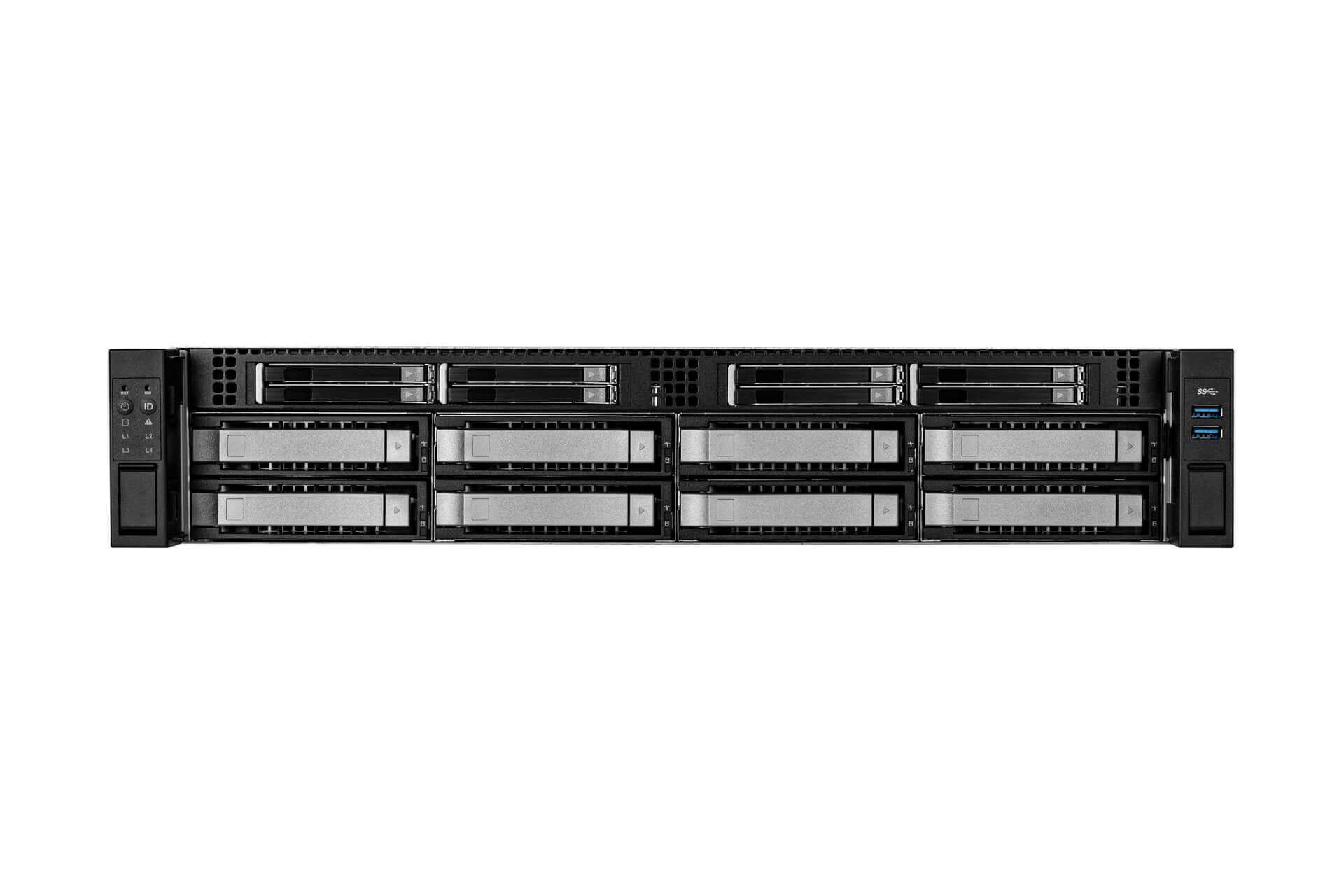

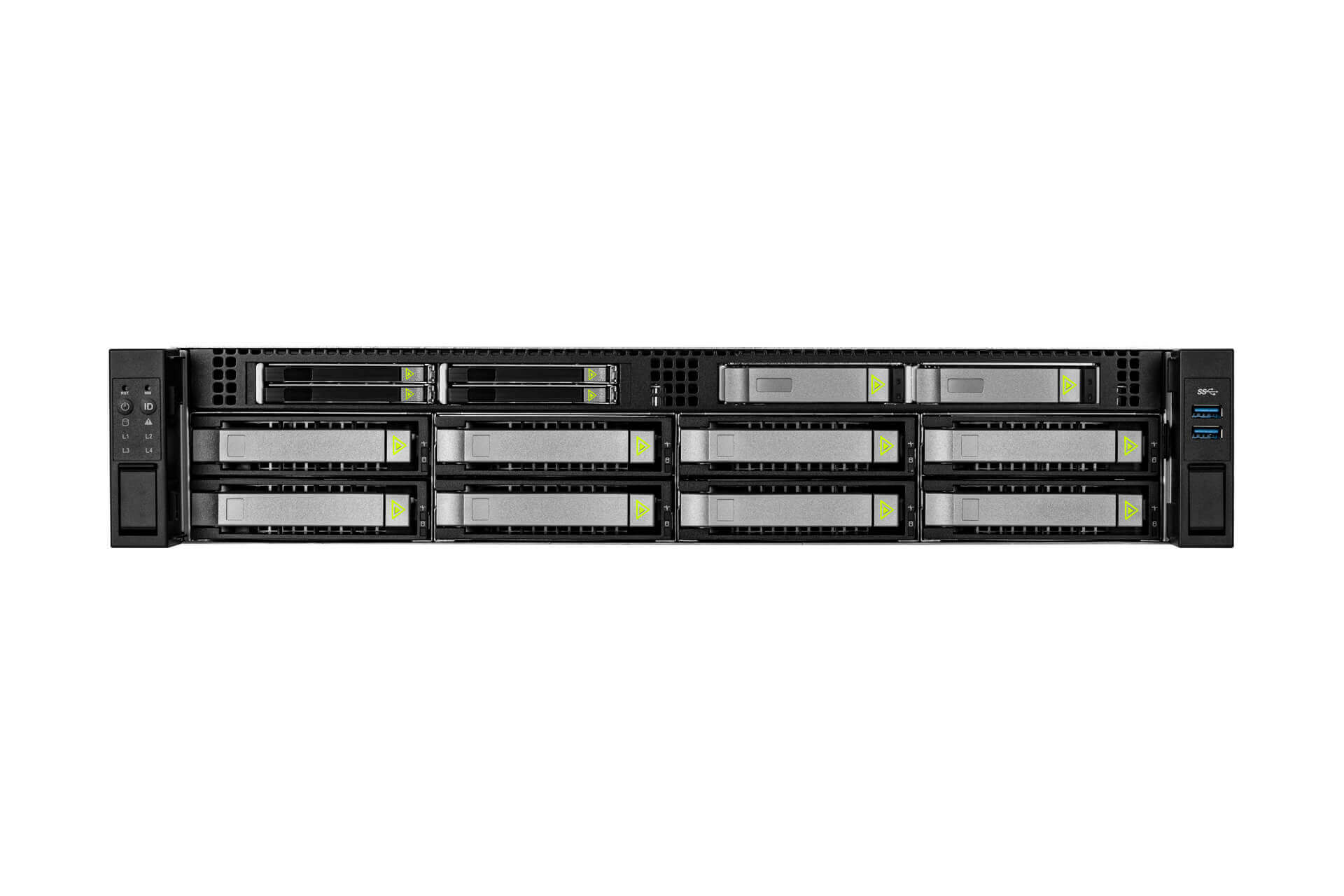

．3.5"/2.5" (15mm) trays x 8, pair optional 2.5" (15mm) trays or 2.5"(7mm) trays
．Maximum supports U.2 NVMe SSDs x 16
．Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
．550W/800W/1200W/1600W CRPS, 80 Plus® Platinum (optional)
．High-speed cooling fans for excellent thermal performance
Features & Benefits
• Intel® Xeon Scalable & AMD EPYC family compliant
• Backplanes with Mini-SAS HD or OCuLink connectors (compatible with PCIe 4.0)
• Full range of storage configurations: 3.5" HDDs and 2.5" SSDs (15mm, 7mm)
• 3.5"/2.5" (15mm) trays x 8, pair optional 2.5" (15mm) trays or 2.5"(7mm) trays
• Maximum supports U.2 NVMe SSDs x 16
• Rear drive bays support 2 x 2.5" SAS/SATA SSDs for system disks
• 550W/800W/1200W/1600W CRPS, 80 Plus® Platinum (optional)
Optional Items:
| Item | Part Number | Description | Support |
|---|---|---|---|
| Case | RS216-07_OCULINK (3.5" x 8 + 2.5" x 4) |
RS216-07 case only with USB3.0, & including -- 80 x 38mm PWM hot-swap fans x 4, 12000RPM -- External 3.5" hot-swap trays x 8 + 2.5" tray (15mm) x 4 -- RS216-07 3.5" 4bay HYBRID BP-V Module x 2pcs -- RS216-07 15mm 2bay HYBRID BP Module x 2pcs -- Rear 2.5" hot-swap HDD module (supports SAS 12G) |
1 |
| Case | RS216-07_OCULINK (3.5" x 8 + 2.5" x 8) |
RS216-07 case only with USB3.0, & including -- 80 x 38mm PWM hot-swap fans x 4, 12000RPM -- External 3.5" hot-swap trays x 8 + 2.5" tray (7mm) x 8 -- RS216-07 3.5" 4bay HYBRID BP-V Module x 2pcs -- RS216-07 slim 4bay HYBRID BP-V Module x 2pcs -- Rear 2.5" hot-swap HDD module (supports SAS 12G) |
1 |
| Slide Rail | 3RAMIS148100 | 28" tool-less & ball-bearing slide rail | 1 set |
| Slide Rail | 3RAMIS152300/ 3RAMIS152400 | 28" tool-less & ball-bearing slide rail with CMA support | 1 set |
| Cable | 3RAMW4031700 | Mini SAS 12Gbps SFF-8643 to SFF-8643 cable, 800mm | Max.2 |
| Cable | 3RAMW4039700 | SFF-8611 to SFF-8643, 800mm | Max.2 |
| Cable | InWin can customize the SFF-8611/ SFF-8654 cables to fulfill customers' OCuLink/Slimline connectors requirements. | Max.16 | |

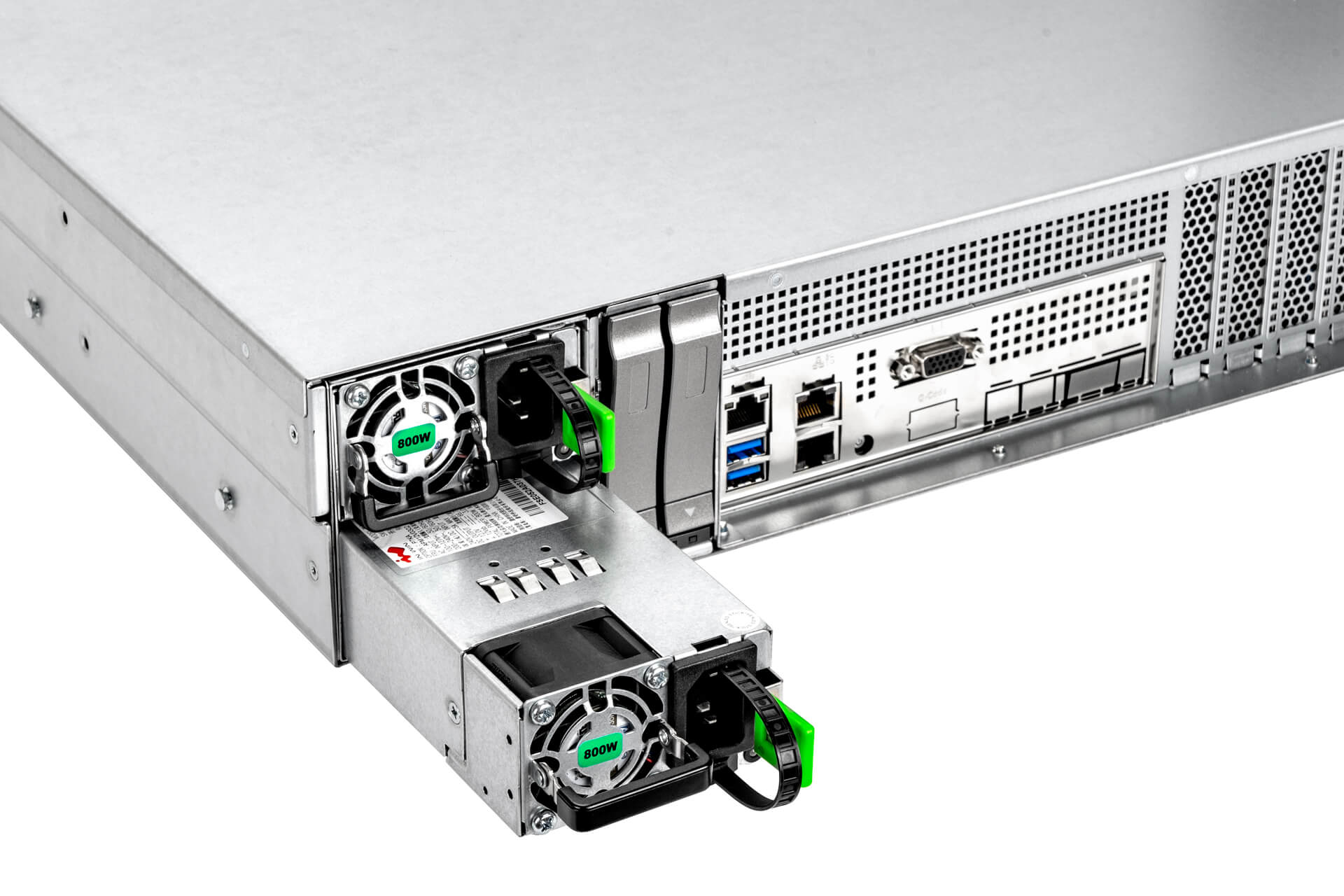

| Power Supply | 80 Plus Platinum 550W CRPS | Max.2 | |
| Power Supply | 80 Plus Platinum 800W CRPS | Max.2 | |
| Power Supply | 3RAMAP026501 | 80 Plus Platinum CRPS 1200W (AC input 100-127V, total power 800W max. / AC input 200-240V, total power 1200W max.) | Max.2 |
| Power Supply | 3RAMAP044300 | 80 Plus Platinum CRPS 1600W (AC input 100-127V, total power 1000W max. / AC input 200-240V, total power 1600W max.) | Max.2 |
| Power Supply | 3RAMAP042900 | CRPS PDB | 1 |

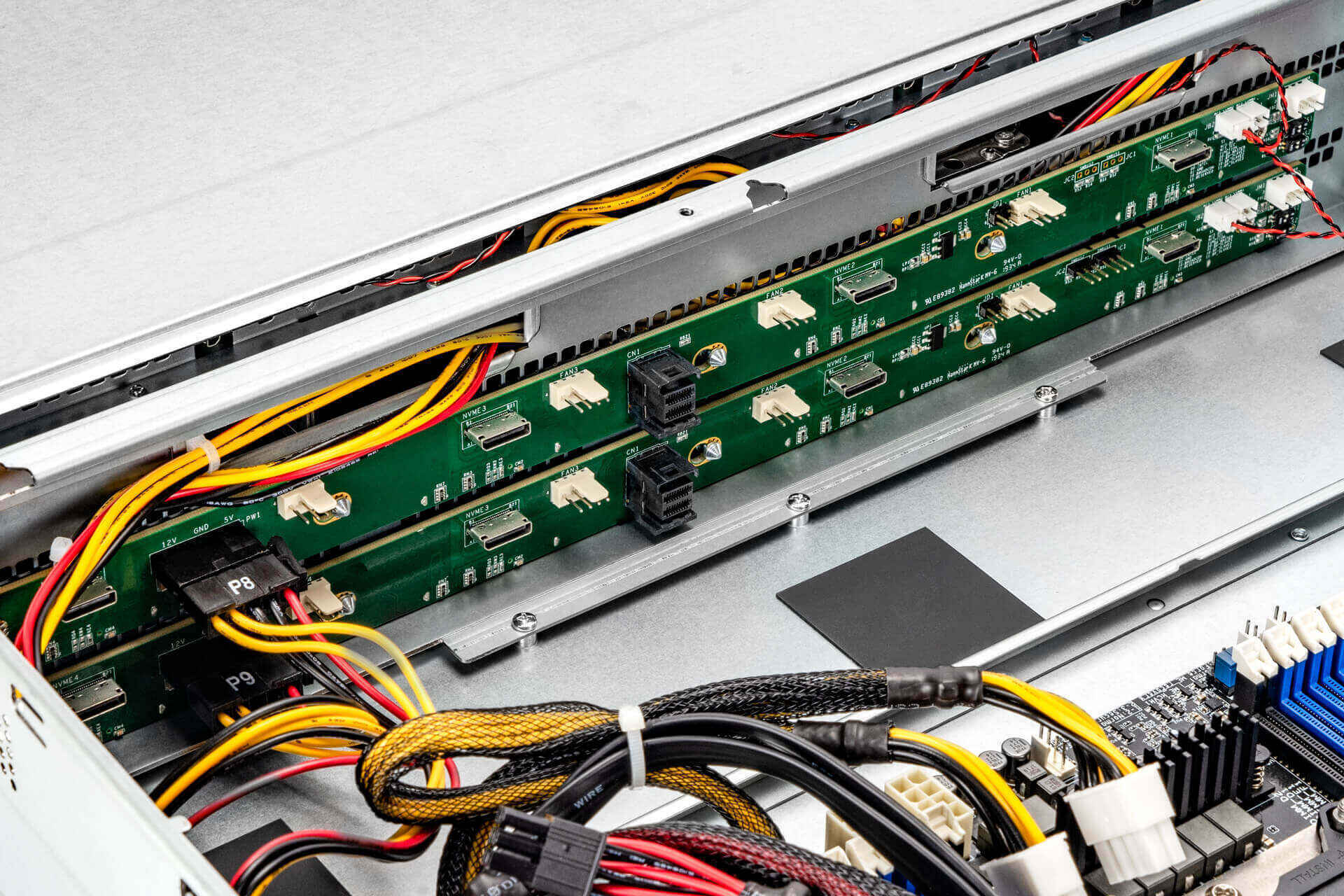

| Backplane | 2RBTVI004000 | Mini-SAS HD & OCuLink backplane | Max.2 |

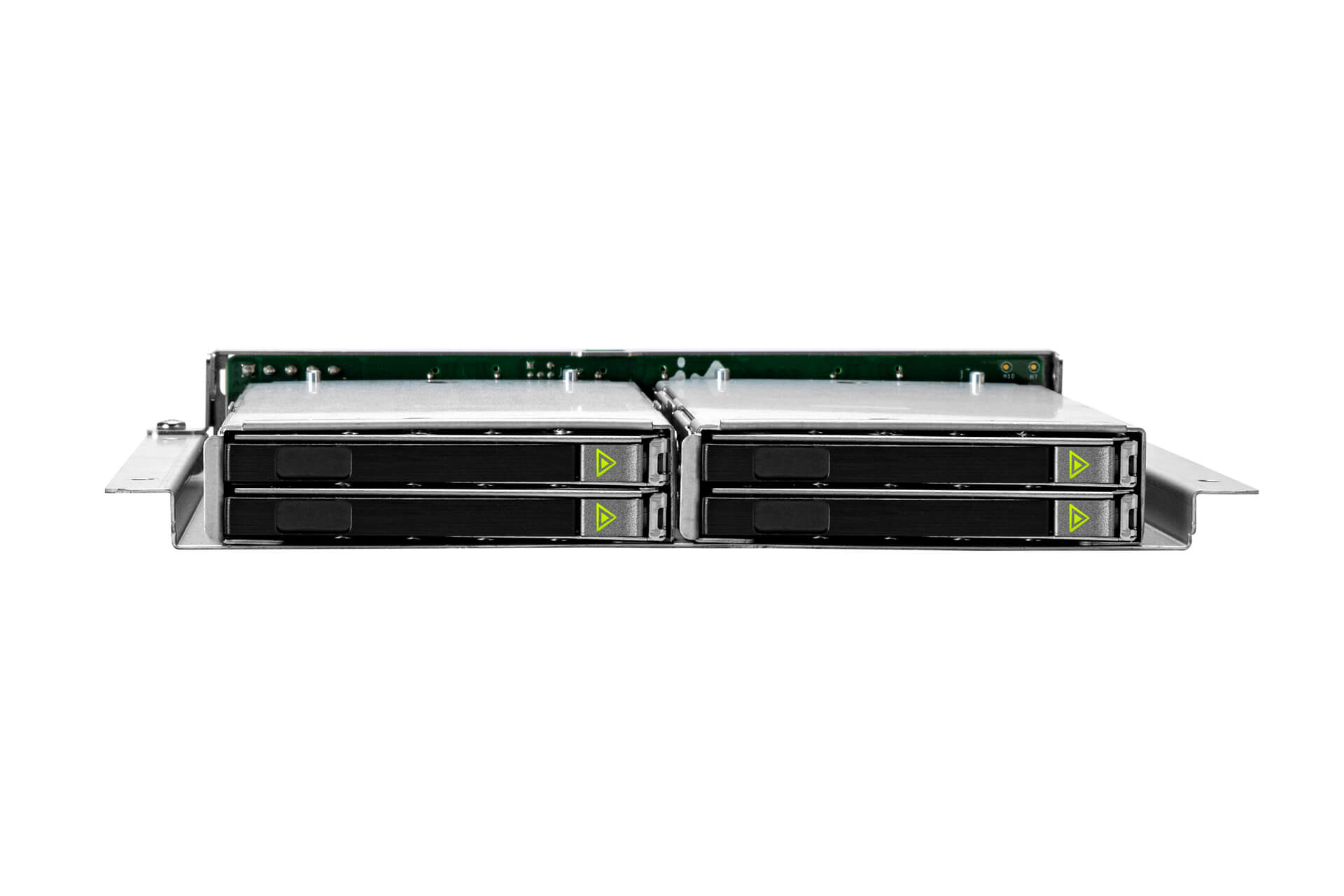

| Backplane Cage Kit | 2RAKID105401 | Top layer type 1 OCuLink backplane and 2.5" 15mm HDD trays x 2 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order. | Max.2 |
| Backplane Cage Kit | 2RAKID105201 | Top layer type 2 OCuLink backplane & 2.5" 7mm HDD trays x 4 (Gray color with NVMe symbol). Other tray combinations of transfer rates and colors are make-to-order. | Max.2 |

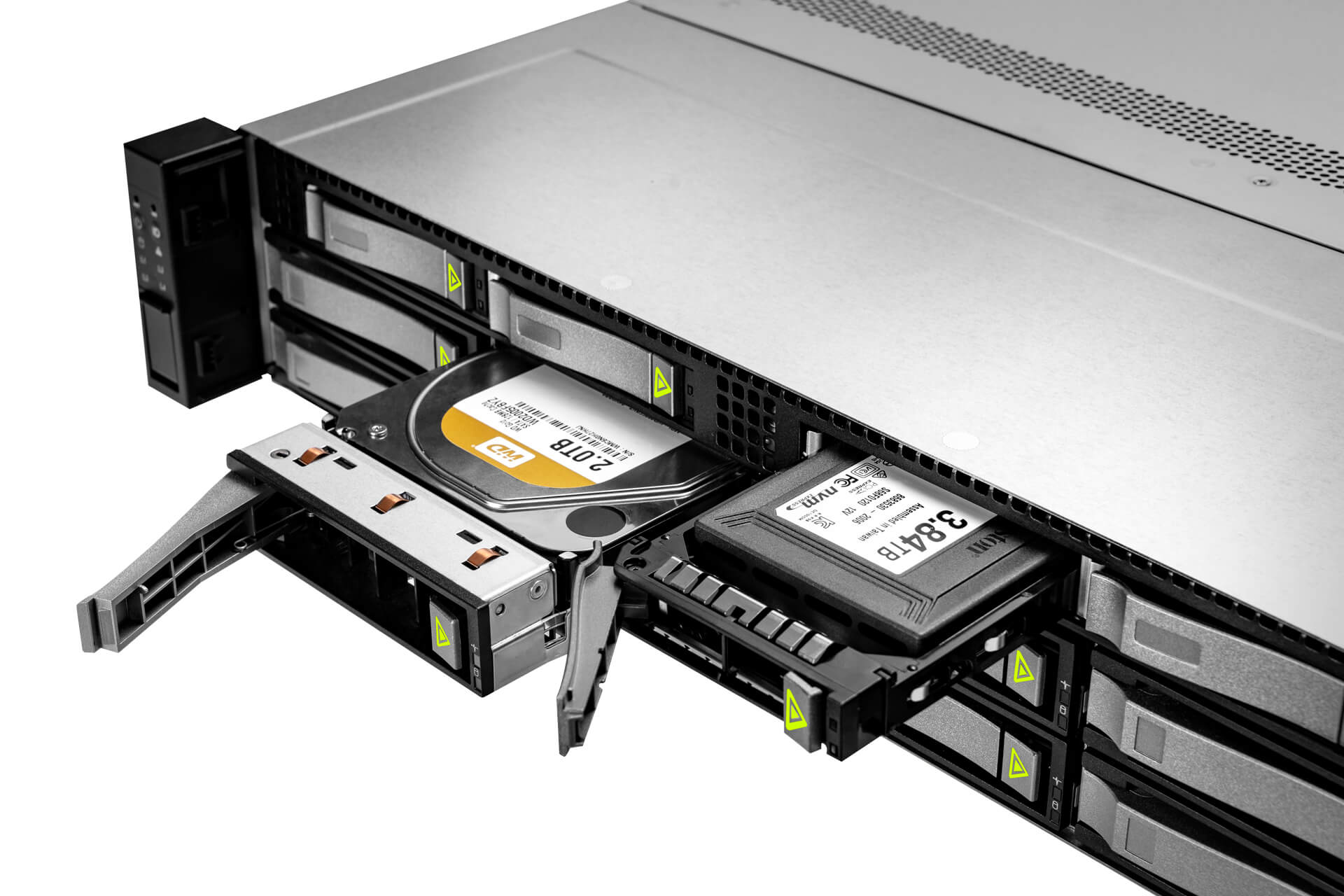

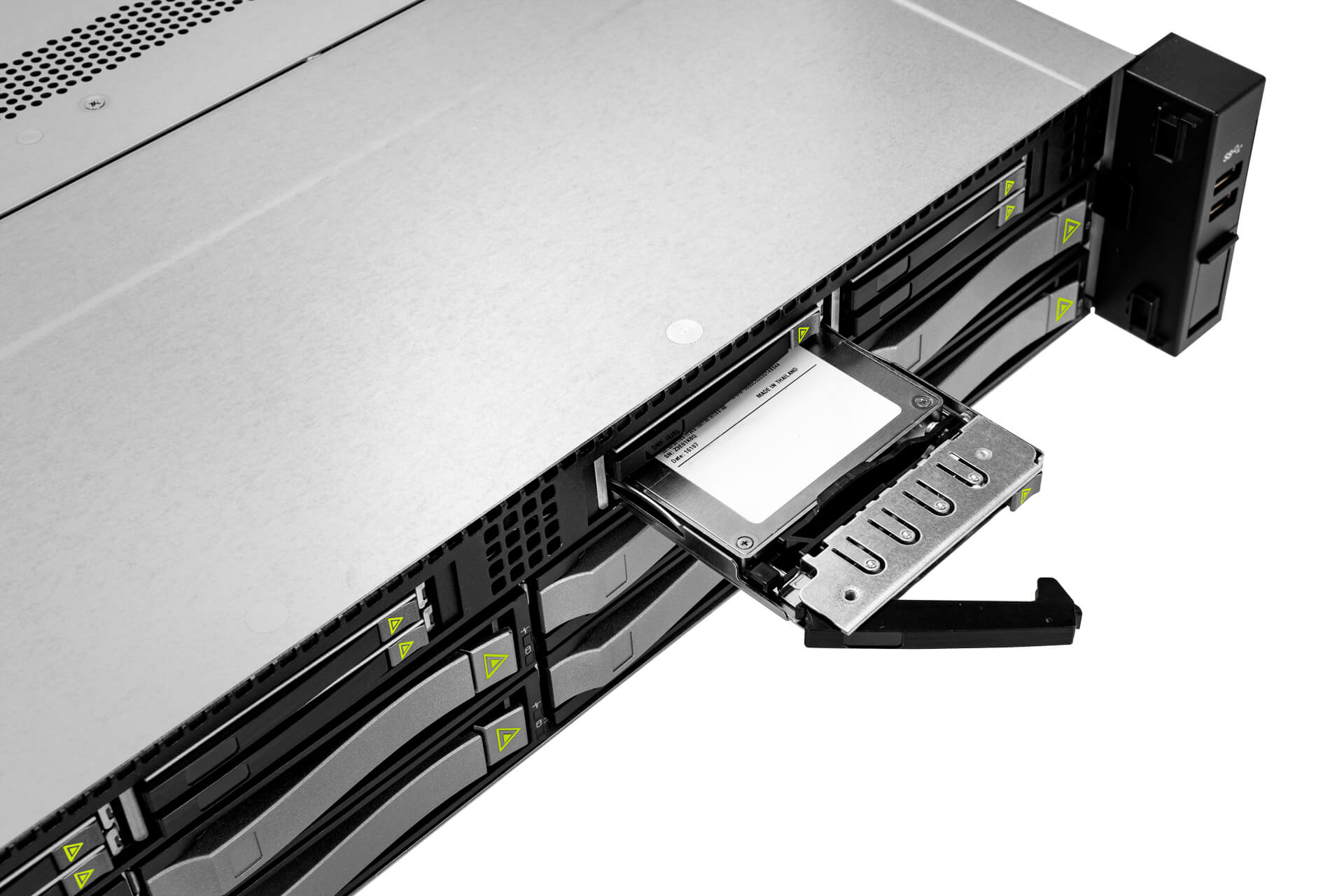

| HDD Tray | 2RAKPH057702 | 3.5"/2.5" (15mm) hot-swap HDD tray (Gray color) | Max.8 |
| HDD Tray | 2RAKPH038002 | 3.5"/2.5" (15mm) hot-swap HDD tray (Black color) | Max.8 |
| HDD Tray | 2RAKPH063701 | 3.5"/2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol) | Max.8 |
| HDD Tray | 2RAKPH038102 | 3.5"/2.5" (15mm) hot-swap HDD tray (Black color with NVMe symbol) | Max.8 |
| HDD Tray | 2RAKPH057800 | 2.5" (15mm) hot-swap HDD tray (Gray color) | Max.6 |
| HDD Tray | 2RAKPH038200 | 2.5" (15mm) hot-swap HDD tray (Gold color) | Max.6 |
| HDD Tray | 2RAKPH063800 | 2.5" (15mm) hot-swap HDD tray (Gray color with NVMe symbol) | Max.4 |
| HDD Tray | 2RAKPH038300 | 2.5" (15mm) hot-swap HDD tray (Gold color with NVMe symbol) | Max.4 |
| HDD Tray | 2RAKPH063400 | 2.5" (7mm) hot-swap tray (Gray color) | Max.8 |
| HDD Tray | 2RAKPH037800 | 2.5" (7mm) hot-swap tray (Black color) | Max.8 |
| HDD Tray | 2RAKPH063900 | 2.5" (7mm) hot-swap tray (Gray color with NVMe symbol) | Max.8 |
| HDD Tray | 2RAKPH037900 | 2.5" (7mm) hot-swap tray (Black color with NVMe symbol) | Max.8 |

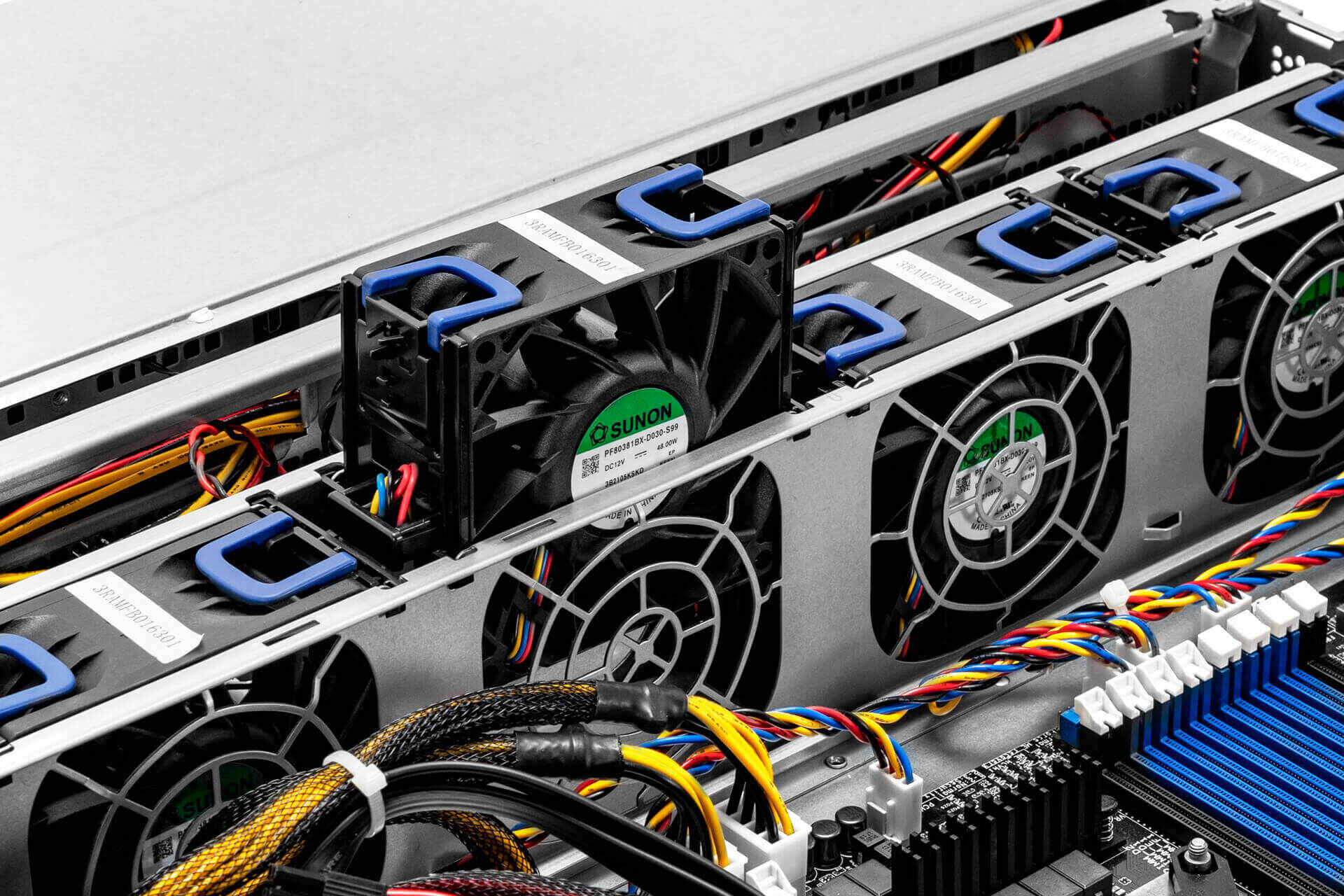

| Fan | 3RAMFB016301 | 80 x 38mm PWM hot-swap fan, 12000RPM, 6pin | Max. 4 |
| Fan | 2RAKFB011601 | 80 x 38mm PWM hot-swap fan & fan bracket, 12000RPM, 6pin | Max. 4 |

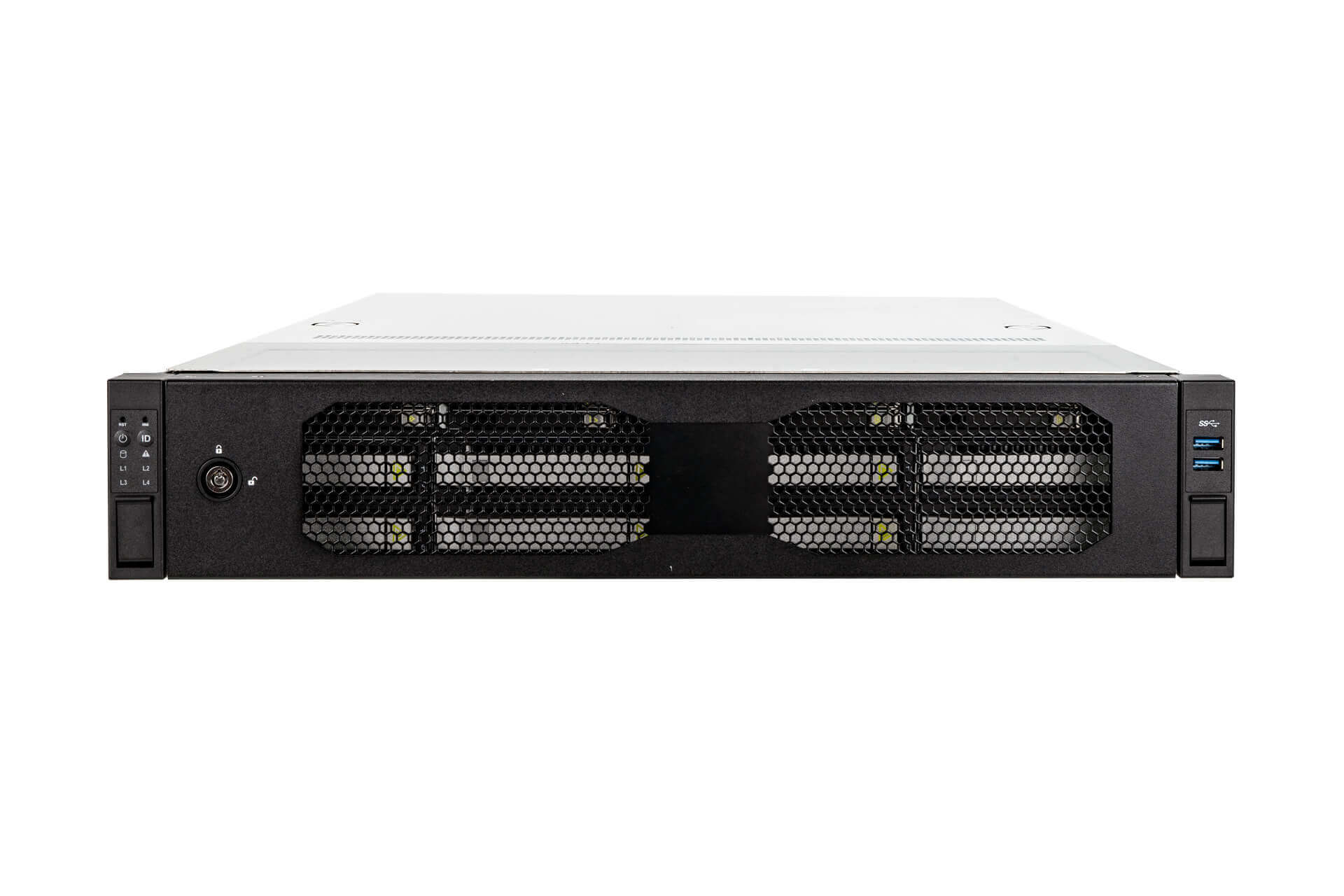

| Others | 2RAKIP022700 | Mesh front panel | 1 |
| Others | 3RAMRW011300 | Intrusion switch / 800mm | 1 |
