SSD Samsung PM893 240GB

• Samsung PM893 240GB – 2.5-inch SATA SSD for data centers
• Up to 550 MB/s read, 380 MB/s write, 98K/15K IOPS
• Optimized performance for mixed workloads with high QoS
• End-to-end data protection & power loss safeguard
• Samsung reliability with 5-year warranty for 24/7 operation

Product Details
Specifications

SSD Samsung PM893 240GB

Accelerate your business

Samsung Data center SSD PM893

Optimized for data center demands

Coming in a 2.5-inch form factor and 6 Gb/s SATA interface with storage capacities up to 7.68 TB, PM893 meets the demands of server storage systems, with added reliability for critical data thanks to end-to-end data protection.

*1GB=1 billion bytes by IDEMA. Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise).

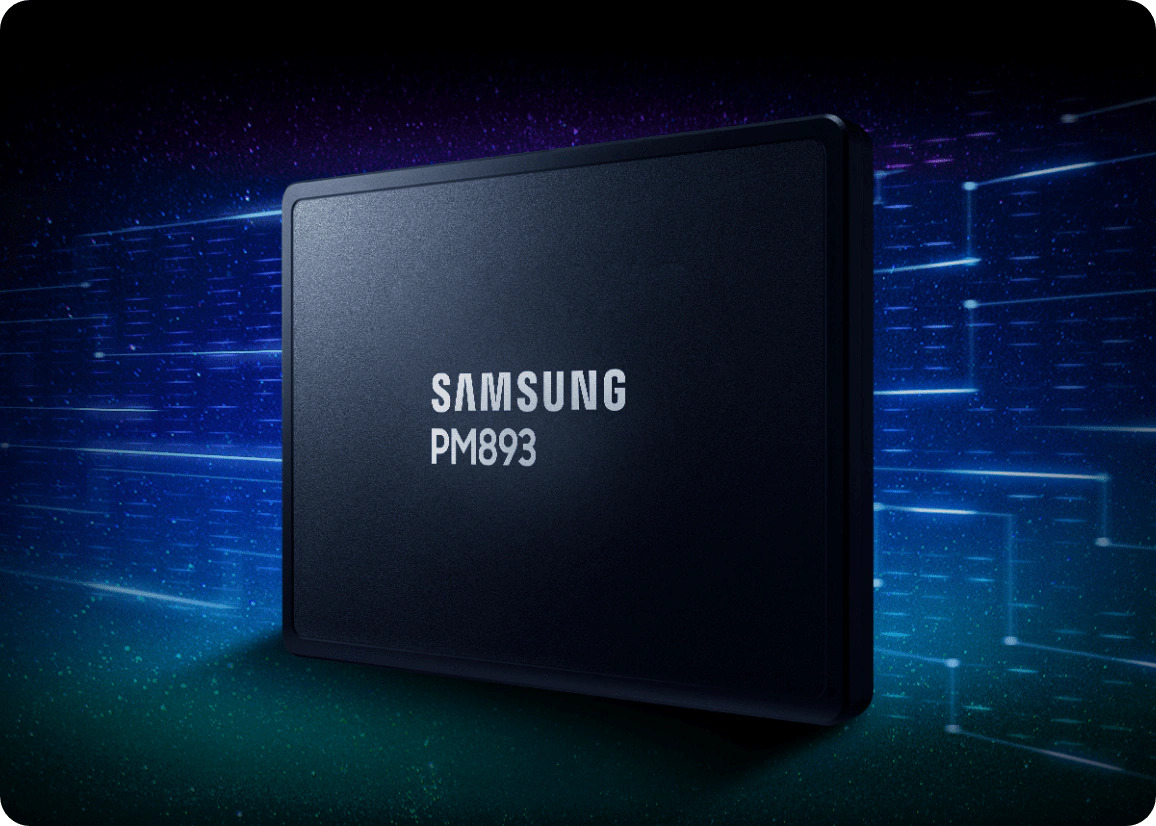

Samsung Data center SSD PM893 lies diagonally.

Performance fit for mixed workloads

PM893 is designed to achieve optimal performance with a high level of QoS (quality of service) under the SATA interface. The sequential read/write speeds of up to 550/520 MB/s and random read/write speeds of up to 98,000/30,000 IOPS are ideal for handling massive amounts of data.

Samsung Data center SSD PM893 offers sequential reads up to 550MB/s and sequential writes up to 520MB/s.

*Performance measured using FIO 2.7 in Linux RHEL 6.5 (Kernel 2.6.32) with queue depth 32, Z170 Intel SATA 6G port. Measurements are performed on whole LBA range. Write cache enabled. Performance may vary depending on capacity, use conditions, and environment.

Secure critical data

Data integrity is critical to data center SSD.

PM893 is safeguarded with end-to-end data protection to ensure consistency over the entire data transfer path and prevents data corruption in case of power failure with power loss protection.

Samsung Data center SSD PM893 provides end-to-end data protection safety and power loss protection and secures critical data.

Enhanced operations efficiency

Accomplish far more with less. Achieve higher efficiency and performance compared to legacy storage systems, with fewer servers, reduced power and cooling, and lower TCO*,all with efficient management from the advanced Samsung SSD Toolkit software.

*Based on internal test results, compared with 2.5-inch 7200 RPM SATA HDDs

Samsung Data center SSD PM893 enhanced operations efficiency through efficient management of Samsung SSD toolkit software.

Samsung reliability and quality

Experience the superior SSD quality and reliability of in-house production using Samsung built components. Empower your 24/7 business to run faster, more efficiently, and at reduced costs with world-class dependability* with a limited 5-year warranty or 1.0 DWPD**.

V-NAND, controller, DRAM, and firmware with Samsung Data center SSD PM893 provide excellent quality.

* When upgrading from HDDs.

** 5 years or DWPD (Drive Writes Per Day), whichever comes first.

Samsung PM893 parts

Part Number	Interface	Form Factor	Capacity	Sequential Read	Sequential Write	Random Read	Random Write	DWPD	Product Status
MZ7L31T9HBLT-00W07	SATA 6.0 Gbps	2.5 inch	1.92 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3240HCHQ-00W07	SATA 6.0 Gbps	2.5 inch	240 GB	550 MB/s	380 MB/s	98K IOPS	15K IOPS	1.0(5yrs)	Mass Production
MZ7L33T8HBLT-00W07	SATA 6.0 Gbps	2.5 inch	3.84 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3480HCHQ-00W07	SATA 6.0 Gbps	2.5 inch	480 GB	550 MB/s	520 MB/s	98K IOPS	29K IOPS	1.0(5yrs)	Mass Production
MZ7L37T6HBLA-00W07	SATA 6.0 Gbps	2.5 inch	7.68 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3960HCJR-00W07	SATA 6.0 Gbps	2.5 inch	960 GB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L31T9HBLT-00A07	SATA 6.0 Gbps	2.5 inch	1.92 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3240HCHQ-00A07	SATA 6.0 Gbps	2.5 inch	240 GB	550 MB/s	380 MB/s	98K IOPS	15K IOPS	1.0(5yrs)	Mass Production
MZ7L33T8HBLT-00A07	SATA 6.0 Gbps	2.5 inch	3.84 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3480HCHQ-00A07	SATA 6.0 Gbps	2.5 inch	480 GB	550 MB/s	520 MB/s	98K IOPS	29K IOPS	1.0(5yrs)	Mass Production
MZ7L37T6HBLA-00A07	SATA 6.0 Gbps	2.5 inch	7.68 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3960HCJR-00A07	SATA 6.0 Gbps	2.5 inch	960 GB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L31T9HBLT-00B7C	SATA 6.0 Gbps	2.5 inch	1.92 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3240HCHQ-00B7C	SATA 6.0 Gbps	2.5 inch	240 GB	550 MB/s	380 MB/s	98K IOPS	15K IOPS	1.0(5yrs)	Mass Production
MZ7L33T8HBLT-00B7C	SATA 6.0 Gbps	2.5 inch	3.84 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3480HCHQ-00B7C	SATA 6.0 Gbps	2.5 inch	480 GB	550 MB/s	520 MB/s	98K IOPS	29K IOPS	1.0(5yrs)	Mass Production
MZ7L37T6HBLA-00B7C	SATA 6.0 Gbps	2.5 inch	7.68 TB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production
MZ7L3960HCJR-00B7C	SATA 6.0 Gbps	2.5 inch	960 GB	550 MB/s	520 MB/s	98K IOPS	30K IOPS	1.0(5yrs)	Mass Production

SSD Samsung PM893 product

STT	PN	Spec
1	MZ7L3240HCHQ	SSD Samsung PM893 240GB
2	MZ7L3480HCHQ	SSD Samsung PM893 480GB
3	MZ7L3960HCJR	SSD Samsung PM893 960GB
4	MZ7L31T9HBLT	SSD Samsung PM893 1920GB
5	MZ7L33T8HBLT	SSD Samsung PM893 3840GB
6	MZ7L37T6HBLA	SSD Samsung PM893 7680GB
